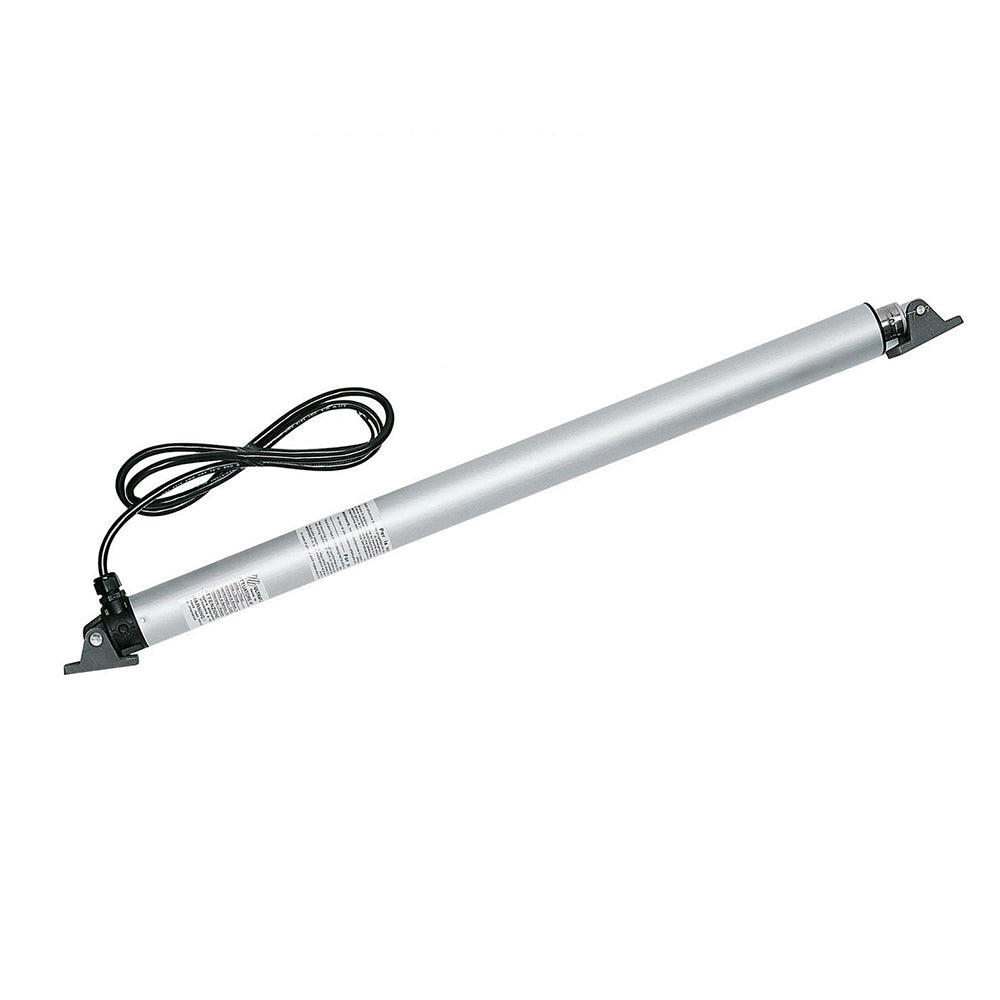

Uflex Mechanical Hatchlifter 12" STK Fast

The Uflex AV Mechanical Hatchlifter 12" STK Fast is the ideal solution for effortless and secure hatch management on your pleasure boat. Specifically engineered for marine applications, this electromechanical hatch lifter ensures smooth operation of heavy engine hatches, peak tanks, hatch beams, and more, enhancing the functionality and convenience of your vessel.

Reliable Performance for Marine Environments

The AV hatch lifters by Uflex are designed to withstand the harsh conditions of marine environments. With a simple switch activation, you can lift your hatch to any desired position, from fully closed to fully open. The internal self-locking mechanism securely maintains the hatch position, preventing accidental closures even in rough waters. Additionally, an emergency manual operation feature ensures you can safely handle the hatch during a power failure.

Easy Installation and Maintenance-Free Operation

Uflex AV hatch lifters require no maintenance and are straightforward to install, making them a hassle-free addition to your boat. Constructed from high-quality, corrosion-resistant materials, these hatch lifters offer long-lasting performance and durability, ensuring reliable operation season after season.

Key Features

• Modular Mounting Options: Customize your setup with single or twin-cylinder installations based on load requirements. Multiple actuators can be installed for more demanding applications.
• High Load Capacity:
  • Single Installation: 1200N (120 kg - 265 lbs)
  • Dual Installation: 2400N (240 kg - 529 lbs)
• Comprehensive Mounting Hardware: All necessary hardware is included for a seamless installation process.
• Emergency Manual Operation: Equipped with a stainless steel telescopic ram for manual hatch operation during power outages.
• Optional High-Performance Setup: Available without a manual emergency opening device for high-performance boats.
• Safety Features: Includes a circuit breaker to prevent system overload and electronic stops at the closed and fully open positions.
• Durable Protection: IP65 rated for excellent protection against water and dust ingress, ideal for marine use.
• Optimized Speed:
  • 25 mm/sec with no load
  • 17 mm/sec under maximum load
• Energy Efficient:
  • Single Installation: 10A at 12V, 5A at 24V
  • Dual Installation: 20A at 12V, 10A at 24V
• Certified Safety: AV 12VDC models are Ignition Protected and approved to UL1500 and ISO8846 standards.

Technical Specifications

Parameter	Specification
Voltage	12V DC
Stroke Length	300 mm (12")
Closed Actuator Length	677 mm (26.6")
External Diameter	48 mm (1.9")
