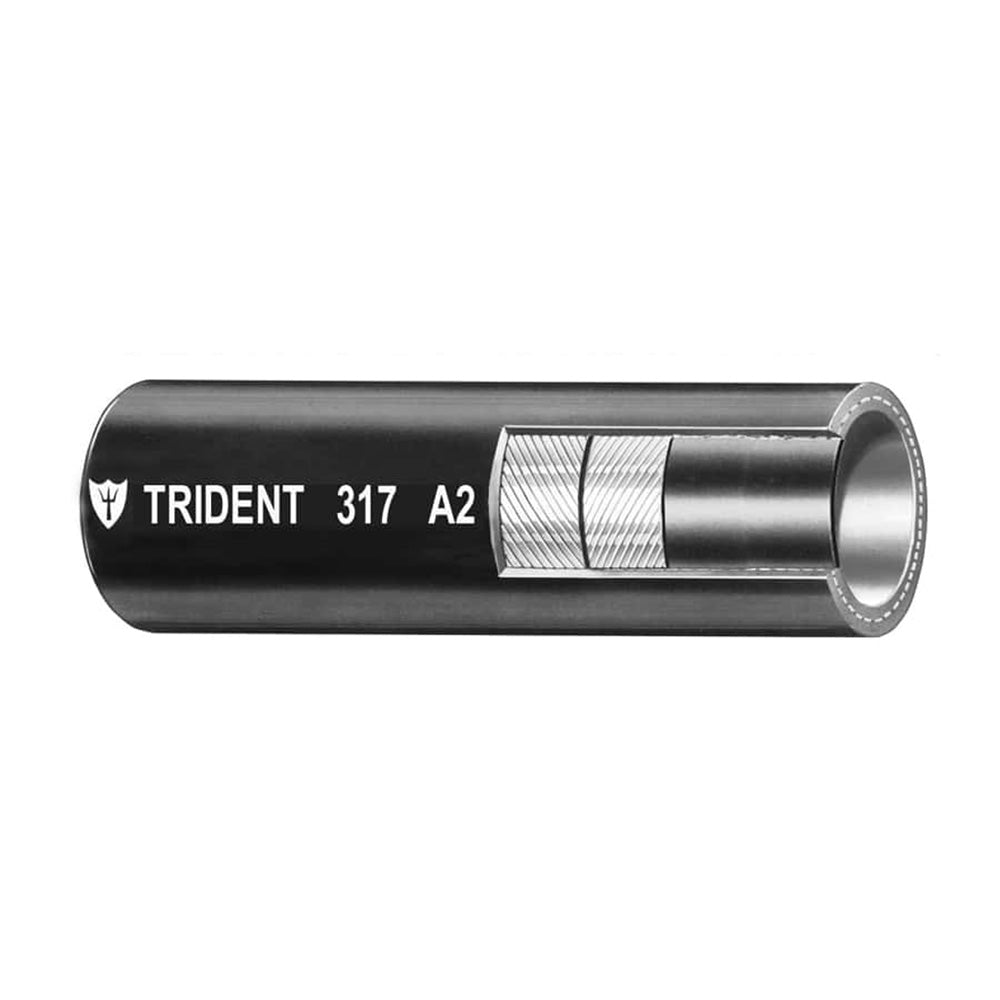

Trident Marine 5/8 A2 Fuel Vent Line Hose - Black - Sold by the Foot

Ensure reliable and safe fuel and venting systems on your vessel with the Trident 5/8” ID A2 Fuel & Vent Line Hose. Designed specifically for marine applications, this high-performance hose accommodates a variety of marine fuels, including gasoline, alcohol blends, diesel, and bio-diesel.

Key Features

• Available for purchase by the foot, allowing for customized lengths
• Crafted with a superior fuel, fire, and age-resistant formulation for enhanced durability
• Exceptional resistance to aging, fire, extreme temperatures, and ozone exposure
• Outstanding bend-ability for flexible installation in various marine environments

Applications

• Ideal for marine fuel venting and diesel distribution systems
• Compatible with all marine fuels, including gasoline, alcohol blends, diesel, and bio-diesel

Construction

• Tube: NBR (Nitrile Butadiene Rubber)
• Cover: NBR/PVC Blend for enhanced protection
• Reinforcement: Dual spiral polyester layers for added strength
• Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
• Length: Sold by the foot to match specific installation requirements

Specifications

Parameter	Measurement
Inner Diameter	0.625" / 15.9 mm
Outer Diameter	0.960" / 24.4 mm
Burst Pressure	200 psi / 1.38 MPa
Working Pressure	50 psi / 0.34 MPa
Bend Radius	3" / 76.2 mm
Weight	25.84 lb per 100ft / 11.72 kg per m

Certifications: The #317 series hose exceeds industry standards including ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A2, and is NMMA Type Accepted & CE certified, ensuring top-notch quality and safety for your marine applications.
