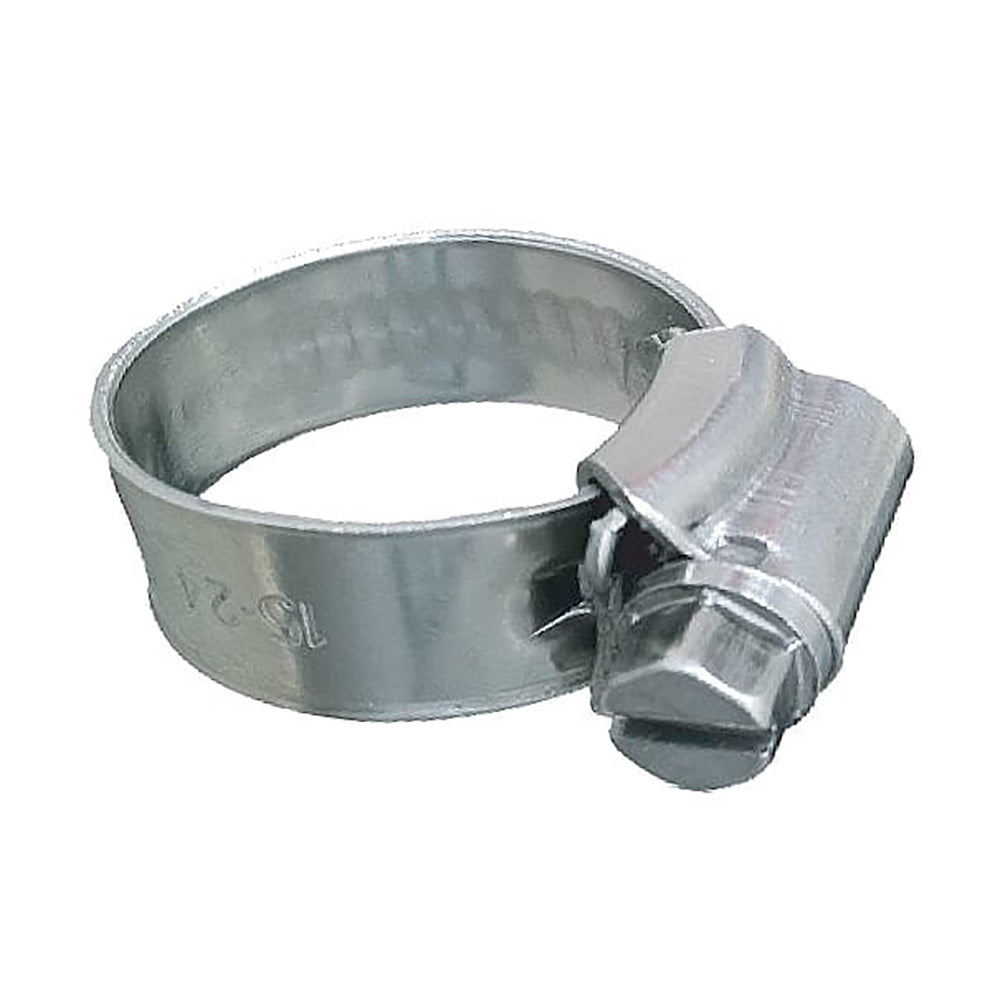

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (5/16" 9/16") Clamping Range - 10-Pack - SAE Size 3

Ensure the integrity and performance of your marine plumbing systems with our 316 Stainless Steel Non-Perforated Worm Gear Hose Clamps. Crafted from premium AISI 316 stainless steel, these clamps offer exceptional corrosion resistance, making them ideal for the harsh, saltwater environments encountered in boating applications. Their non-perforated, smooth inner design eliminates hose wear, while the robust worm gear mechanism delivers a high clamping force to maintain secure and leak-free hose connections under demanding conditions.

Key Features

• Constructed from high-grade AISI 316 stainless steel for superior corrosion resistance in marine environments
• Non-perforated, smooth inner surface with rolled edges to prevent hose damage and increase clamping force
• Compact, one-piece housing design offering one of the highest clamping force ratings among worm gear clamps
• 7mm screw head for precise and effortless tightening
• High tensile strength ensures long service life and reliable performance for various marine hose applications

Recommendations for Marine Applications

• Accurately measure the hose outer diameter (O.D.) before selecting the appropriate clamp size to ensure a proper fit
• For critical connections, install double clamps on each hose end to provide extra security and prevent leaks
• Regularly inspect clamps for signs of wear or corrosion to maintain optimal performance

Construction Details

• Band & Housing: 316 Stainless Steel, 9.7 mm wide band, 0.8 mm thick
• Screw Drive: 316 Stainless Steel, 7.0 mm screw head for durable and reliable tightening

Technical Specifications

Property	Details
SAE Size	3
Hose Inner Diameter	3/16" – 1/4" (0.187" – 0.250")
Clamping Range	5/16" – 9/16" (8 mm – 14 mm)
Recommended Torque	25-35 inch lbs

Download the Quick Guide (PDF)
