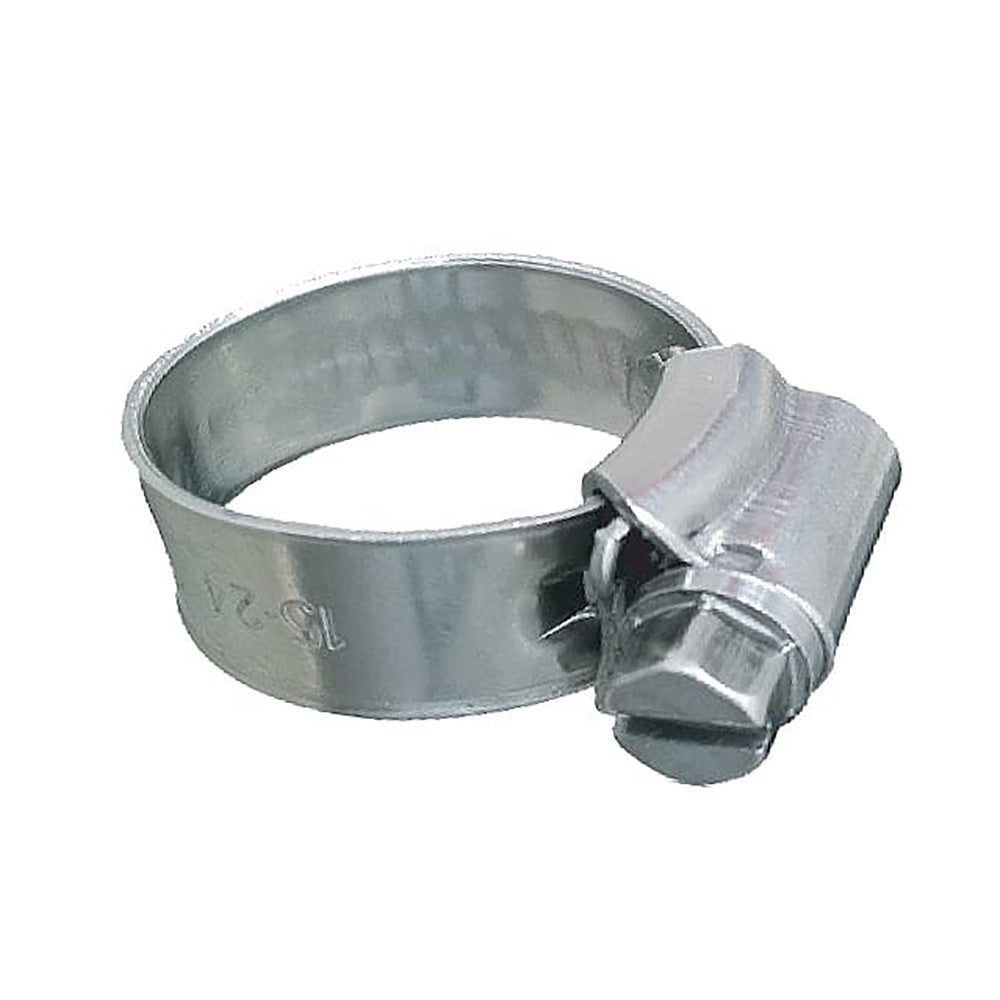

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 11/32"-25/32" Clamping Range - 10-Pack - SAE Size 6

Ensure the utmost reliability and performance for your marine and boating applications with our premium 316 SS Non-Perforated Worm Gear Hose Clamps. Designed specifically for the harsh marine environment, these clamps provide superior clamping force and durability, ensuring secure hose connections that withstand the demands of sea voyages.

Key Features

• Marine-Grade Material: Crafted from high-quality AISI 316 stainless steel, offering exceptional resistance to corrosion and marine conditions.
• Non-Perforated Design: The smooth interior band minimizes hose damage while maximizing clamping efficiency.
• High Clamping Force: The compact one-piece 14mm (0.55”) wide housing provides one of the highest clamping force ratings available for worm gear style clamps.
• Durable Construction: The 9.7 mm (0.382”) wide band with rolled edges ensures a secure and lasting fit.
• High Tensile Strength: Ensures long-lasting hold even under extreme marine conditions.

Benefits for Marine Applications

Our 316 SS Worm Gear Hose Clamps are perfect for a wide range of marine applications, including:

• Engine cooling systems
• Fuel lines
• Water hoses
• Transmission lines
• High-pressure hose connections

Recommended Usage

• Accurate Sizing: Measure the hose outer diameter before selecting the appropriate clamp size to ensure a proper fit and secure connection.
• Enhanced Security: For critical applications, such as fuel and engine systems, consider using double clamps on each hose end to enhance reliability and safety.

Construction Details

Component	Material	Dimensions
Band & Housing	316 Stainless Steel	9.7 mm wide, 0.8 mm thick
Screw Drive	316 Stainless Steel	7.0 mm screw head

Technical Specifications

Specification	Details
SAE Size	6
Hose Inner Diameter	5/16" - 3/8"
Clamping Range	11/32" – 25/32" / 13-20 mm
Recommended Torque	25-35 inch-lbs

Download the Quick Guide (PDF)
