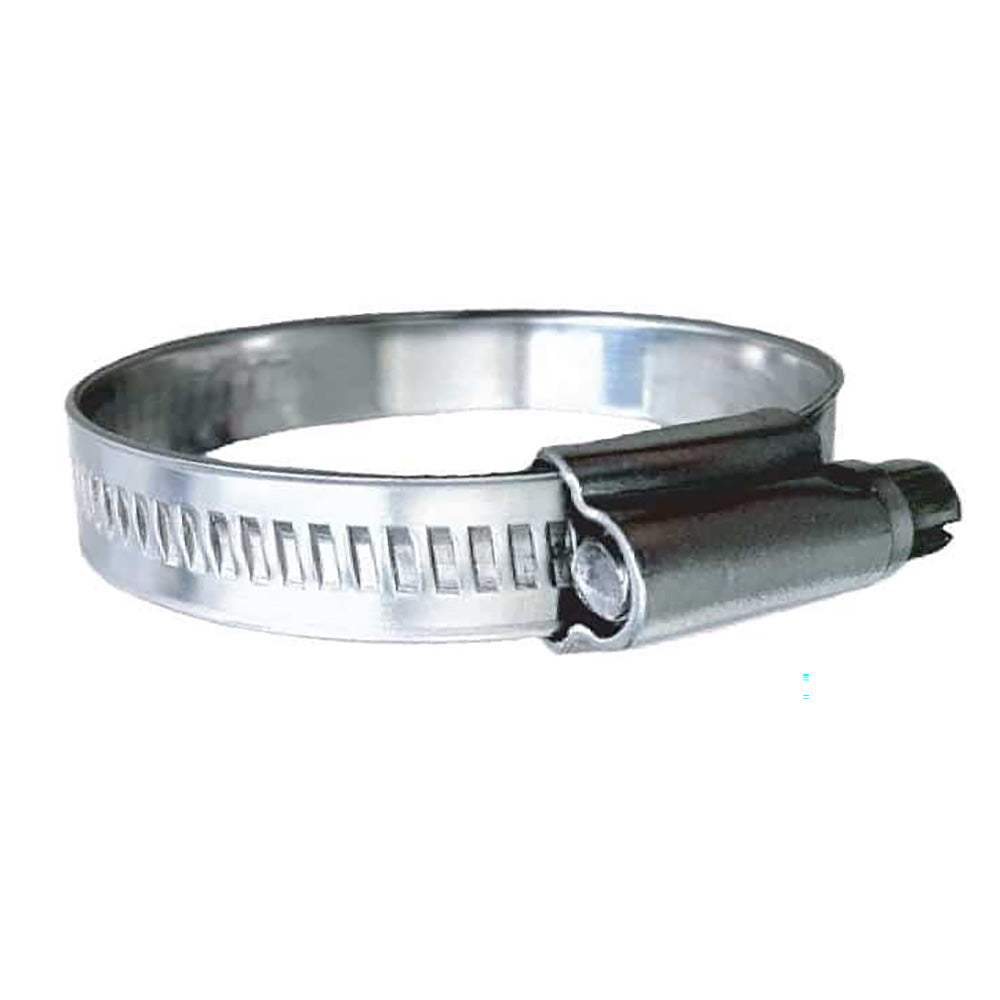

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-1/2" - 2") Clamping Range - 10-Pack - SAE Size 24

Ensure secure and reliable hose connections on your vessel with our Premium Marine-Grade 316 Stainless Steel Non-Perforated Worm Gear Hose Clamps. Designed specifically for the demanding marine environment, these clamps offer exceptional corrosion resistance and high tensile strength, making them ideal for a wide range of boating and marine applications.

Features

• Durable Screw Head: Equipped with a 7mm screw head for precise tightening and secure fastening.
• Extended Service Life: Engineered for longevity, providing safety and reliability for various hose applications and connections in marine settings.
• High Clamping Force: The compact, one-piece housing delivers one of the highest clamping force ratings available in worm gear clamps, ensuring a tight and stable grip.
• Non-Perforated Design: Smooth interior with rolled edges prevents hose damage while maintaining maximum clamping pressure.

Recommendations

• Accurate Sizing: Measure the hose outer diameter (O.D.) before selecting the appropriate clamp size to ensure a proper fit.
• Double Clamping for Critical Applications: For critical or high-stress connections, use two clamps on each end of the hose to enhance security and prevent leaks.
• Upgrade for Larger Hoses: Consider our #720 Series Wide Band 316 SS T-Bolt Clamps for hoses with larger inner diameters, such as exhaust hoses, to accommodate increased flow and pressure requirements.

Construction

• Band & Housing: Crafted from 316 Stainless Steel with an 11.7 mm wide band and a thickness of 0.9mm, ensuring superior strength and resistance to marine corrosion.
• Screw Drive: Features a robust 7.0 mm screw head made from 316 Stainless Steel for reliable and long-lasting performance.

Specifications

SAE Size	24
Hose Inner Diameter	1-5/16" - 1-3/8"
Clamping Range	1-1/2" - 2" / 38-50 mm
Recommended Torque	35-45 Inch lbs

Download Quick Guide (PDF)
