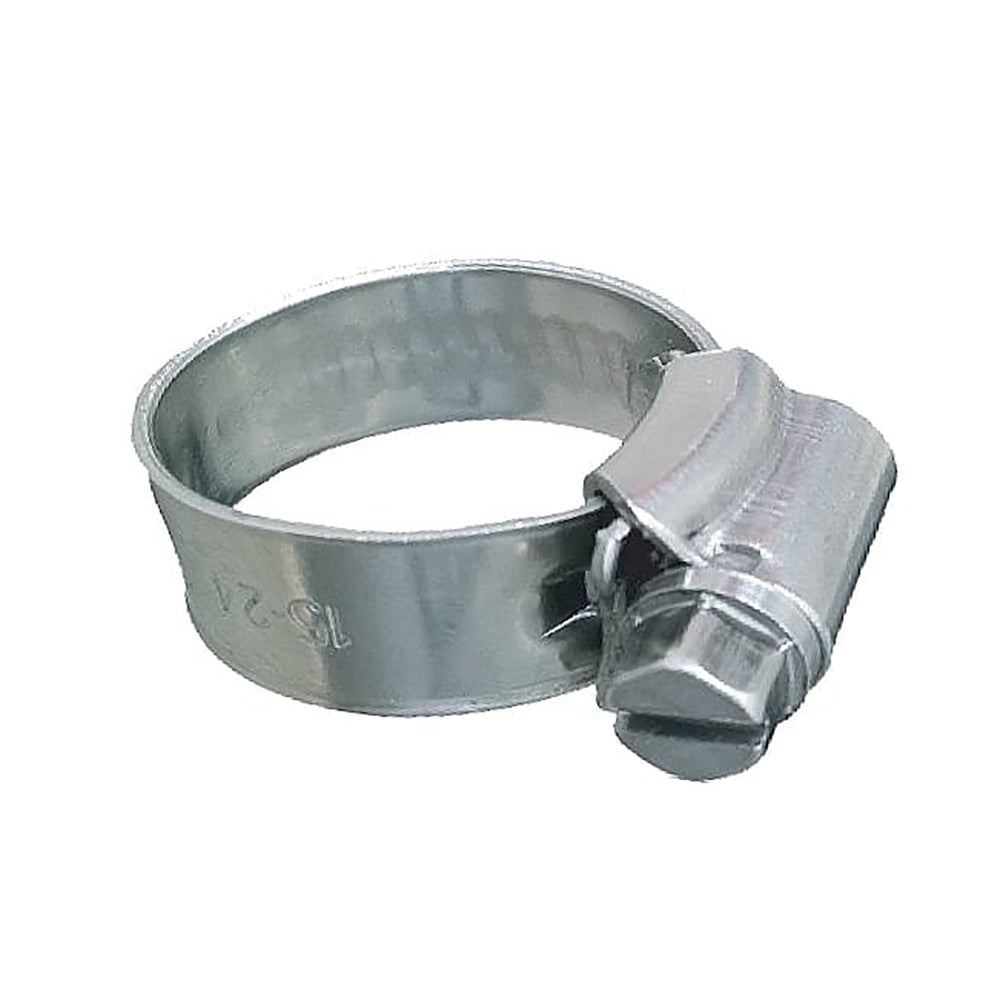

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (1-1/16" 1-1/2") Clamping Range - 10-Pack - SAE Size 16

Enhance the reliability of your marine and boating connections with our premium 316 Stainless Steel Non-Perforated Worm Gear Hose Clamps. Designed specifically for harsh marine environments, these high-strength clamps ensure secure and damage-free hose fittings, providing the ultimate clamping force for your critical applications.

Key Features

• Constructed from all AISI 316 Stainless Steel for superior corrosion resistance and high tensile strength.
• Non-Perforated, smooth interior with rounded edges to prevent hose damage while maintaining increased clamping force.
• Compact, one-piece housing with a 14mm (0.55”) width offering one of the highest clamping force ratings in worm gear clamps.
• 7mm screw head ensures secure tightening and longevity in demanding marine settings.
• 9.7 mm (0.382”) wide band with a thickness of 0.8mm delivers robust performance without bulk.

Performance and Durability

Our 316 SS Non-Perforated Worm Gear Hose Clamps are built to withstand the rigorous demands of marine environments. The high-grade stainless steel construction resists corrosion from saltwater and other harsh elements, ensuring a long service life. The non-perforated design minimizes the risk of hose abrasion, while the high clamping force provides secure connections that stand up to vibrations and dynamic movements typical in boating applications.

Recommendations for Optimal Use

• Proper Sizing: Always measure the outer diameter (O.D.) of your hose before selecting the clamp size to ensure a perfect fit and optimal performance.
• Double Clamping: For critical connections, use two clamps on each hose end to provide additional security and prevent leaks or disconnections.

Construction Details

Component	Material	Dimensions
Band & Housing	316 Stainless Steel	9.7 mm wide band – 0.8mm thick
Screw Drive	316 Stainless Steel	7.0 mm screw head

Technical Specifications

Specification	Details
SAE Size	16
Hose Inner Diameter	7/8" – 1" (inch)
Clamping Range	1-1/16" – 1-1/2" (inch) / 26-38 mm
Recommended Torque	35-45 inch lbs

For detailed installation instructions, download our Quick Guide (PDF).
