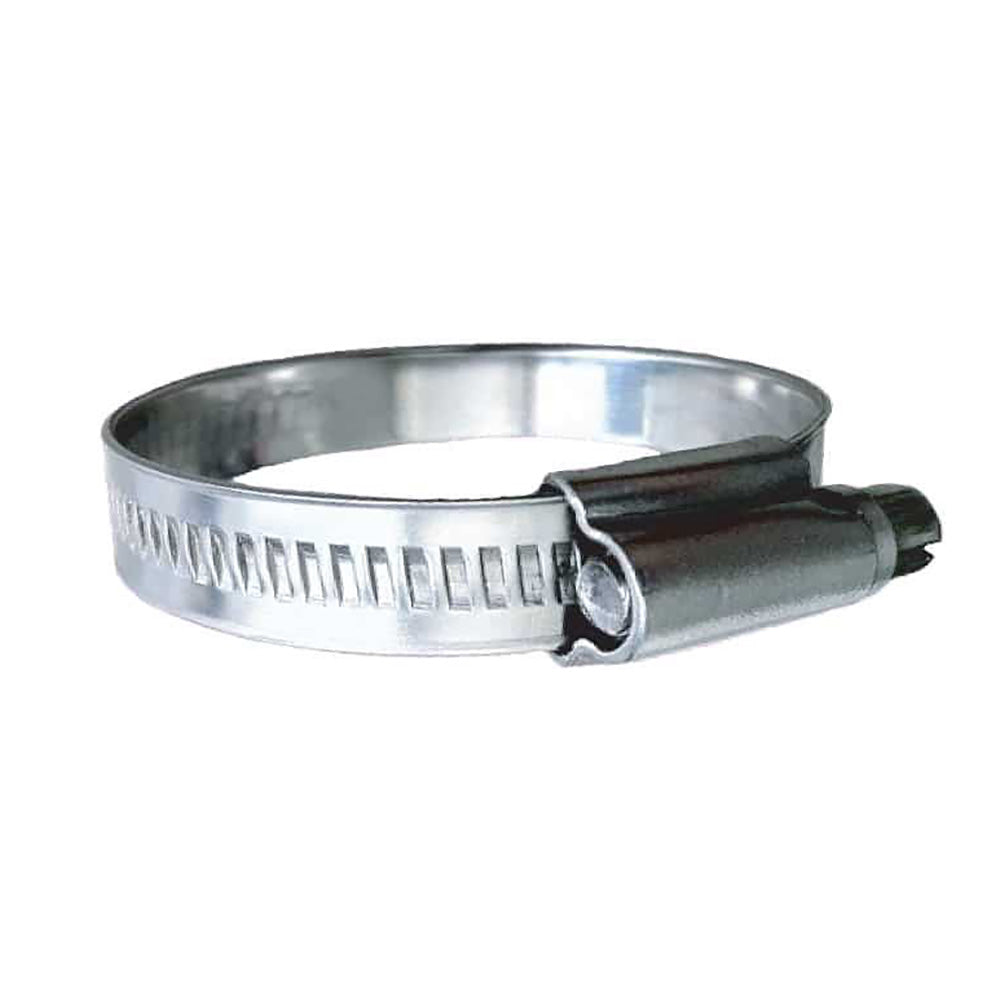

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (7/8" 1-1/4") Clamping Range - 10-Pack - SAE Size 12

Ensure reliable and secure hose connections on your marine vessels with our premium 316 SS Non-Perforated Worm Gear Hose Clamps. Designed specifically for the demanding marine environment, these clamps offer exceptional strength and durability to withstand harsh conditions, preventing hose damage and ensuring optimal performance.

Product Features

• Constructed from high-grade AISI 316 stainless steel for superior corrosion resistance and high tensile strength.
• Non-perforated, smooth inner band with rolled edges to prevent hose abrasion and enhance clamping efficiency.
• Compact, one-piece housing design measuring 16mm (0.63”) wide, delivering one of the highest clamping force ratings available.
• 11.7 mm (0.46”) wide band with a thickness of 0.9mm, ensuring robust performance in marine applications.
• Equipped with a 7mm screw head made from 316 stainless steel for long-lasting reliability.

Specifications

SAE Size	12
Hose Inner Diameter	5/8" – 1-1/8" (inches)
Clamping Range	7/8" – 1-1/4" (22-32 mm)
Recommended Torque	35-45 inch lbs

Benefits for Marine Applications

• Durability: Made from marine-grade stainless steel, these clamps resist saltwater corrosion, ensuring longevity even in the harshest marine environments.
• Enhanced Clamping Force: The high-strength design provides a secure hold, reducing the risk of hose leaks and ensuring stable connections for critical boat systems.
• Hose Protection: The smooth, non-perforated inner band minimizes hose wear and tear, extending the life of your hoses.
• Easy Installation: Featuring a user-friendly worm gear mechanism that allows for quick and precise tightening.

Installation Recommendations

1. Measure Accurately: Always measure the outer diameter (O.D.) of your hose before selecting the clamp size to ensure a proper fit.
2. Double Clamping: For critical connections, use two clamps on each end of the hose to enhance security and prevent leaks.
3. Consider Larger Clamps: For larger inner diameter hoses, such as exhaust hoses, consider using our #720 Series wide band 316 SS T-Bolt Clamps for optimal performance.

Construction Details

Component	Material	Dimensions
Band & Housing	316 Stainless Steel	11.7 mm wide band – 0.9mm thick
Screw Drive	316 Stainless Steel	7.0 mm screw head

Additional Resources

For detailed installation instructions and usage guidelines, please refer to our Quick Guide (PDF).
