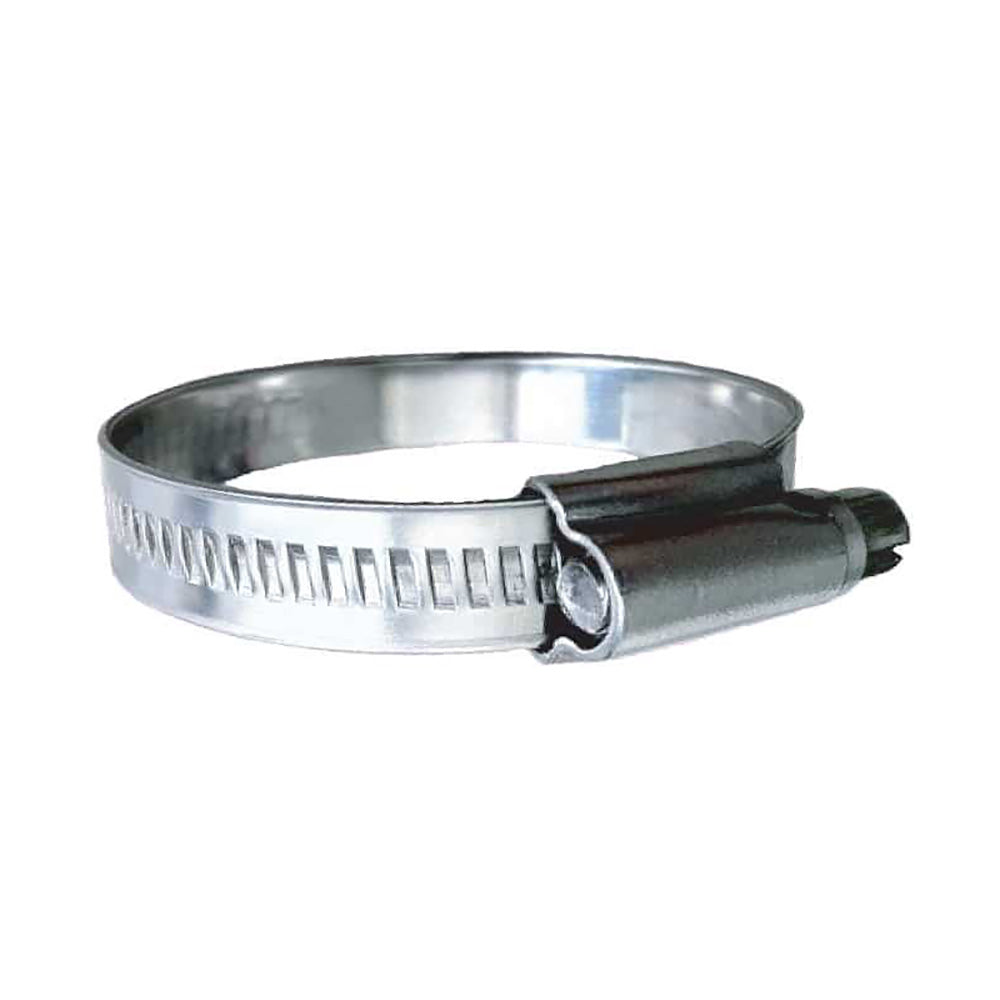

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (3/4" 1-1/8") Clamping Range - 10-Pack - SAE Size 10

Engineered specifically for the marine and boating industries, the 316 SS Non-Perforated Worm Gear Hose Clamp delivers unmatched durability and performance. Crafted from premium AISI 316 stainless steel, this hose clamp resists corrosion and ensures a secure, long-lasting hold in the harshest marine environments. Its smooth, non-perforated interior design prevents hose damage while providing a powerful clamping force essential for reliable marine connections.

Key Features

• Constructed from high-grade AISI 316 stainless steel for superior corrosion resistance
• Non-perforated, smooth interior eliminates hose damage and ensures a secure grip
• Robust worm gear mechanism delivers exceptional clamping force
• Compact, one-piece housing design offers maximum strength and durability
• 7mm screw head facilitates easy installation and adjustments
• Designed for long service life in demanding marine applications

Specifications

SAE Size	10
Hose Inner Diameter	1/2" – 5/8" (inches)
Clamping Range	3/4" – 1-1/8" / 19-28 mm
Recommended Torque	35-45 inch-lbs
Band Width	11.7 mm (0.46")
Housing Width	16 mm (0.63")
Band Thickness	0.9 mm

Installation Recommendations

• Accurately measure the hose’s outer diameter (O.D.) before selecting the clamp size to ensure a proper fit
• For critical marine applications, use double clamps on each hose end to enhance security and reliability
• For larger inner diameter hoses, such as exhaust hoses, consider our #720 Series wide band 316 SS T-Bolt Clamps for optimal performance

Construction Details

• Band & Housing: Made from 316 stainless steel with an 11.7 mm wide band and 0.9 mm thickness for enhanced strength
• Screw Drive: Features a 7.0 mm stainless steel screw head for reliable and easy adjustments

Download Quick Guide (PDF)
