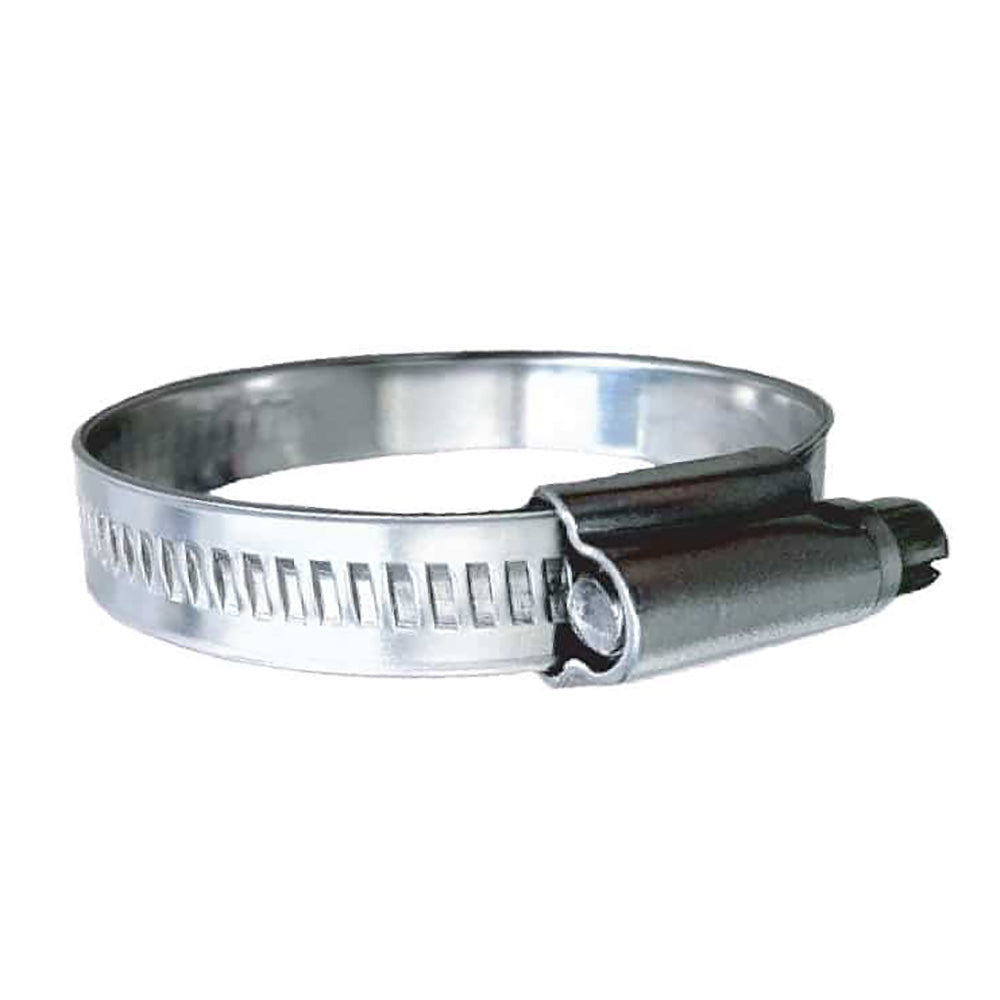

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-3/4" 2-1/4") Clamping Range - 10-Pack - SAE Size 28

Ensure reliable and secure hose connections on your vessel with our premium 316 Stainless Steel Non-Perforated Worm Gear Hose Clamps. Designed specifically for marine and boating applications, these clamps offer exceptional durability and clamping force, making them ideal for a variety of hose connections on your boat.

Why Choose Our 316 SS Non-Perforated Worm Gear Hose Clamps?

Crafted from high-quality AISI 316 stainless steel, these marine-grade clamps are built to withstand corrosive marine environments. The non-perforated, smooth interior and rolled edges prevent hose damage while providing a strong, consistent clamping force. The compact, one-piece housing enhances durability and ensures one of the highest clamping force ratings among worm gear clamps.

Key Features

• High-Strength Material: Made from AISI 316 stainless steel for superior corrosion resistance and longevity in marine settings.
• Non-Perforated Band: 11.7 mm (0.46”) wide band with a smooth interior to prevent hose abrasion and ensure a secure fit.
• Robust Clamping Force: 16mm (0.63”) wide housing provides maximum clamping force, ideal for critical hose connections.
• Screw Specifications: Features a 7mm stainless steel screw head for precise tightening.

Product Specifications

Attribute	Details
SAE Size	28
Hose Inner Diameter	1-1/2" - 1-5/8"
Clamping Range	1-3/4" – 2-1/4" (44-56 mm)
Recommended Torque	45-60 inch lbs
Band Width	11.7 mm (0.46")
Band Thickness	0.9 mm
Screw Head Diameter	7.0 mm
Pack Quantity	10-Pack

Recommendations for Marine Use

• Accurate Sizing: Measure the hose outer diameter (O.D.) before selecting the clamp size to ensure a proper fit.
• Enhanced Security: Use double clamps on each hose end for critical applications to prevent leaks and maintain integrity.
• Alternative Options: Consider our #720 Series wide band 316 SS T-Bolt Clamps for larger inner diameter hoses, such as exhaust hoses.

Durable Construction for Marine Environments

• Band & Housing: Constructed from 316 stainless steel, the 11.7 mm wide band is 0.9mm thick, providing strength and resistance to corrosion.
• Screw Drive: Features a 7.0 mm 316 stainless steel screw head for reliable and corrosion-resistant tightening mechanisms.

Download the Quick Guide (PDF)
