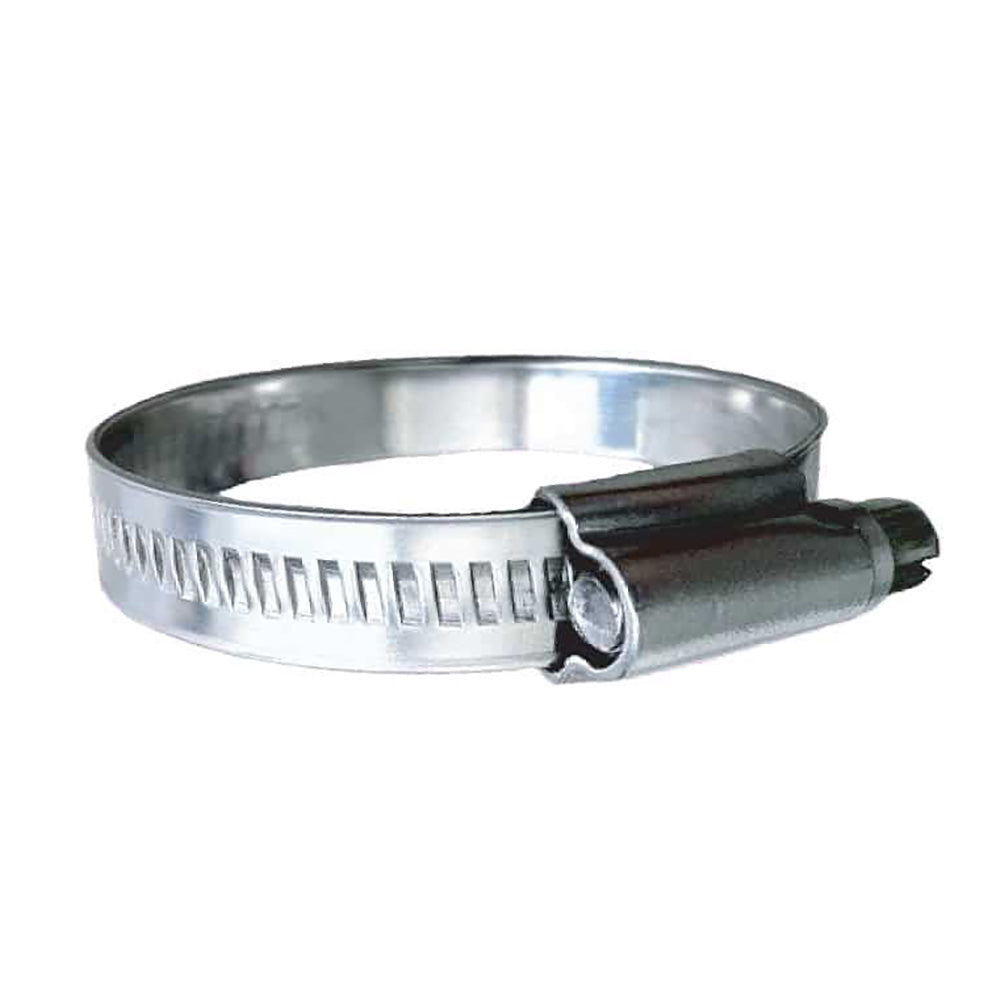

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-1/4" 1-3/4") Clamping Range - 10-Pack - SAE Size 20
Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-1/4" 1-3/4") Clamping Range - 10-Pack - SAE Size 20 is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Ensure reliable and secure hose connections on your vessel with our premium 316 Stainless Steel Non-Perforated Worm Gear Hose Clamps. Designed specifically for marine and boating applications, these clamps offer exceptional durability and superior clamping force to withstand the harsh marine environment.
Key Features
- High-Quality Material: Made from all AISI 316 stainless steel, these clamps deliver outstanding resistance to corrosion, ideal for saltwater and marine use.
- Non-Perforated Design: The smooth, non-perforated inside surface prevents hose damage while providing an increased clamping force for secure connections.
- Robust Construction: Featuring an 11.7 mm (0.46”) wide band with rolled edges and a compact 16mm (0.63”) wide housing, these one-piece clamps offer one of the highest clamping force ratings available.
- Precision Engineering: The 7mm screw head ensures easy installation and adjustment, enhancing the overall functionality and ease of use.
- Extended Service Life: Engineered for longevity, these clamps provide long-term safety and reliability for various hose applications on your boat.
Why Choose Our 316 SS Worm Gear Hose Clamps?
Marine environments demand components that can withstand constant exposure to moisture, salt, and varying temperatures. Our 316 Stainless Steel clamps are specifically designed to meet these challenges, ensuring that your hose connections remain tight and secure, minimizing the risk of leaks and hose failures.
Installation Recommendations
- Accurate Sizing: Measure the outer diameter (O.D.) of your hose before selecting the clamp size to ensure a proper and secure fit.
- Double Clamping: For critical applications, especially where safety is paramount, use two clamps on each end of the hose to provide extra security.
- Alternative Options: For larger inner diameter hoses, such as exhaust hoses, consider using our #720 Series Wide Band 316 SS T-Bolt Clamps for enhanced performance.
Construction Details
Component | Material | Dimensions |
---|---|---|
Band & Housing | 316 Stainless Steel | 11.7 mm wide band – 0.9mm thick |
Screw Drive | 316 Stainless Steel | 7.0 mm screw head |
Technical Specifications
Specification | Details |
---|---|
SAE Size | 20 |
Hose Inner Diameter | 1" - 1-1/4" |
Clamping Range | 1-1/4" – 1-3/4" (32-44 mm) |
Recommended Torque | 35-45 inch lbs |
Download the Quick Guide (PDF) for detailed installation instructions and best practices.
