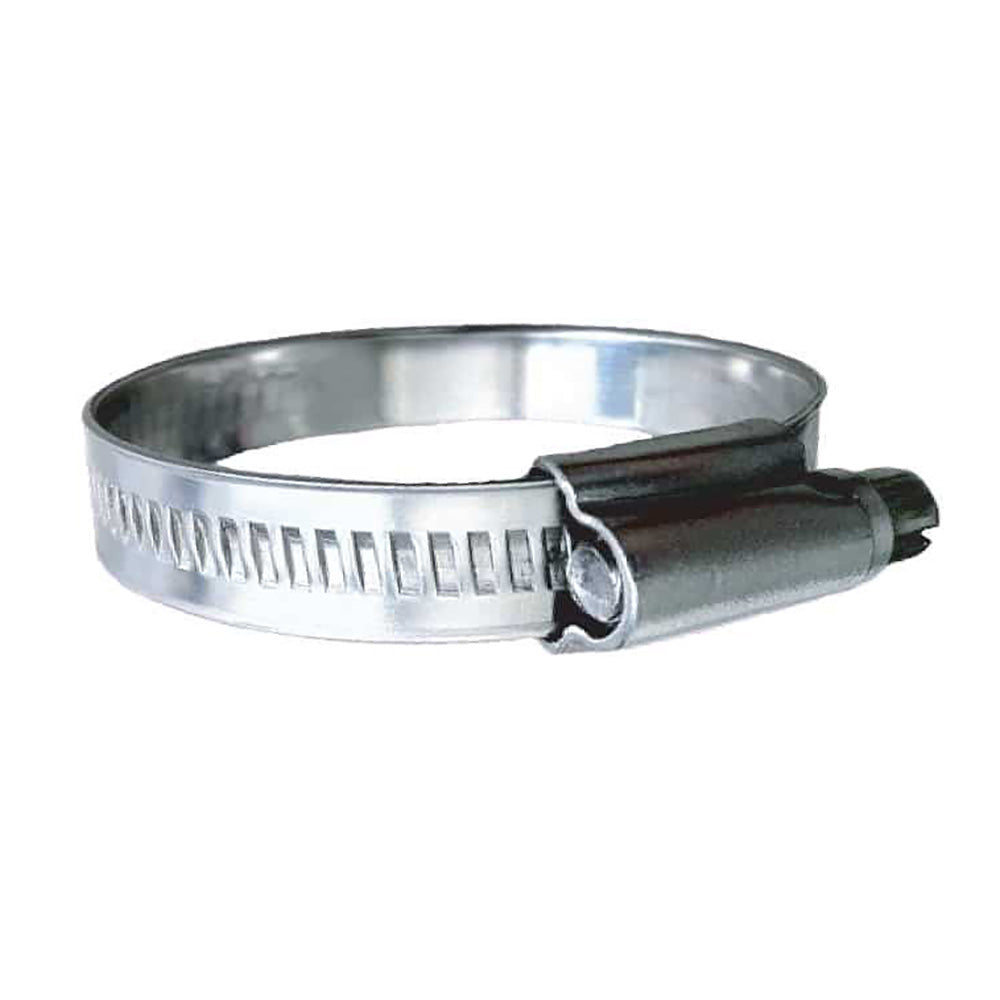

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-1/16" 1-1/2") Clamping Range - 10-Pack - SAE Size 16

Ensure the reliability and durability of your marine hoses with our premium 316 Stainless Steel Non-Perforated Worm Gear Hose Clamps. Designed specifically for the demanding marine environment, these clamps provide exceptional clamping force while protecting your hoses from damage, ensuring secure and leak-free connections on your boat.

Superior Marine-Grade Construction

Crafted from high-quality AISI 316 stainless steel, these hose clamps are built to withstand the harsh conditions of marine applications. The non-perforated, smooth interior surface eliminates hose abrasion, while the rolled edges prevent chafing, ensuring a long-lasting and secure fit.

Key Features

• Material: AISI 316 Stainless Steel for enhanced corrosion resistance
• Band Width: 11.7 mm (0.46”) wide, providing a robust grip
• Housing: 16mm (0.63”) wide, one-piece design for maximum clamping force
• Screw Head: 7mm for easy installation
• Clamping Range: 1-1/16" – 1-1/2" (26-38 mm)
• Packaging: 10-Pack for multiple applications

Technical Specifications

Specification	Details
SAE Size	16
Hose Inner Diameter	7/8" – 1"
Clamping Range	1-1/16" – 1-1/2" / 26-38 mm
Recommended Torque	35-45 Inch lbs

Why Choose Our 316 SS Hose Clamps?

When it comes to marine and boating applications, reliability and durability are paramount. Our 316 SS Hose Clamps are engineered to deliver:

• Enhanced Durability: Resistant to saltwater corrosion and extreme weather conditions.
• Secure Fit: High tensile strength ensures a tight and stable connection, reducing the risk of leaks.
• Hose Protection: Non-perforated design prevents hose damage, extending the lifespan of your hoses.
• Ease of Use: Screw-driven mechanism allows for quick and effortless installation.

Recommended Applications

Ideal for a wide range of marine hose connections, including:

• Engine cooling systems
• Fuel lines
• Water supply hoses
• Exhaust systems

Installation Tips

1. Measure the outer diameter (O.D.) of the hose to select the appropriate clamp size for a proper fit.
2. For critical connections, apply a double clamp on each end of the hose to ensure maximum security.
3. Consider upgrading to our #720 Series wide band 316 SS T-Bolt Clamps for larger inner diameter hoses, such as exhaust hoses.

Product Construction Details

• Band & Housing: 316 Stainless Steel, 11.7 mm wide band with a thickness of 0.9mm
• Screw Drive: 7.0 mm 316 Stainless Steel screw head for durability and strength

Additional Resources

For detailed installation instructions and guidelines, please refer to our Quick Guide (PDF).
