Trident Marine 3/8" x 50 Boxed Low Permeation Type A1-15 Fuel Line Hose - Black

Ensure your boat’s fuel system operates smoothly and safely with our premium 3/8" x 50' Low Permeation Type A1-15 Fuel Line Hose. Designed specifically for marine applications, this fuel hose offers superior durability and performance, making it an essential component for any boating enthusiast.

Product Overview

The Trident Barrier Lined A1-15 Fuel Hose is engineered to handle both gasoline (including ethanol blends up to 85%) and diesel fuels (including biodiesel blends up to B100). Its advanced formulation provides exceptional resistance to fuel permeation, fire, and aging, ensuring long-lasting performance even in harsh marine environments. The unique Barrier Liner ensures that fuel does not come into direct contact with the rubber, enhancing safety and reliability.

Key Features

• Exceptional resistance to fuel permeation, aging, fire, heat, cold, and ozone
• Outstanding flexibility for easy installation and maneuvering
• NMMA Type Accepted & CE certified for marine use

Ideal Applications

• Marine fuel distribution, return, venting, and transfer systems
• Compatible with all marine fuels, including gasoline, alcohol blends (CE-10), diesel, and biodiesel

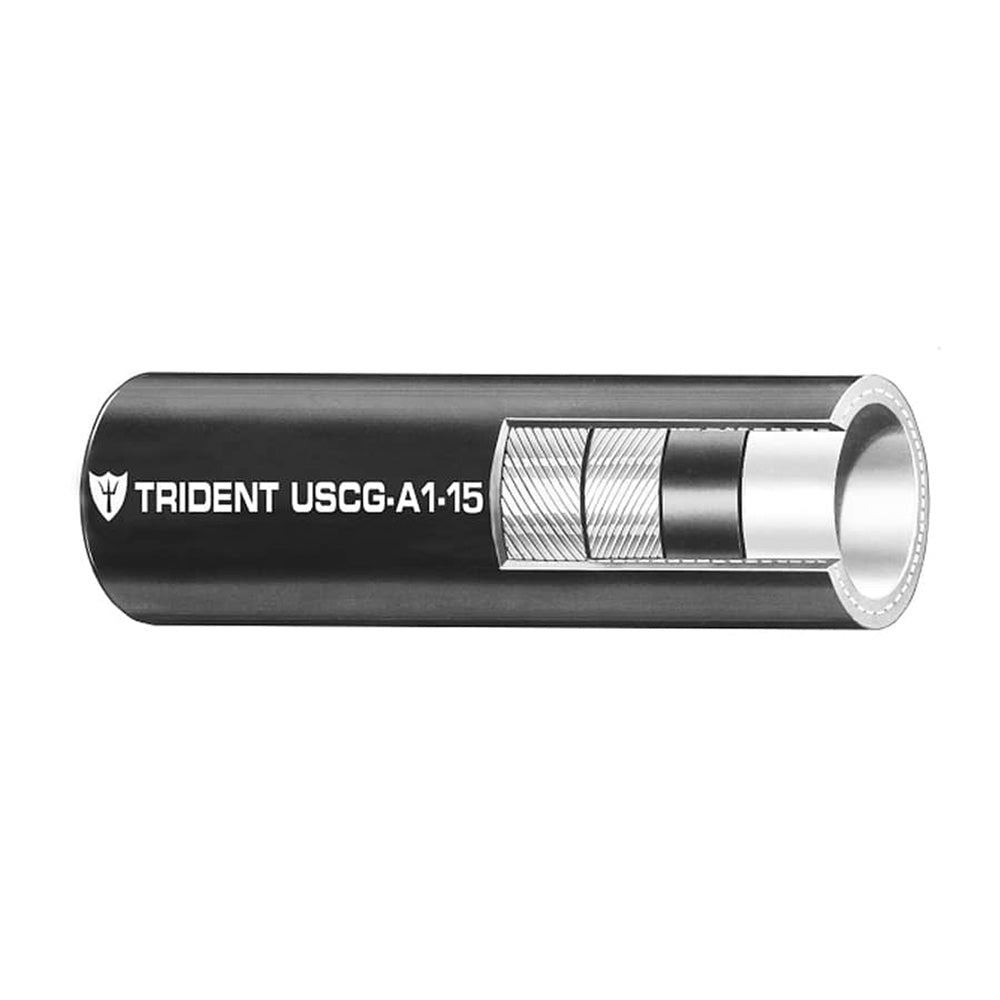

Construction Details

• Tube: Nylon Internal Barrier, NBR
• Cover: NBR/PVC Blend
• Reinforcement: 2 polyester spirals
• Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
• Length: 50 ft. (15 m) Boxed

Technical Specifications

Specification	Value
Inner Diameter	3/8" (9.50 mm)
Outer Diameter	0.681" (17.3 mm)
Burst Pressure	400 psi (2.76 MPa)
Working Pressure	100 psi (0.69 MPa)
Bend Radius	2" (50.8 mm)
Weight	15.6 lb/100 ft (0.233 kg/m)
Permeation Rate	<10 g/m²/24 hrs (CE10)

Note: The #365 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15, CARB Executive Order RM-17-008, and EPA Certified low permeation Type A1-10 standards.

Download Quick Guide (PDF)
