Trident Marine 3/8" Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray - Sold by the Foot
Trident Marine 3/8" Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray - Sold by the Foot is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
This high-performance 3/8" Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose is engineered specifically for marine and boating applications. Constructed with superior fuel and age-resistant materials, it ensures reliable fuel delivery while protecting your engine from harmful contaminants. Sold by the foot, this gray hose is the ideal choice for boaters seeking durability and compliance with the latest fuel standards.
Features
- Sold by the foot for customizable lengths
- Exceptional resistance to fuel permeation, aging, heat, cold, and ozone
- Excellent rope-like bend-ability and fitting retention for easy installation
- Compatible with gasoline (including ethanol blends up to E85) and diesel (including biodiesel blends up to 100%)
- EPA Certified and CARB Executive Order compliant for low permeation Type B1-15
- NMMA Type Accepted and CE certified for added assurance
Applications
- Marine Fuel Hose for distribution, return, vent, and transfer systems
- Suitable for all marine fuels including gasoline, alcohol blends (CE-10), diesel, and biodiesel

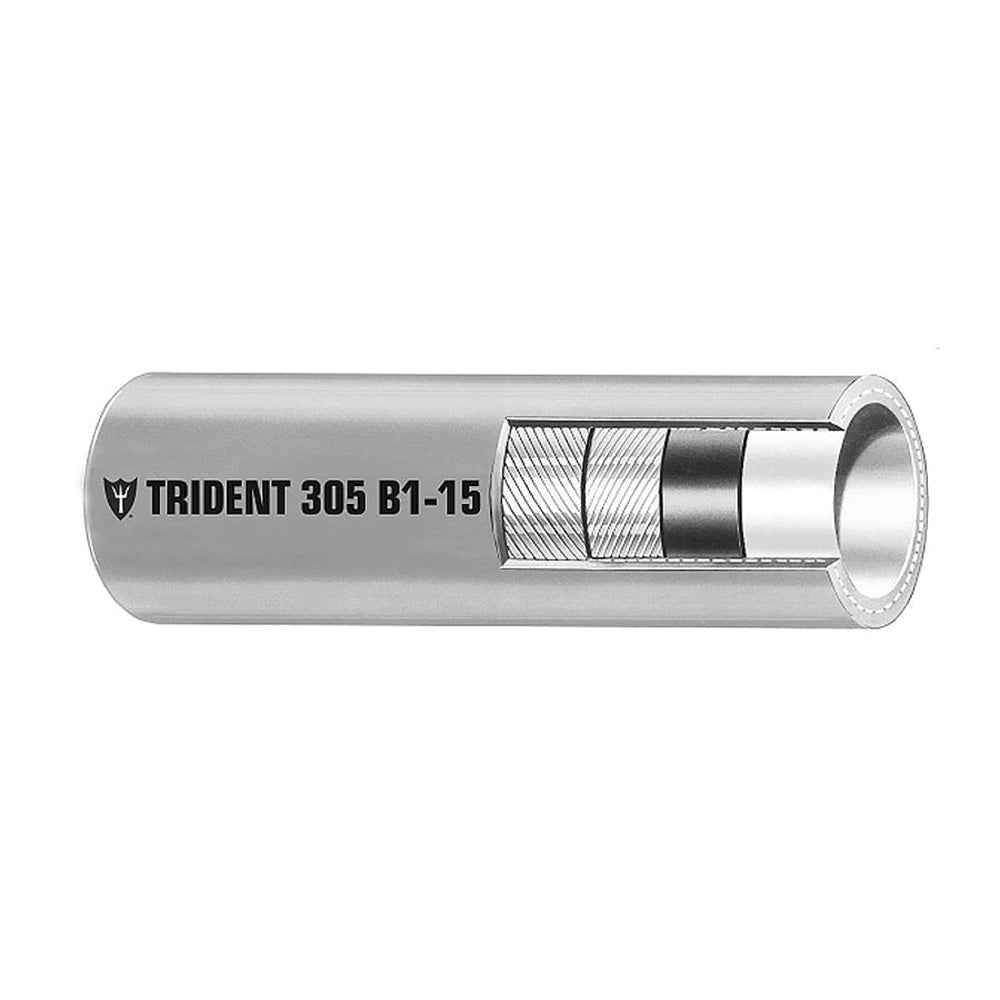

Construction
- Tube: Fluoroplastic Internal Barrier
- Cover: Gray CPE Rubber
- Reinforcement: 2-Spiral Polyester Plies
- Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
Specifications
Specification | Value |
---|---|
Inner Diameter | 3/8" (9.50 mm) |
Outer Diameter | 0.588" (14.9 mm) |
Burst Pressure | 175 psi (1.21 MPa) |
Working Pressure | 35 psi (0.24 MPa) |
Bend Radius | 4" (101.6 mm) |
Weight | 10.5 lb/100 ft. (0.156 kg/m) |
Permeation Rate | 5.0 g/m²/24hrs (Standard is 15 g/m²/24hrs for CE10) |
Note: The #305 series exceeds ABYC H-24, SAE J1527, ISO 8469 B1, and USCG Type B1-15 standards.
