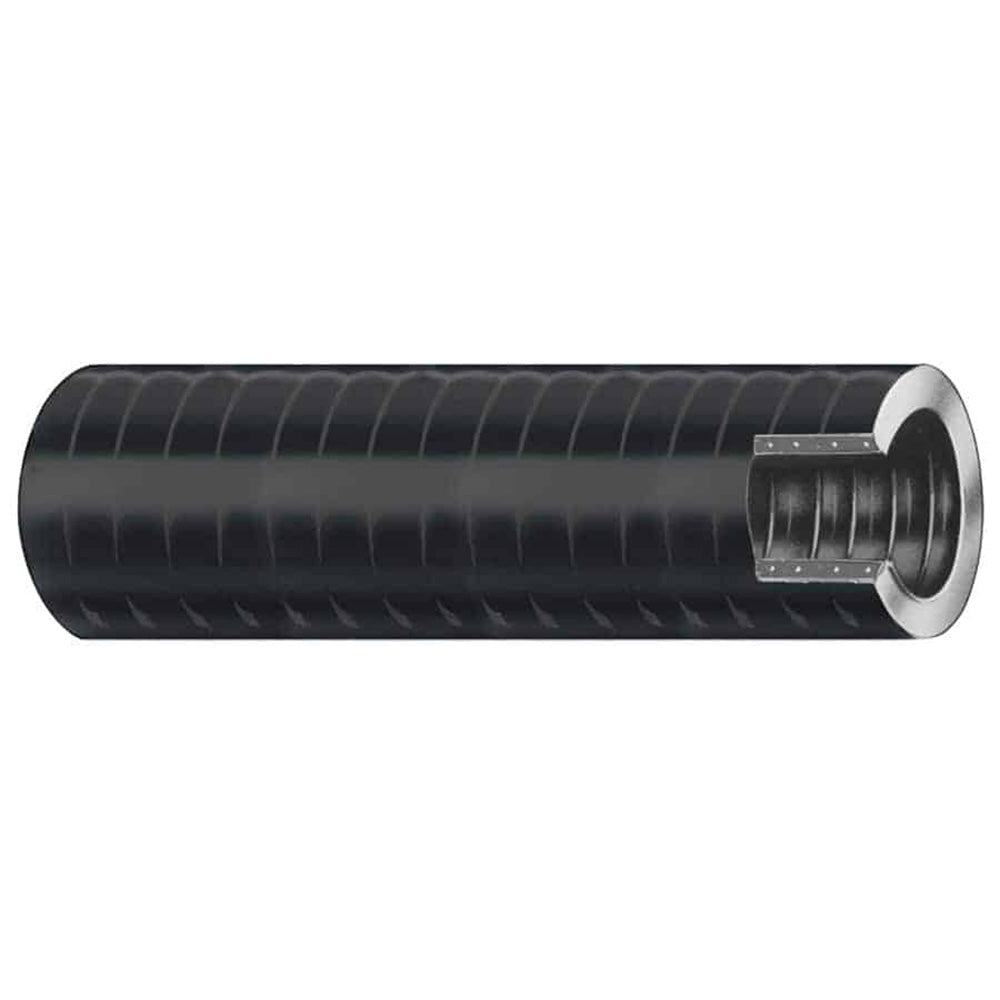

Trident Marine 3/4" VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black - Sold by the Foot

The 3/4" VAC XHD Bilge & Live Well Hose by Trident is engineered for reliable performance in demanding marine environments. Crafted with hard PVC helix reinforcement, this hose offers exceptional flexibility and durability, making it ideal for both live well and heavy-duty bilge applications on your vessel.

Key Features

• Available for purchase by the foot, allowing for customized lengths to fit your specific needs
• 149 series hoses provide enhanced flexibility for easier installation and maneuverability
• Helical PVC reinforcement ensures a superior bend radius, mimicking the flexibility of rubber hoses while maintaining the strength of PVC
• Smooth outer surface facilitates effortless clamping, securing the hose firmly in place

Ideal Applications

• Bilge systems: Efficiently manage and remove bilge water to keep your vessel dry and safe
• Live wells: Reliable performance ensures the well maintains optimal conditions for aquatic life onboard

Detailed Specifications

Specification	Details
Tube & Cover	Hard PVC Helix
Color	Black
Reinforcement	PVC Helix
Temperature Range	10°F - 120°F (-12°C - 48°C)
Inner Diameter	3/4" (19.1 mm)
Outer Diameter	0.986" (25 mm)
Working Pressure	28 Psi Vac In./Hg, 1.93 Bar
Burst Pressure	4 x Working Pressure
Weight	11 lbs per 50 ft. (4.99 Kg/m)
Bend Radius	3" (76.2 mm)
Box Dimensions	1" H x 1" W x 6" L
Box Weight	0.19 lbs

Additional Information

This hose is sold by the foot, providing the flexibility to purchase only the length you need for your specific marine application. Its robust construction ensures longevity and reliable performance, even in harsh marine conditions.

Download the Quick Guide (PDF) for more detailed information and installation instructions.
