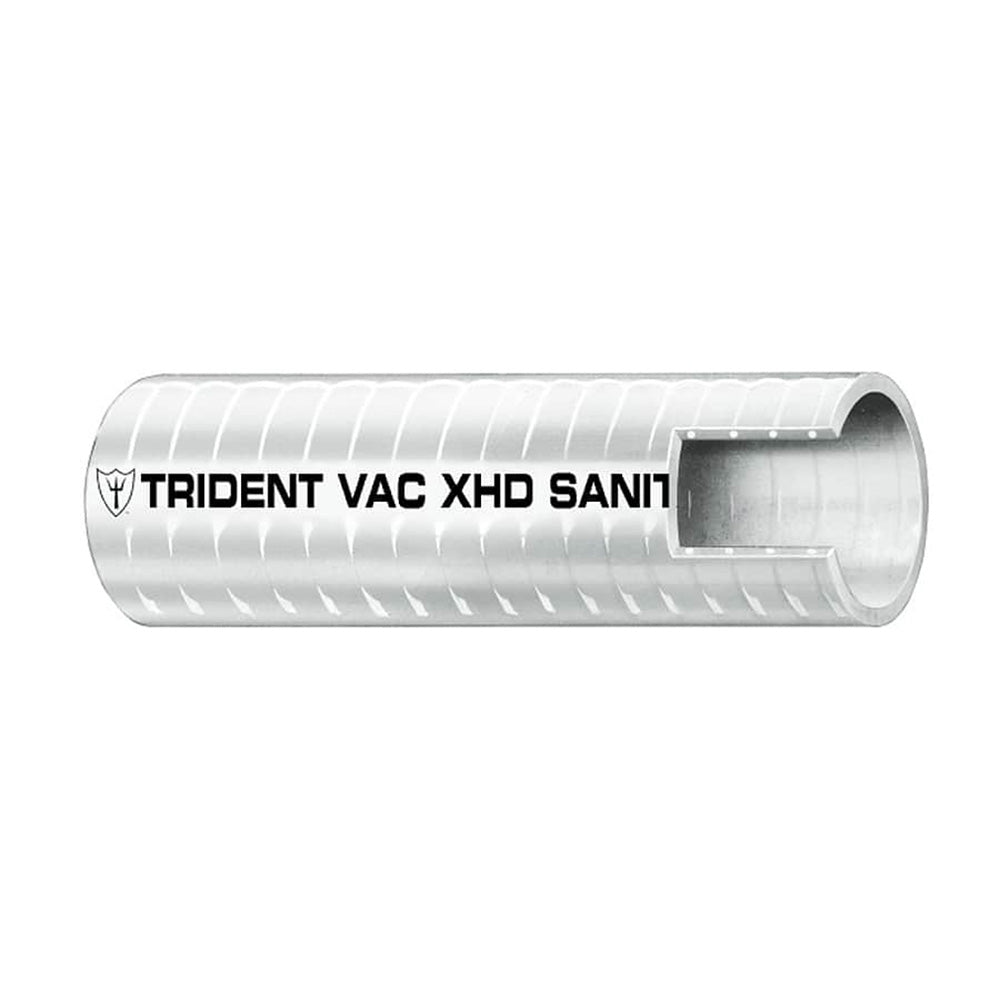

Trident Marine 1" x 50 Box VAC XHD Sanitation Hose - Hard PVC Helix - White

The VAC XHD 1" x 50' Sanitation Hose in white is engineered for marine environments, delivering superior performance and durability for your vessel's critical systems. Crafted from extra heavy-duty smooth white vinyl with a hard PVC helix, this sanitation hose resists odor permeation and is safe for FDA potable water applications, making it ideal for bilges, drain scuppers, live wells, and more.

Key Features

• Hard PVC Helix Construction: Ensures excellent flexibility and a tight bend radius, allowing for easy routing and minimal space requirements.
• Odor Resistant: Specially compounded to prevent unpleasant smells from permeating, maintaining a fresh environment onboard.
• No Cuffs Needed: Simplifies installation by eliminating the need for cuffs, saving time and reducing potential installation errors.
• FDA Potable Water Safe: Suitable for potable water fill, meeting FDA standards for safety and reliability.

Ideal Applications

• Bilge Systems: Robust performance ensures efficient handling of bilge water, keeping your vessel safe and clean.
• Drain Scuppers: Reliable drainage to prevent water accumulation and maintain optimal vessel performance.
• Live Wells: Ensures clean and odor-free operations within live wells, crucial for maintaining fish or other live stock.
• Self-Draining Installations: Recommended for installations that allow the hose to drain, prolonging odor-free service life.

Product Specifications

Attribute	Details
Length	50 ft (15.2 m)
Inner Diameter	1 inch (25.4 mm)
Outer Diameter	1.262 inches (32.1 mm)
Box Dimensions	5" H x 22" W x 22" L
Weight	15 lbs (6.8 kg) per 50 ft
Color	White
Tube & Cover	Hard PVC Helix
Reinforcement	PVC Helix
Temperature Range	10°F - 120°F (-12°C - 48°C)
Working Pressure	28 psi Vac In./Hg
Bend Radius	3 inches (76.2 mm)
UPC	704917006291

Important Information

• Usage Restrictions: Do not use with alcohol, anti-freeze, petrochemicals, or solvents to maintain integrity and safety.
• Burst Pressure: Rated at four times the working pressure to ensure safety under high-stress conditions.

Quick Guide (PDF)
