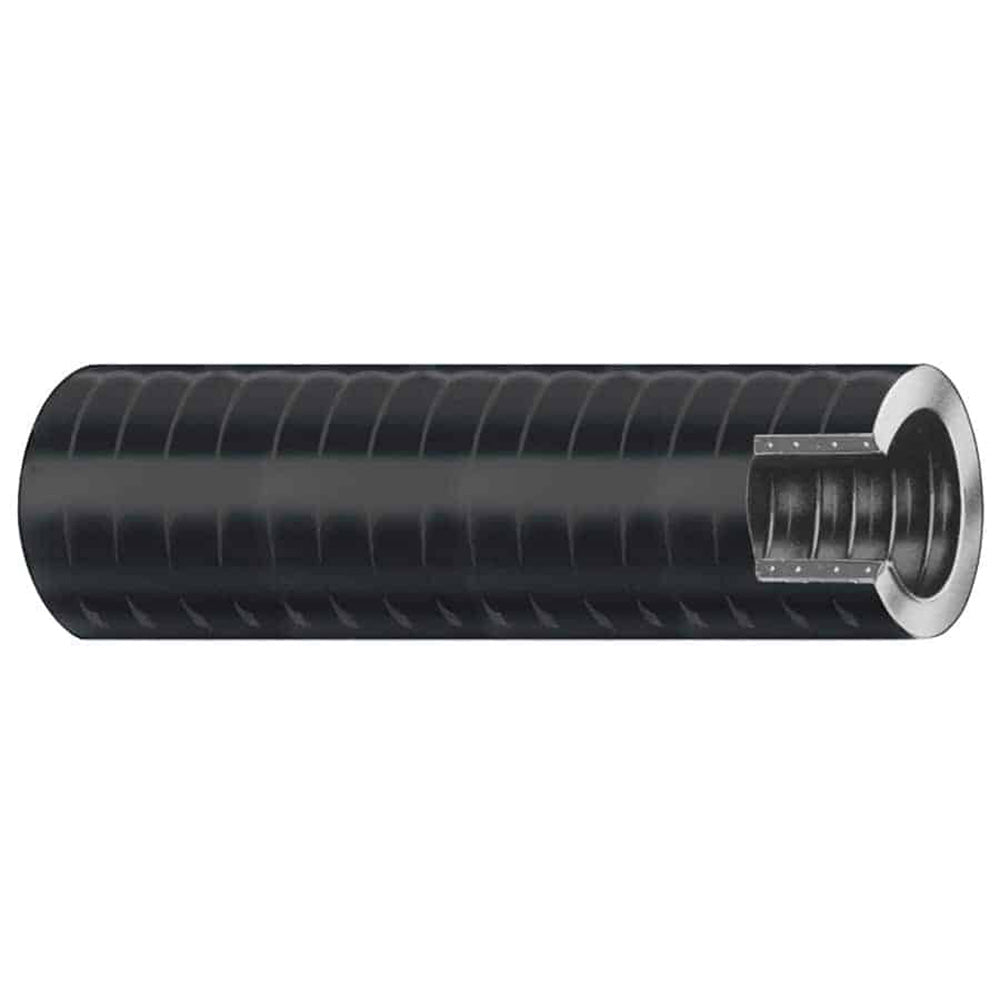

Trident Marine 1-1/8" x 50 VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black

Enhance your boat's performance with the Trident VAC XHD 1-1/8" x 50' Bilge & Live Well Hose. Crafted with hard PVC helix reinforcement, this hose offers superior flexibility and durability, making it ideal for both live well and heavy-duty bilge applications. Its smooth exterior ensures effortless clamping, while the excellent bend radius simplifies installation, mirroring the flexibility of rubber hoses without compromising on strength.

Key Features

• Extra Flexibility: Part of the 149 series, designed for enhanced maneuverability.
• Helical PVC Reinforcement: Provides outstanding durability and maintains shape under pressure.
• Smooth Outer Surface: Facilitates easy clamping and secure fittings.
• Optimized Bend Radius: Allows for easy routing and installation, reducing installation time.

Ideal Applications

• Bilge pumping systems
• Live well water circulation
• Heavy-duty marine applications requiring reliable hose performance

Product Specifications

Attribute	Details
Tube & Cover	Hard PVC helix
Color	Black
Reinforcement	PVC Helix
Temperature Range	10°F-120°F (-12°C-48°C)
Length	50 ft (15.2 m)
Inner Diameter	1-1/8" (28.6 mm)
Outer Diameter	1.433" (36.4 mm)
Working Pressure	28 Psi Vac In./Hg, 1.93 Bar
Weight	15 lbs (6.80 kg/m)
Bend Radius	3" (76.2 mm)
Burst Pressure	4 x Working Pressure

Additional Specifications

• Box Dimensions: 8" H x 23" W x 23" L
• Weight: 15 lbs
• UPC: 704917010434

Download the Quick Guide (PDF) for detailed installation instructions and maintenance tips.
