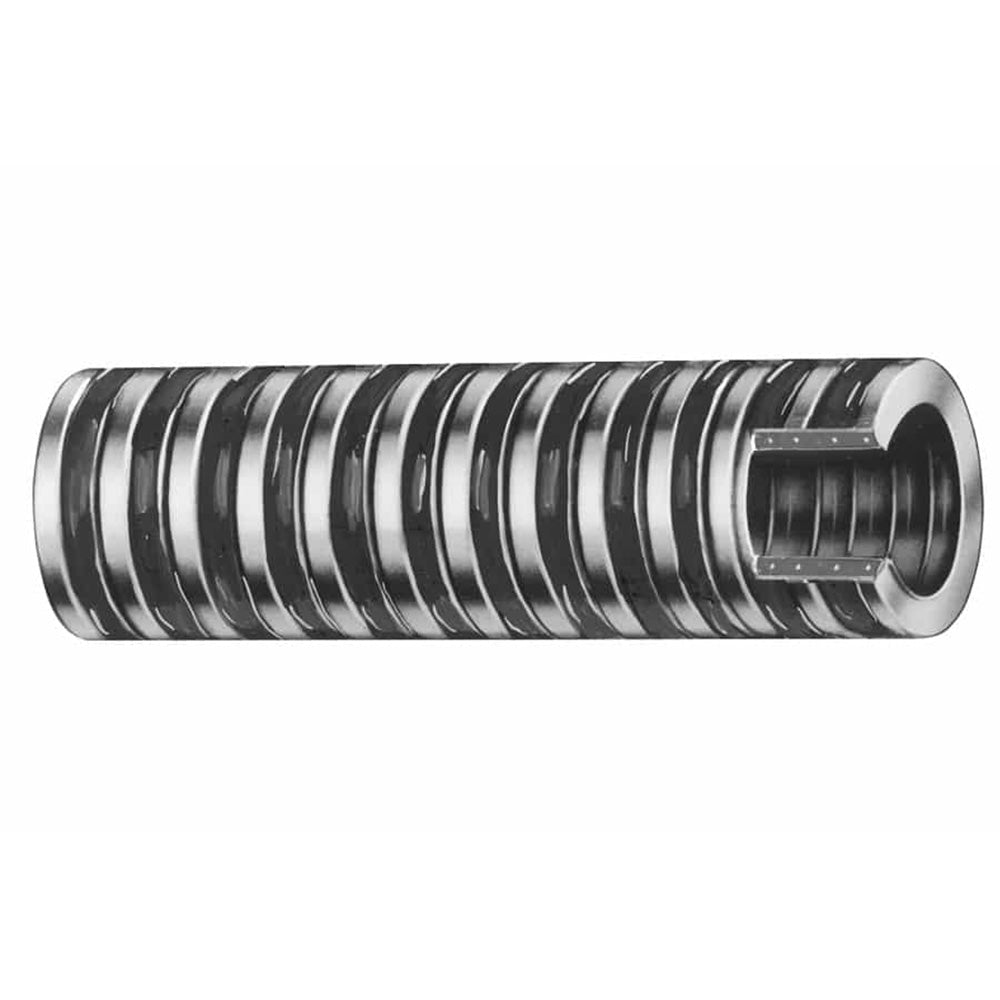

Trident Marine 1-1/8" Heavy Duty PVC Bilge Livewell Hose (FDA) - Clear w/Black Helix - Sold by the Foot

The 1-1/8" Heavy Duty PVC Bilge & Livewell Hose is engineered specifically for marine applications, offering superior performance and reliability for your boat’s essential systems. Crafted from Trident Smooth extra heavy wall vinyl (FDA approved), this clear hose with a black helix reinforcement ensures optimal visibility and strength, making it an ideal choice for bilge lines, live wells, drains, and scuppers. Its exceptional durability and flexible design eliminate the need for additional cuffs, simplifying installation and maintenance.

Key Features

• Available for purchase by the foot, allowing you to order the exact length needed for your application
• Constructed with Trident Smooth extra heavy wall vinyl for enhanced durability
• Clear vinyl offers excellent visibility with a robust black helix reinforcement
• Flexible design with a superior bend radius, ensuring ease of installation in tight spaces
• FDA approved materials for safe and reliable use in live wells and bilge systems
• No additional cuffs required, reducing installation time and complexity

Applications

Perfect for a variety of marine uses, including:

• Bilge systems
• Live wells
• Drain lines
• Scupper lines

Specifications

Specification	Details
Tube & Cover	Clear vinyl reinforced with black helix
Color	Clear with black helix
Reinforcement	PVC Helix
Temperature Range	10°F-120°F (-12°C-49°C)
Inner Diameter	1-1/8" (28.6 mm)
Outer Diameter	1.39" (35.4 mm)
Working Pressure	28 Psi Vac In./Hg
Weight	15 lbs per 50 ft. / 0.45 Kg/m
Bend Radius	3.5" (8.9 mm)
Burst Pressure	4 x Working Pressure
ID Diameter	1-1/8"
Length	Sold By The Foot
Box Dimensions	2"H x 2"W x 2"L
Weight per Box	0.28 lbs

Additional Information

*Burst Pressure is 4 times the Working Pressure.

Download the Quick Guide (PDF)
