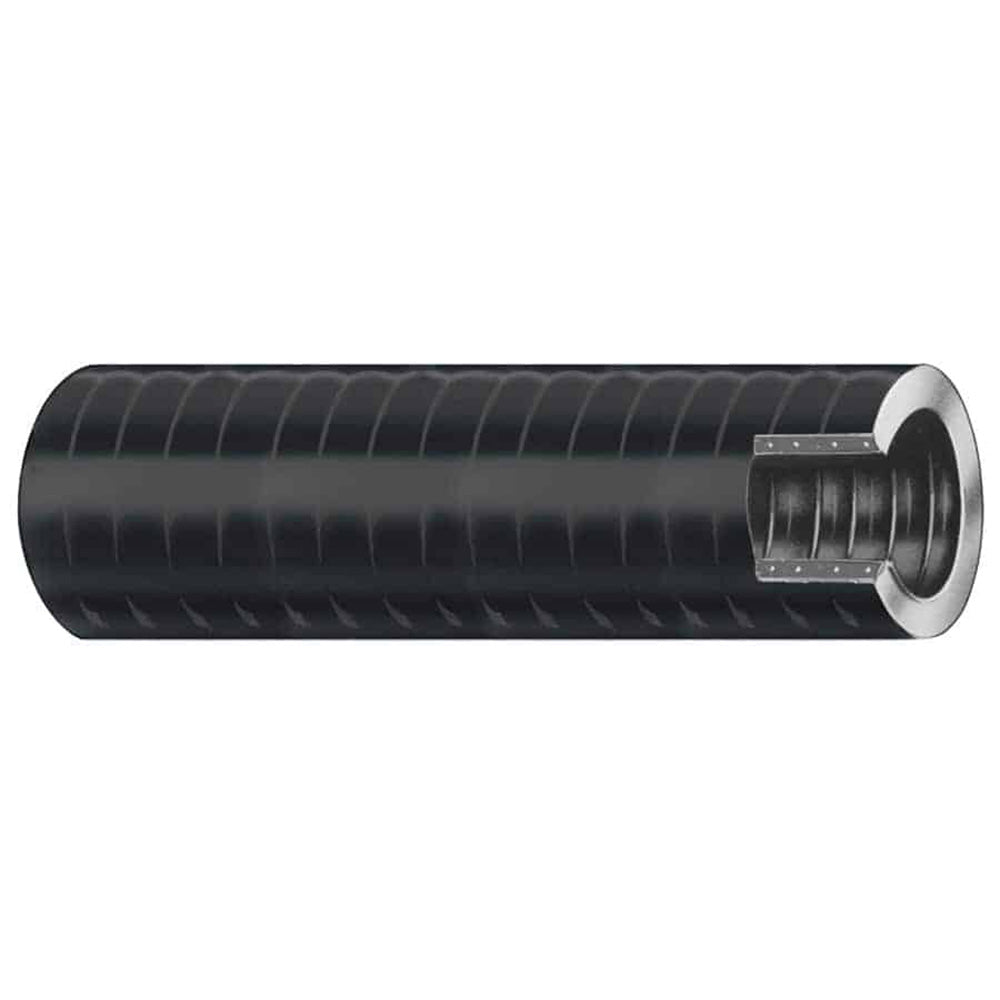

Trident Marine 1-1/2" x 50 VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black

The 1-1/2" x 50' VAC XHD Bilge & Live Well Hose is designed for boat owners seeking a dependable and flexible solution for their bilge and live well systems. Featuring helical PVC reinforcement, this hose offers exceptional flexibility and an impressive bend radius, making it ideal for both live well and heavy-duty bilge applications. Its smooth black PVC exterior ensures easy clamping and long-lasting performance in various marine environments.

Features

• Extra flexible 149 series hose for enhanced maneuverability
• Helical PVC reinforcement ensures durability and flexibility
• Smooth outer surface facilitates easy clamping and installation
• Rubber-like bend radius simplifies routing around boat structures

Applications

• Bilge pumping systems
• Live well water circulation
• Heavy-duty marine applications

Specifications

Tube & Cover	Hard PVC helix
Color	Black
Reinforcement	PVC Helix
Temperature Range	10°F-120°F (-12°C-48°C)
Boxed Length	50ft / 15.2m
Inner Diameter	1-1/2" / 38.1mm
Outer Diameter	1.792" / 45.5mm
Working Pressure	28 Psi Vac In./Hg, 1.93 Bar
Bend Radius	4" / 101.6mm
Burst Pressure	4 x Working Pressure
Weight	22 lbs / 9.98 Kg/m
ID Diameter	1-1/2"
Box Dimensions	8"H x 23"W x 23"L, WT: 23.2 lbs
UPC	704917010472

Additional Information

*Burst Pressure is 4 times the Working Pressure

Download the Quick Guide (PDF)
