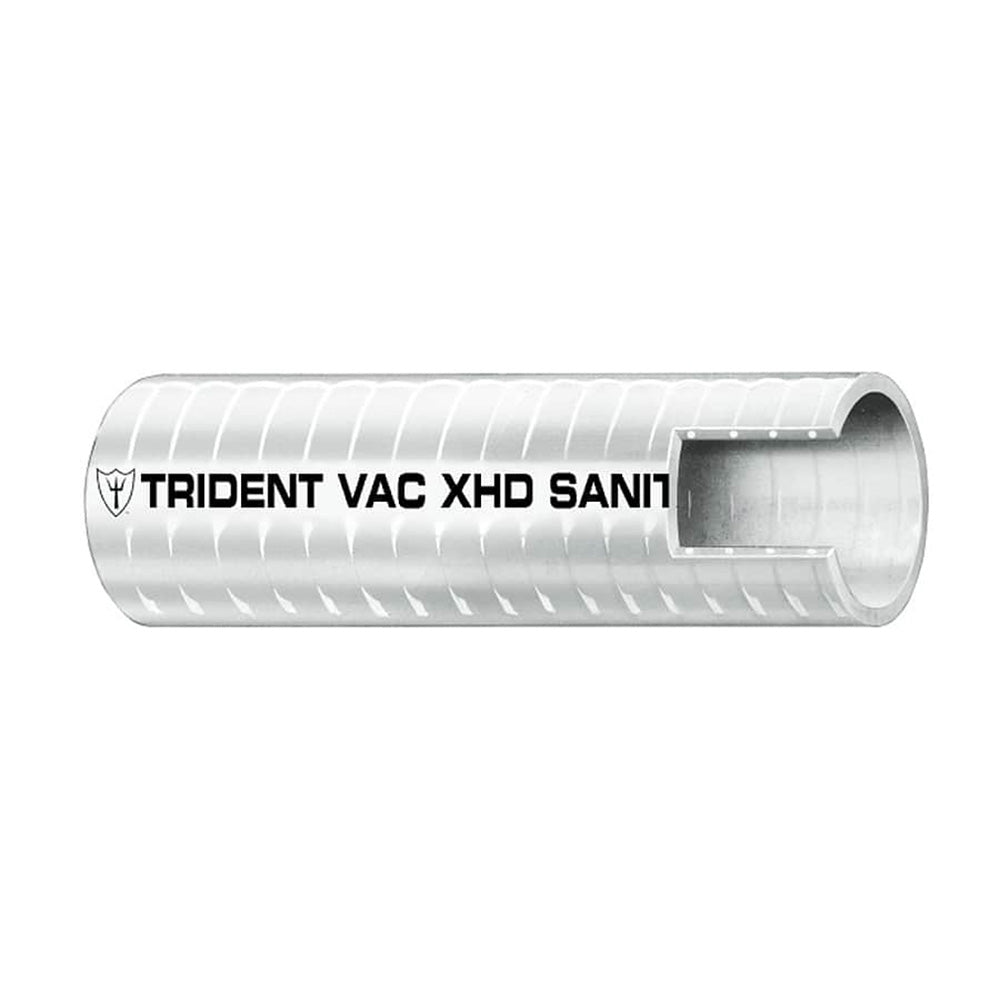

Trident Marine 1-1/2" x 50 Box VAC XHD Sanitation Hose - Hard PVC Helix - White

The 1-1/2" x 50' Box VAC XHD Sanitation Hose by Trident Ply is a robust, extra heavy-duty marine hose crafted from smooth white vinyl. Designed with a hard PVC helix, this hose offers superior flexibility and durability, making it perfect for critical marine applications such as bilge pumps, live wells, and drain scuppers. Its specialized compound resists odor permeation and is approved for potable water use, ensuring reliable and safe performance on your vessel.

Features

• Engineered with a hard PVC helix for excellent flexibility and bend radius
• No cuffs required, simplifying installation and maintenance

Applications

• Ideal for systems requiring resistance to odor permeation and certified for potable water (FDA approved)
• Suitable for critical marine functions including bilge systems, drain scuppers, and live wells
• Recommended for self-draining installations to ensure long-lasting, odor-free service

Specifications

Specification	Details
Tube & Cover	Hard PVC helix
Color	White
Reinforcement	PVC Helix
Temperature Range	10°F-120°F (-12°C-48°C)
Length	50 ft / 15.2 m
Inner Diameter	1-1/2" / 38.1 mm
Outer Diameter	1.788" / 45.4 mm
Working Pressure	28 Psi Vac In./Hg
Weight (Hose)	22 lb / 0.76 Kg/m
Bend Radius	4" / 102 mm
Box Length	50 ft
Box Dimensions	10" H x 22" W x 22" L
Box Weight	23.1 lbs
UPC	704917006352

Important Information

• Do not use with alcohol, anti-freeze, petrochemicals, or solvents
• Burst pressure is 4 times the working pressure

Download the Quick Guide (PDF)
