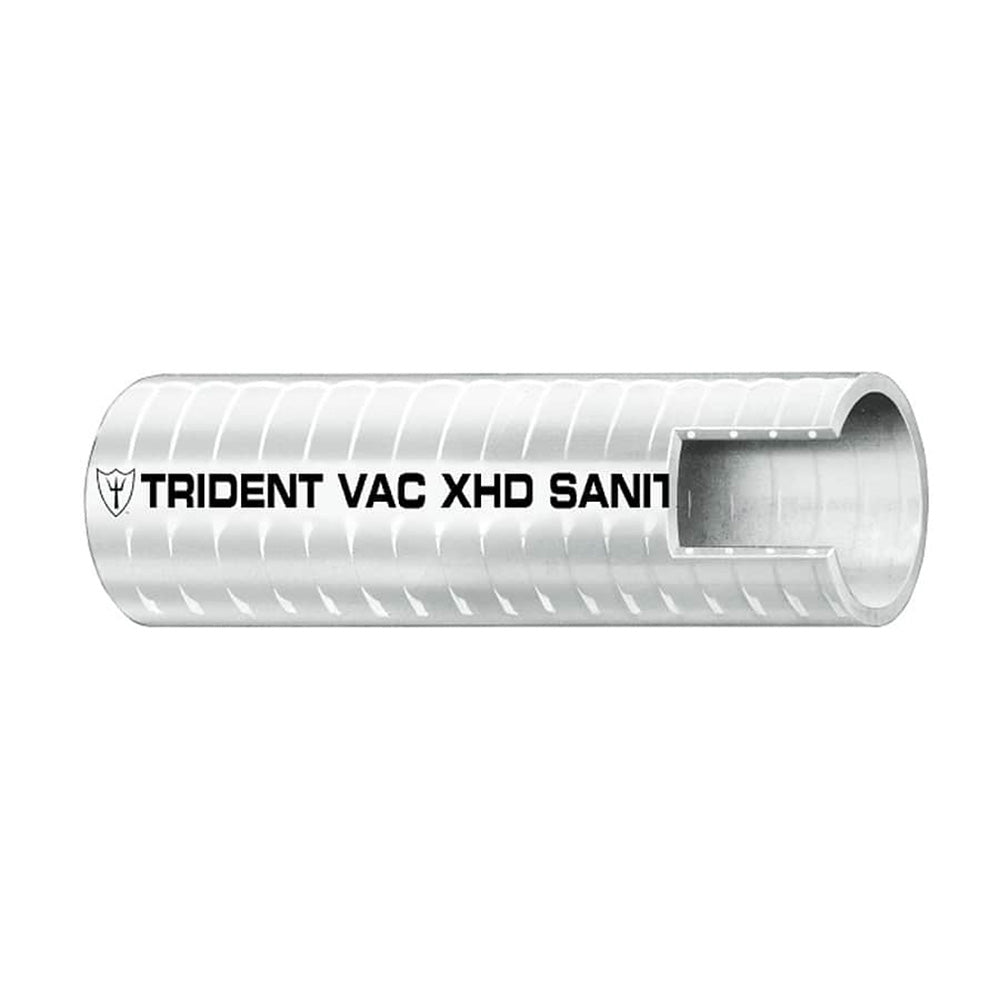

Trident Marine 1-1/2" VAC XHD Sanitation Hose - Hard PVC Helix - White - Sold by the Foot

The 1-1/2" VAC XHD Sanitation Hose is the ideal solution for marine sanitation needs, crafted from extra heavy-duty hard PVC helix in a clean white finish. Designed specifically for boats and marine applications, this hose offers exceptional flexibility, superior odor resistance, and is suitable for potable water systems, ensuring reliable and long-lasting performance in critical areas such as bilges, drain scuppers, and live wells.

Features

• Available for purchase by the foot, allowing customization to your specific length requirements
• Constructed with a hard PVC helix for excellent flexibility and an optimal bend radius
• Installation is simplified as no cuffs are required

Applications

• Specially compounded to resist odor permeation, making it perfect for marine sanitation systems and FDA-compliant potable water fills
• Ideal for critical areas such as bilges, drain scuppers, live wells, and other vital marine systems

Specifications

Tube & Cover	Hard PVC Helix
Color	White
Reinforcement	PVC Helix
Temperature Range	10°F-120°F (-12°C-48°C)
Inner Diameter	1-1/2" / 38.1 mm
Outer Diameter	1.788" / 45.4 mm
Working Pressure	28 Psi Vac In./Hg
Weight	22 lbs per 50 ft. / 0.76 Kg/m
Bend Radius	4" / 102 mm
ID Diameter	1-1/2"
Length	Sold By The Foot
Box Dimensions	2"H x 2"W x 2"L
Box Weight	0.46 lbs

Important Information

• Do not use with alcohol, anti-freeze, petrochemicals, or solvents.
• Burst Pressure is four times the Working Pressure.

Download the Quick Guide (PDF)
