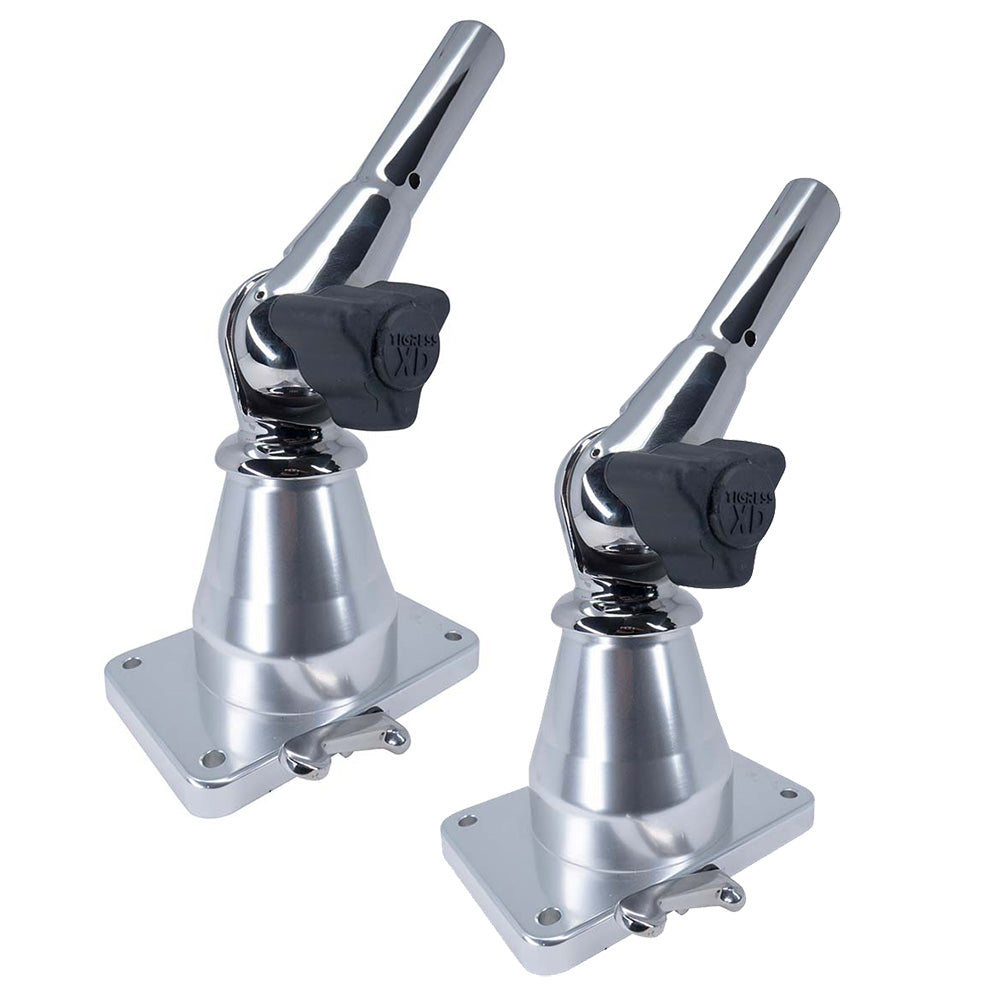

Tigress XD Bay Series Top Mount

The XD Bay Series Top Mount is the ultimate solution for sport fishing enthusiasts, providing reliable performance and superior durability for boats up to 40 feet. Designed specifically for marine environments, this top mount ensures seamless integration with your outriggers, enhancing your fishing experience with maximum stability and ease of use.

Key Features

• Boat Compatibility: Suitable for sport fishing boats up to 40 feet in length.
• Outrigger Compatibility: Compatible with all Tigress XD 1-1/8” butt diameter outriggers.
• Adjustable Arm Angle: Offers 19 upper-arm angle/locking positions with a 10-degree baseline using Tigress XD 316L stainless steel tooth locking design and horizontal stops, ideal for trailering and bridge crossings.
• Ergonomic Knob: Features a large 3-lobe UV-resistant ergonomic knob for easy elevation adjustments and secure locking of outriggers.
• Precision Locking System: Provides 24 adjustable locking positions in 15-degree increments, utilizing Tigress XD 316L stainless steel locking design with high-definition spring return for added reliability.
• User-Friendly Operation: Equipped with a side operating lever for effortless control and adjustments.
• Robust Baseplate: Constructed with a large ‘XD’ aluminum baseplate, 14.5mm thick, featuring four corner mountings for enhanced stability.
• Mounting Pattern: 5/16” through bolts with a 3.000” x 5.000” four-bolt pattern, providing secure attachment.
• Universal Fit: Compatible with Tigress and other industry-standard 4” x 6” mounting plates, using four 5/16” diameter fasteners.
• Durable Construction: Built with extreme-duty 316L stainless steel and anodized aluminum, fully sealed for UV protection and longevity.
• Ambidextrous Mounting: Offers ambidextrous mounting options to accommodate the preferred side of the tri-lobe knob.
• Warranty: Backed by a 3-year limited warranty for peace of mind.

Technical Specifications

Feature	Description
Boat Size	Up to 40 feet
Outrigger Compatibility	Tigress XD 1-1/8” butt diameter
Arm Angle Positions	19 positions (@10° baseline)
Locking Positions	24 positions (15° increments)
Baseplate Material	Aluminum, 14.5mm thick
Mounting Pattern	5/16” through x 3.000” x 5.000” four-bolt
Construction Materials	316L Stainless Steel, anodized aluminum
Warranty	3-Year Limited

Durability and Build Quality

The XD Bay Series Top Mount is engineered with extreme-duty 316L stainless steel and anodized aluminum, ensuring it withstands harsh marine environments. Its fully sealed construction provides excellent UV protection, reducing wear and tear from prolonged exposure to the elements.

Ease of Installation and Use

Designed for both Tigress and other industry-standard mounting plates, the top mount features a universal four-bolt pattern, allowing for straightforward installation. The ambidextrous mounting option provides flexibility in positioning the tri-lobe knob, making adjustments simple and user-friendly with its large, ergonomic design and side operating lever.

Warranty and Support

Purchasers of the XD Bay Series Top Mount benefit from a comprehensive 3-year limited warranty, ensuring long-term reliability and support for all your sport fishing endeavors.
