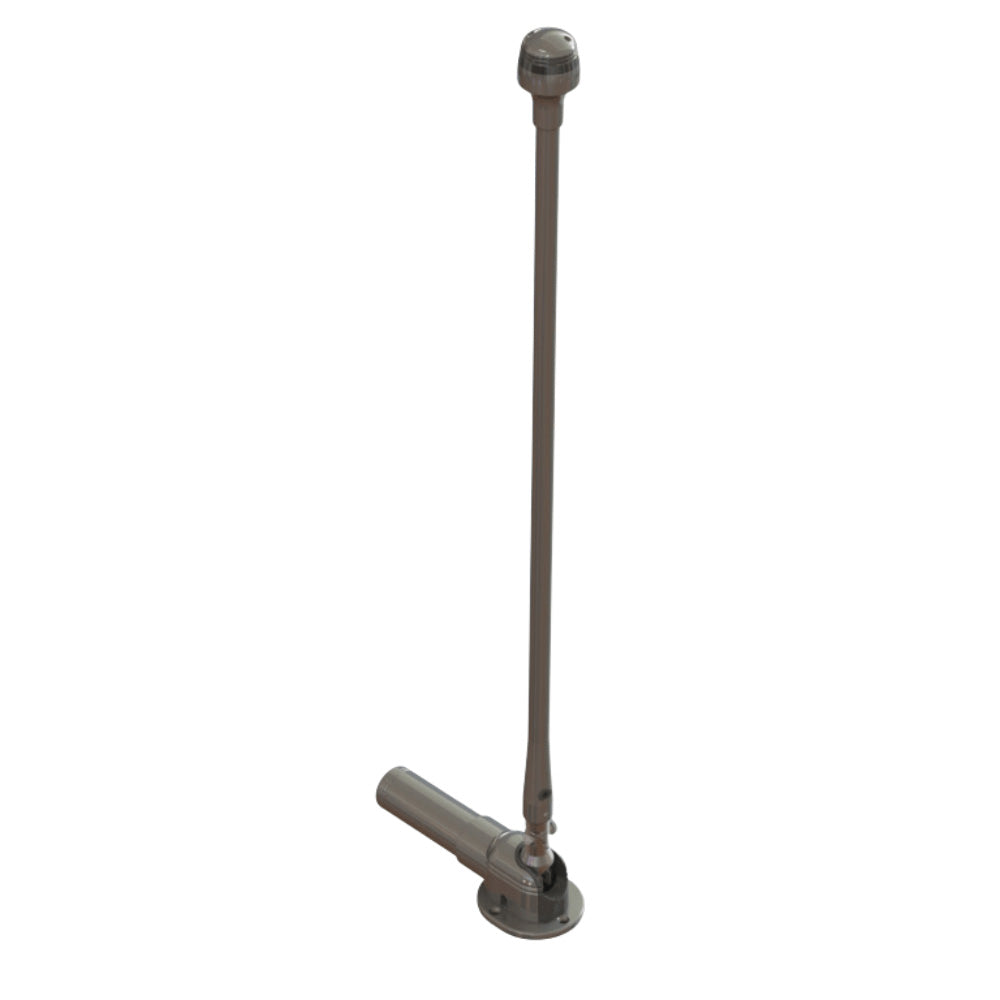

TACO Grand Slam 960 Electric Masthead Anchor Light

The Grand Slam 960 Electric Masthead Anchor Light is engineered for boaters who demand top-tier safety, enduring performance, and sleek marine aesthetics. Perfectly suited for vessels up to 39 feet, this advanced anchor light ensures optimal visibility and reliability, meeting stringent US Coast Guard requirements while enhancing your vessel’s look with its polished stainless-steel finish.

Product Overview

The Grand Slam 960 builds upon the acclaimed GS-950 model, introducing significant upgrades for enhanced durability and functionality. Its robust stainless-steel body and Type 316L stainless-steel breakaway pin provide exceptional resistance against harsh marine environments. The innovative stainless-steel anti-backlash linear screw drive ensures smooth and reliable operation, even in challenging conditions. The oblong design accommodates a more powerful motor, delivering superior performance to keep your anchor light functioning flawlessly at sea.

Key Features

• Certified Visibility: Meets the USCG’s 3 nautical mile visibility requirement, ensuring your vessel is seen from afar.
• Durable Construction: Constructed with a stainless-steel body and Type 316L stainless-steel breakaway pin for maximum weather resistance.
• Enhanced Motor Performance: Features a high-torque, anti-backlash ball-bearing motor and a stainless-steel threaded screw drive for smooth lift and descent.
• Easy Installation: Equipped with a hidden base wire that seamlessly integrates into the hardtop surface. Compatible with the GS-950 hole pattern for effortless upgrades.
• User-Friendly Operation: Push-button control with auto-rotating stop and manual stop options allows for easy adjustments from the deck.
• Energy Efficient: Operates on 12 volts DC with low-draw consumption of 0.6 amps per light, ensuring minimal power usage.
• Reliable Lighting: Utilizes four 3-watt LED Cree chips driven by two Mean Well drivers, providing consistent and long-lasting illumination.
• Manual Override: Integrated nylon knob on the stainless-steel breakaway pin enables manual operation during power failures.
• Comprehensive Package: Includes heavy-duty anodized aluminum tube, light assembly, 6” lead of 20-gauge wire from the base, and a 12” wire lead with water-sealed Deutsch connector using 18-gauge wire.
• Compliance: Meets NMMA/ABYC C-5 5.8 Standards requirements and is an NMMA Type Accepted Approved Product.

Specifications

Attribute	Details
Model	Grand Slam 960 Electric Masthead Anchor Light
Weight	7.2 lbs
Unit of Measure	Each
Country of Origin	USA
Finish	VEL (Polished Stainless-Steel with Mirrored Finish)
Power Supply	12-Volt DC
LED Configuration	Four 3-watt LED Cree chips
Drivers	Two Mean Well drivers
Wire Gauge	20-gauge from base, 18-gauge for connector

Installation & Compatibility

The Grand Slam 960 is designed for straightforward installation with a hidden base wire that mounts discreetly to your vessel's hardtop. Its compatibility with the GS-950 hole pattern allows for easy upgrades, accommodating all top thicknesses without the need for additional clearance underneath.

Performance & Efficiency

Powered by a robust 12-volt DC system, the GS-960 ensures reliable lift and descent of the anchor light with minimal power consumption. The low-draw design (0.6 amps per light) makes it an energy-efficient choice for all types of powered vessels. The high-torque motor, combined with oil-lite bronze bushings, guarantees smooth and consistent operation, enhancing the overall durability and lifespan of the anchor light.

Safety & Compliance

Safety is paramount with the Grand Slam 960. Certified to meet USCG’s 3 nautical mile visibility requirement and NMMA/ABYC C-5 5.8 Standards, it ensures your vessel remains visible and compliant with maritime regulations. The inclusion of a 5A fuse within the Electronic Control Module (ECM) provides additional protection for the device, safeguarding against electrical faults.

Warranty

We stand behind the quality of the Grand Slam 960 Electric Masthead Anchor Light with a 1-year limited warranty, providing you with peace of mind and assurance of its long-term performance.
