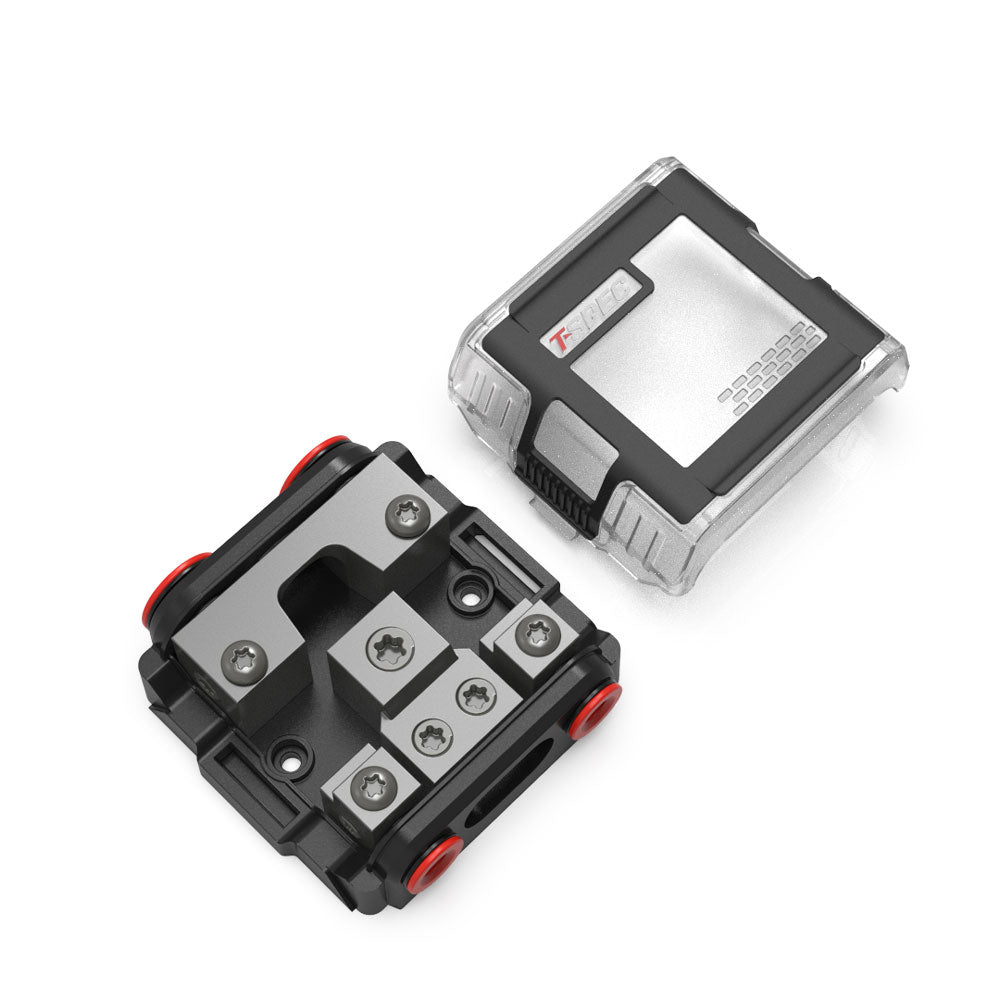

T-Spec VPNB2 MANL 2 Position All-In-One Distribution Block w/Cover

Ensure reliable and efficient power distribution on your marine vessel with the VPNB2 MANL 2 Position All-In-One Distribution Block with Cover. Specifically engineered for the demanding environment of boating, this robust distribution block manages high-current power and ground distribution from two separate power sources, safeguarding your electrical system with integrated mini-ANL fuses.

Product Overview

The T-Spec VPNB2 distribution block is designed to streamline your boat's electrical setup. It handles power distribution from a single 1/0-gauge positive power cable, splitting it into two 4- to 8-gauge power leads, each protected by a mini-ANL fuse (fuses sold separately). Additionally, the block consolidates two ground wires into a single 1/0-gauge ground cable, ensuring a secure and efficient grounding system for your vessel.

Key Features

Feature	Description
Power Input	1/0 to 4 AWG incoming positive power cable
Power Output	Two outputs ranging from 4 to 8 AWG, each protected by a mini-ANL fuse
Ground Connection	Combines two ground wires into a single 1/0-gauge ground cable
Construction	Solid brass with a durable black nickel finish for corrosion resistance
Protection	Water-resistant design with TPE wrapped soft touch and dual size gasket sets
Security	Equipped with T20 Torx® screws and Gate Lock technology to prevent tampering

What's Included

• VPNB2 Distribution Block for both power and ground connections
• Plastic cover (pre-attached)
• 2 Rubber grommets and sleeves for power inputs (installed)
• 2 Rubber grommets and sleeves for power outputs (installed)

Specifications

• Power Input: 1/0 AWG to 4 AWG
• Power Output: 4 AWG to 8 AWG
• Ground Connection: Single 1/0 AWG ground cable
• Material: Solid brass construction
• Finish: Black nickel
• Protection: Water-resistant with dual gasket sets
• Screws: T20 Torx®
• Security Feature: Gate Lock technology

Installation & Use

Installing the VPNB2 MANL Distribution Block is straightforward, making it ideal for both professional marine electricians and DIY boat enthusiasts. Securely mount the distribution block in a dry, accessible location on your vessel. Connect your main positive power cable and ground wires, then route the fused power leads to your essential marine electronics and systems. The included rubber grommets ensure a watertight seal, protecting your connections from the harsh marine environment.

Additional Information

Fuses sold separately.
