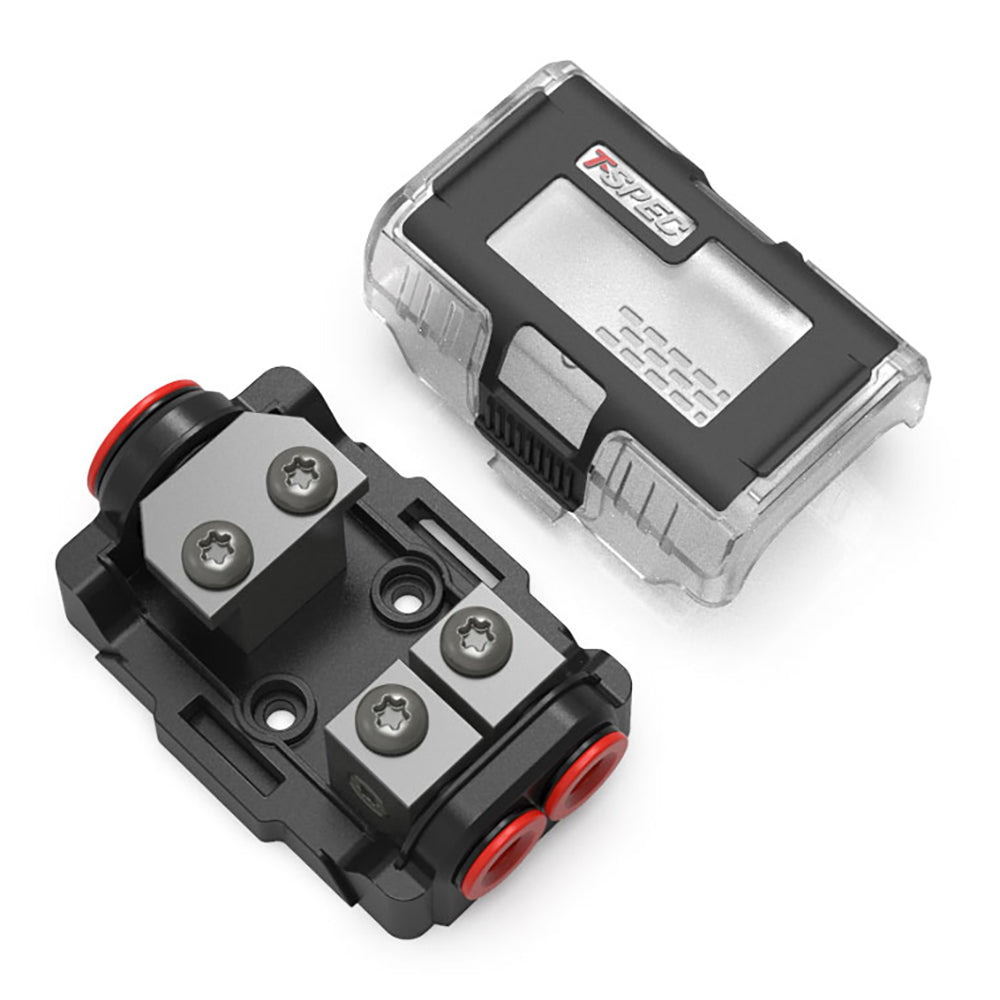

T-Spec VFDB2 MANL 2 Position Distribution Block w/Cover

The VFDB2 MANL 2 Position Distribution Block with Cover by T-Spec is engineered for marine and boating applications, delivering reliable and secure high-current power distribution from a single source to multiple connections. Its robust construction and marine-grade features ensure optimal performance in demanding marine environments.

Product Overview

This compact distribution block efficiently manages the power distribution from one source to two smaller gauge power wires. Designed with the needs of boaters in mind, it ensures that all wiring connections are secure, organized, and safely fused, minimizing the risk of electrical issues on board.

Key Features

Feature	Description
Power Handling	One (1) 1/0 to 4 AWG input to two (2) 4/8 AWG outputs
Construction	Solid black nickel-plated brass ensures reliable power flow and resistance to corrosion in marine environments.
Design	T-Spec's Universal Screw Design accommodates a variety of tools, providing flexibility during installation.
Protection	Impact-resistant polycarbonate cover keeps fuses and connections clean and protected from the elements.
Additional Features	TPE wrapped soft touch for enhanced handling Dual size gasket set for versatile sealing Water-resistant to withstand marine conditions Black nickel finish for aesthetic and protective purposes T20 Torx® screws for secure fastening Gate Lock technology for added security

What’s Included

• One VFDB2 MANL Distribution Block for mini-ANL fuses with one (1) 4 or 1/0 AWG set-screw input and two (2) 4/8 AWG set-screw outputs
• Attached plastic cover
• Three (3) pre-installed rubber grommets and sleeves

Note: Fuses are sold separately.

Specifications

• Input Wire Size: 1/0 to 4 AWG
• Output Wire Size: 4/8 AWG
• Material: Black nickel-plated brass
• Finish: Black nickel
• Mounting: T20 Torx® screws
• Additional Features: TPE wrapped, water-resistant, gate lock technology

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Sold as an Individual Item.
