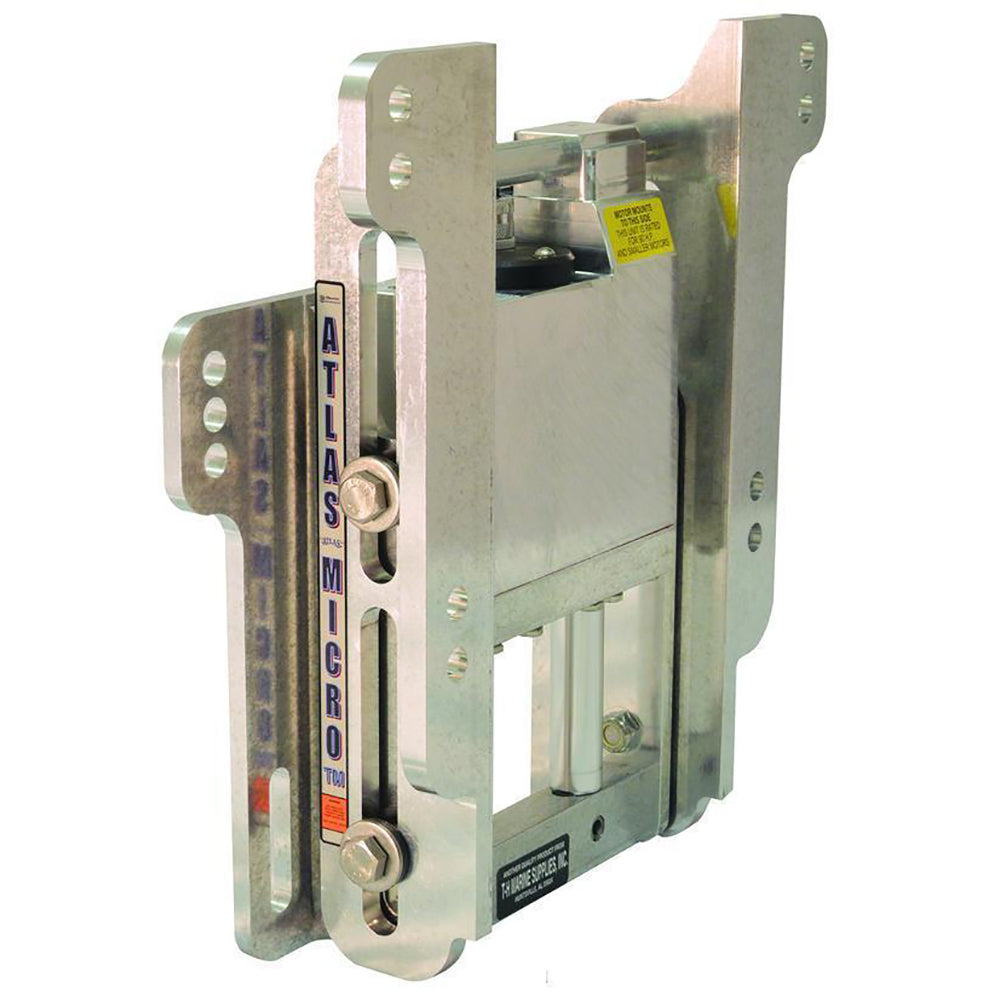

T-H Marine Atlas Micro Jacker Small Outboard Hydraulic Jack - 4"

The Atlas Micro Jacker Small Outboard Hydraulic Jack is the ultimate solution for marine enthusiasts seeking a compact and efficient lifting tool. Designed specifically for small outboards, this hydraulic jack ensures quick and reliable support, enhancing your boating experience with its lightweight and user-friendly features.

Key Features

• Compact & Lightweight: Weighing only 23 pounds and measuring 14-5/8” wide by 11-1/2” high, it is the smallest and lightest hydraulic jack available on the market.
• Rapid Lifting: Capable of lifting your outboard in just 8 seconds, allowing you to get back on the water swiftly.
• High Capacity: Supports a maximum outboard dry weight of 425 pounds and a maximum horsepower of 115 HP.
• Versatile Compatibility: Ideal for a variety of shallow water boats including Gheenoes, River Runners, Jon Boats, and Skiffs.
• Self-Contained Hydraulics: Ensures smooth and reliable operation without the need for additional components.
• Small Footprint: Its compact size ensures it doesn't take up much space in your boat, making storage effortless.

Specifications

Maximum Outboard Dry Weight	425 pounds
Maximum Outboard Horsepower	115 HP
Adjustable Height	5 inches hydraulic lift
Overall Dimensions	14-5/8” Wide x 11-1/2” High
Weight	23 pounds
Lift Speed	8 seconds

Compatibility

The Atlas Micro Jacker is designed to accommodate a wide range of small outboards, making it a versatile choice for various boating needs. Whether you own a Gheeno, River Runner, Jon Boat, or Skiff, this hydraulic jack provides the necessary support to keep your outboard secure and elevated.

Optional Accessories

Clamp-On Motor Adapter (Part # AHJM-CMA-DP): This adapter allows you to mount smaller engines using clamp-on brackets to the Atlas Micro Jacker, especially useful for engines that do not fit the standard BIA engine hole pattern. It offers a four-inch setback, ensuring a secure and stable connection.

Adjustment Specifications

With the Micro Jacker installed, you have approximately 8.5” of available height for adjustments:

1. 1.5” of adjustment at the transom
2. 1.0” on the motor side
3. 1.0” of adjustment with the motor
4. 5” of hydraulic lift with the Micro Jacker itself

Installation & Usage

Installing the Atlas Micro Jacker is straightforward. Simply clamp it onto your outboard motor using the provided set screws or the optional Clamp-On Motor Adapter for compatible engines. Once secured, operate the hydraulic pump to lift or lower your outboard smoothly and efficiently.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
