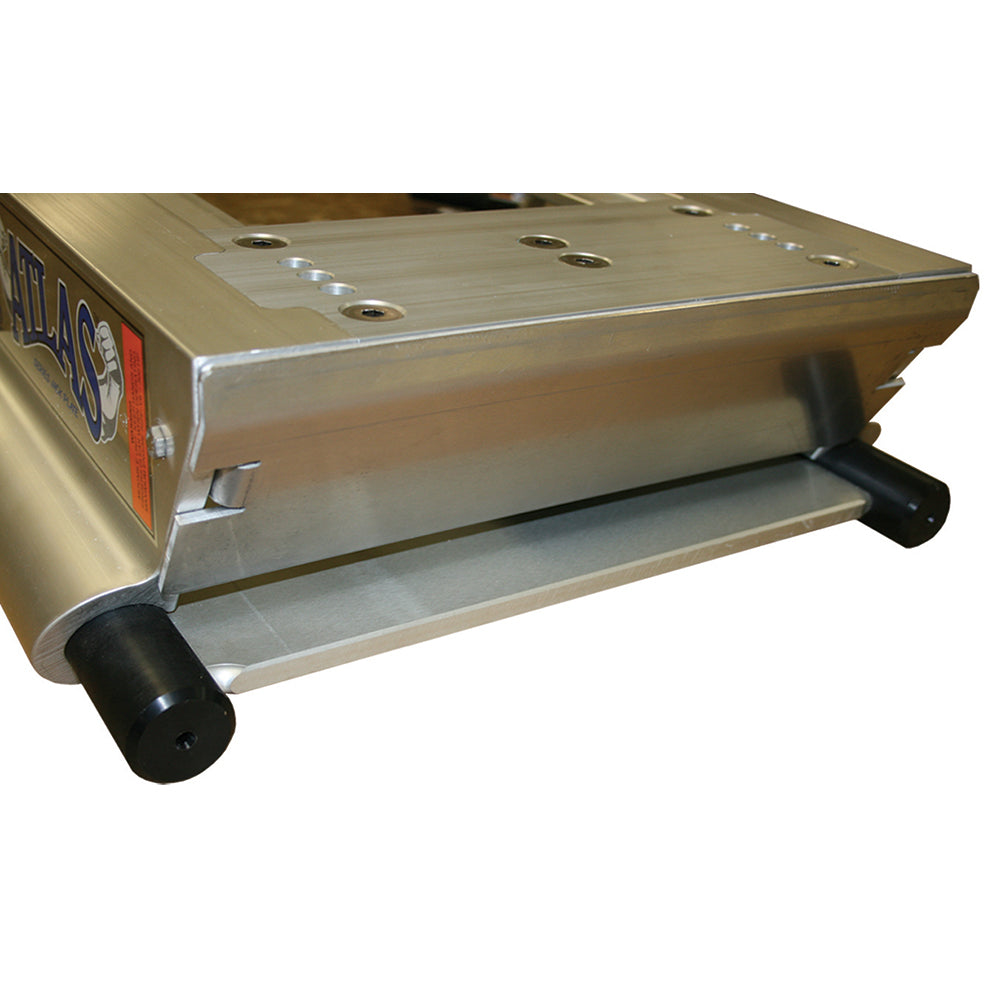

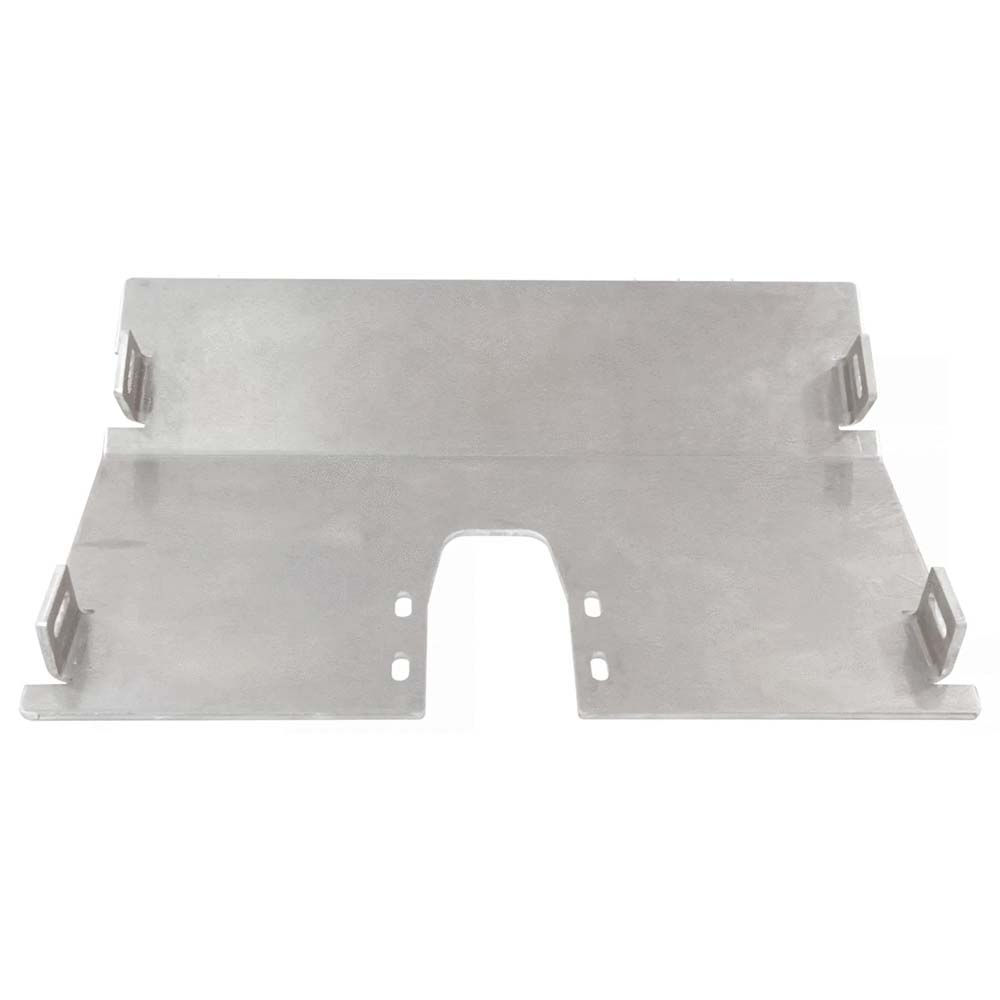

T-H Marine 12" ATLAS Hole Shot Plate w/Transducer Cut Out

The 12" ATLAS™ Hole Shot Plate with Transducer Cut Out is a premium hydraulic solution designed specifically for marine applications. Engineered to support the most powerful V6 and four-stroke engines, this jack plate ensures efficient and reliable lifting of your outboard engine, enhancing your boating experience with its advanced technology and robust construction.

Key Features

• Next-Generation Design: Crafted for heavy-duty performance, the ATLAS™ Hole Shot Plate sets a new standard in jack plate engineering.
• Polymer Rod & Slot Lifting Mechanism: Our high-tech polymer components guarantee smooth and trouble-free operation, even under extreme conditions.
• One-Piece Hydraulics: Integrated hydraulic system offers both speed and self-contained lifting action, ensuring quick and efficient engine lifts.
• Rapid Lifting Capability: Easily lift the heaviest outboards from bottom to top in under 8 seconds, minimizing downtime.
• 12-Inch Setback: Provides versatile mounting options to accommodate a wide range of engine configurations.

Specifications

Benefits

• Durability: Built to withstand the harsh marine environment, ensuring long-lasting performance.
• Efficiency: Quick lifting reduces maintenance time, allowing you to spend more time on the water.
• Ease of Installation: Designed for straightforward mounting and integration with existing systems.
• Reliability: Trusted performance from T-H Marine, a leader in hydraulic design.
• Safety: Enhanced lifting mechanism minimizes the risk of engine damage during lifts.

Installation Instructions

Installing the ATLAS™ Hole Shot Plate with Transducer Cut Out is simple and hassle-free. Follow these steps:

1. Ensure your outboard engine is securely positioned.
2. Align the 12" setback jack plate with the designated mounting points on your engine.
3. Secure the jack plate using the provided bolts and ensure all connections are tight.
4. Connect the hydraulic transducer as per the included wiring diagram.
5. Test the lifting mechanism to ensure proper operation before final use.

Warranty & Support

We stand behind the quality of our products. The ATLAS™ Hole Shot Plate comes with a 2-year warranty covering any defects in materials or workmanship. For installation assistance, troubleshooting, or any other support, our dedicated customer service team is here to help.
