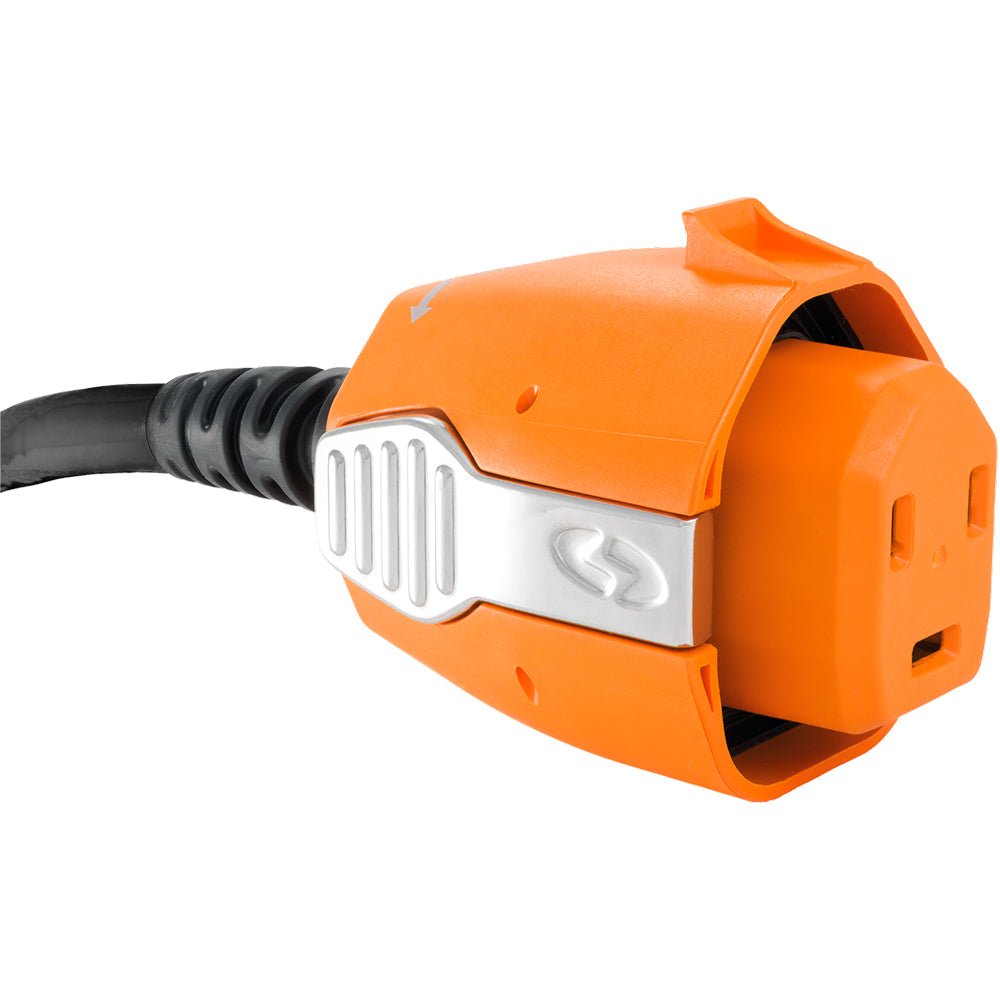

SmartPlug BF30 30 AMP Female Connector

The BF30 30 AMP Female Connector is the perfect solution for marine and boating enthusiasts seeking a reliable and high-performance power connection. Designed specifically for 30 AMP 125 V applications, this connector ensures seamless integration with your existing cordset, providing enhanced safety and durability on the water.

Product Overview

The BF30 connector is engineered for use with 3-wire (125 V) systems, offering a retro-fit option that combines superior performance with user-friendly installation. By simply cutting off the existing cord plug on your RV or boat 30 AMP cord, you can effortlessly upgrade to the SmartPlug connector. This design not only saves time but also ensures a secure and efficient power connection every time.

Key Features

• Eliminates Overheating: Increased pin and clip surface area significantly enhances electrical conductivity, preventing overheating during high amperage demands.
• Ease of Use: The unique plug body shape and push-in design eliminate the need for twisting, ensuring the connector always aligns correctly—even in low-light conditions.
• Multi-Point Locking System: Side clips securely lock the plug into the inlet, reducing stress on the pins and preventing accidental disconnections caused by cord movement.
• Weatherproof Seals: Equipped with multi-fin silicone gaskets in both the inlet cover and plug body, this connector effectively blocks moisture penetration, ensuring reliable performance in harsh marine environments.

Technical Specifications

Voltage	125 V
Current Rating	30 AMP
Configuration	3-Wire
Connector Type	BF30 Female
Material	High-Quality, Corrosion-Resistant Components

Installation Instructions

1. Ensure the power source is disconnected before starting the installation.
2. Cut off the existing cord plug from your RV or boat's 30 AMP cordset.
3. Strip the wires to expose the necessary length for connection.
4. Attach the BF30 Female Connector to the cord, ensuring each wire is securely connected according to the color-coded guides.
5. Engage the spring-loaded side levers to lock the connector into the inlet housing.
6. Verify the connection by gently tugging the cord to ensure it is firmly secured.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Note: Sold individually.
