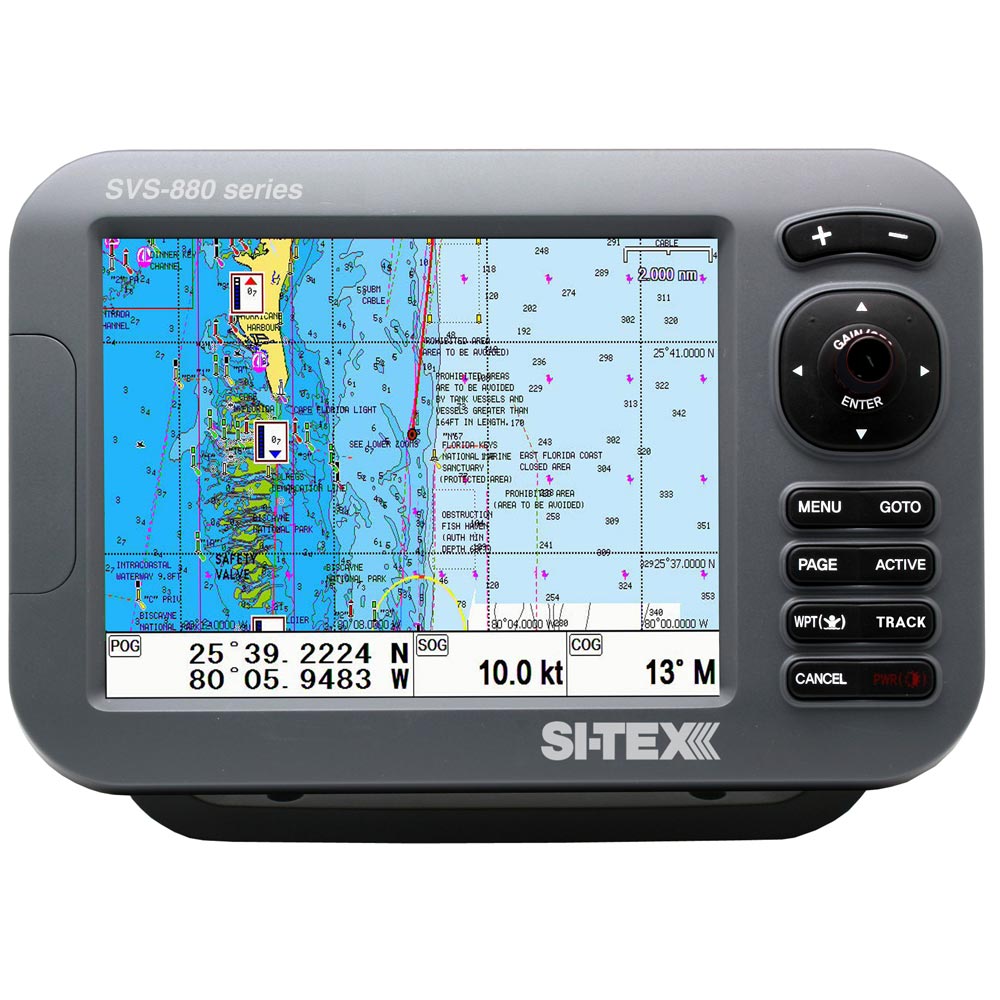

SI-TEX Standalone 8" Chartplotter System w/Color LCD, Internal External GPS Antenna C-MAP 4D Card

The SI-TEX SVS-880CE+ is a state-of-the-art 8-inch chartplotter system designed to enhance your boating experience. Combining high-resolution display, advanced GPS capabilities, and robust charting options, this system is perfect for a wide range of vessels, from small center console skiffs to larger sailboats and light commercial boats. Whether you are navigating calm inland waters or exploring the open sea, the SVS-880CE+ delivers reliable performance and intuitive operation to meet your marine navigation needs.

Key Features

• 8" high-resolution color LCD with LED backlight for excellent visibility in all lighting conditions
• 52-channel GPS for precise and reliable positioning
• Dual fuel charting compatibility with C-MAP and Navionics cartography
• Global GPS compatibility ensures seamless operation worldwide
• Brilliant LED backlighting enhances readability during daylight
• Easy and intuitive user interface for streamlined navigation and control
• Video input support for integrating underwater and on-deck cameras
• Includes a weather protector cover to safeguard the system in harsh conditions

Differences Between SVS-880CE & SVS-880CE+

• The SVS-880CE+ is equipped with an updated Android processor, enhancing performance and responsiveness.
• It exclusively utilizes C-MAP 4D cartridges, providing access to the latest charting data.

General Specifications

Display Screen	8-inch Color LCD with LED backlight
Resolution	SVGA (800 x 600 pixels)
Power Supply	DC 12V-36V (±10%) SVS-880: 4W (without sonar) / 6W (with sonar)
Operating Temperature	Display Unit: -15°C to +50°C Antenna Unit: -25°C to +70°C
Performance Standard	IMO Resolution MSC.112(73)

Chartplotter Specifications

Display Method	Mercator Projection
Display Mode	True motion, N/S/E/W up, Course up, Head up
Latitude Limits	85° N to 85° S
Map Scale	0.05nm to 1500nm
Map Datum	WGS-84
Waypoints	20,000 points 16 selectable colors and icons per point Name tag: 6 alphanumeric characters
Track Points	50,000 points (2 types)
Routes	Up to 100 routes 20 waypoints per route Name tag: 8 alphanumeric characters
Draw Points	1,000 points
Area Names	1,000 points
Chart Data	Standard with Navionics Gold C-MAP MAX optional
Data Output	NMEA-0183
Data Input	NMEA-0183
Alarms	Arrival, Anchor, XTE, Interval timer, Userline

GPS Receiver Specifications

GNSS Receiver Capabilities	GPS - L1 C/A code GLONASS - L1OF/ QZSS - L1 C/A code Galileo - E1B/E1C/L1
Number of Channels	52 channels
Horizontal Positioning Accuracy	Autonomous 2.5m (CEP 50%)
Sensitivity	Acquisition: -148 dBm Tracking: -165 dBm Reacquisition: -162 dBm Navigation Update: 1Hz, 5Hz
Support	DGPS, SBAS (EGNOS, WAAS, MASA, GAGAN)

Sonar Specifications

Display Mode	Normal (single/dual-frequency), Bottom-lock, Bottom-zoom, A-scope
Frequency	50 KHz and 200 KHz (single or dual)
Output Power	600W
Range Speed	600W - 2.5m - 600m
Image Speed	Fixed 8 speeds: 4/1, 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, 1/32 and stop
Rejection	Interference Rejection: 3 levels Noise Rejection: 4 levels
Functions	Gain (auto/manual), Range (auto/manual), Shift (auto/manual) White/Black line Support for speed sensor and water temperature

Additional Specifications

• Cartography Brand: Navionics/C-Map
• Screen Size: 8"
• Touchscreen: No
• Box Dimensions: 11" H x 13" W x 15" L
• Weight: 8.9 lbs
• UPC: 010407102122
