SI-TEX 8.5" Color LCD Radar w/4kW Output - 1/16-36nm Range - 25" Radome

The SI-TEX T-941 Radar is a cutting-edge marine radar system engineered for exceptional target detection and real-time tracking. With a powerful 4kW output and a 25-inch radome, this radar ensures clear visibility and accurate navigation, enhancing safety and efficiency on the water.

Key Features

• Hyper-Digital Processing™ (HDP) Technology: Delivers real-time presentation and superior target discrimination.
• Enhanced Image Clarity: Virtually eliminates unwanted noise, providing a detailed image of targets and improving the detection of smaller objects.
• High-Performance Radome:
  • 4kW peak power output
  • 36 nautical mile detection range
  • 25-inch size for optimal performance

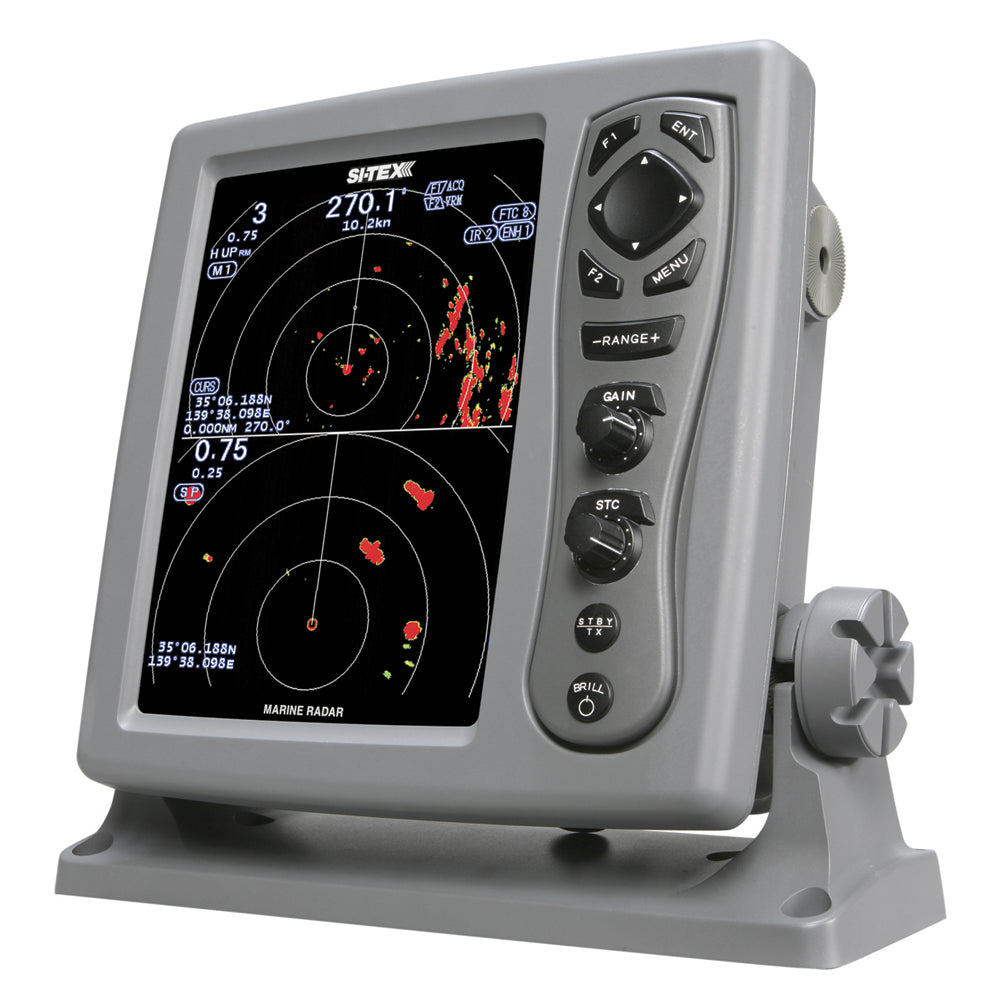

• Brilliant 8.4" Color LCD Display:
  • 480 x 640 pixel resolution with anti-reflective glare coating for outstanding viewing
  • Daylight viewable with true-color radar echoes based on signal strength
  • Real-time presentation ensures smooth movement as bearings change
• Dual-Speed Antenna Rotation:
  • 48 RPM for standard tracking
  • 24 RPM for tracking quick-moving, close-in targets (requires 24V DC input)
• Selectable Range Scales: Adjustable from 1/16 nautical mile to accommodate various navigation needs.
• Warning Zone Alerts: Notifies you of incoming or departing targets crossing your preset guard zones.
• Automatic Hands-Off Tuning: Maintains maximum sensitivity automatically, with manual override available for experienced users.
• RGB Output: Connect up to two optional external monitors for enhanced display capabilities.
• User-Friendly Controls: Easily access all system functions with a well-arranged keypad, programmable function keys, comprehensive menus, and dedicated rotary knobs for instant Gain and STC control.
• Sleek and Waterproof Design: Built-in flush mounting system and IPX5-rated waterproof casing allow versatile installation options.
• Dual Range Radar Function: View split-screen displays of both long and short-range targets simultaneously, such as monitoring a nearby buoy and a distant island at the same time.
• True Trail Function: Differentiates moving targets from stationary ones, accurately displaying the movement of other vessels while keeping land and buoys stationary despite vessel movement.
• CCD Camera Integration: Accepts CCD camera input to display split-screen Radar and Camera views, allowing you to monitor important areas of your vessel while keeping an eye on your surroundings.
• Optional Automatic Tracking Aid (ATA): Track up to 50 user-designated targets with detailed information on distance, speed, bearing, course, and closest point of approach.
• Optional AIS Interface: Displays information on up to 100 AIS targets, including vessel MMSI number, name, course, and speed, aiding in navigation, traffic monitoring, and collision prevention.

Specifications

Antenna Unit

Feature	Specification
Scanner	25" Radome
Peak Power Output	4kW
Output Frequency	9410 + 30MHz
Beam Width	Horizontal: 3.9°, Vertical: 25°
Rotation Speed	24 or 48 RPM (48 RPM standard; 24 RPM requires 24V DC)
Pulse Width	0.08, 0.15, 0.3, 0.5, 1 µs
IF Frequency	60 MHz
Range Accuracy	Better than 8m
Minimum Detecting Distance	Within 25m

Display Unit

Feature	Specification
Display Size/Type	8.4" TFT Color LCD (480 x 640 pixels)
Off Centering	Max 66%
Display Modes	Heads up, North up*, Course up*, WPT up**, True motion*
Indication System	PPI, PPI/PPI, PPI/NAV
Range Scales	1/16, 1/8, 1/4, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 7, 12, 16, 24, 32, 48 NM
Range Rings	1/32, 1/16, 1/8, 1/4, 1/2, 3/4, 1/1.5, 2, 3, 4, 6, 8, 12 NM
Bearing Accuracy	Better than +1°
Video Levels	8 colors
Distant Unit (VRM)	Available in NM, SM, KM
Alarms	Entry or Breakaway (In and Out)
Other Functions	Interference rejection, Target expansion, VRM, EBL, Parallel index, Course position (Lat/Lon), Bearing (true/relative), Trail*, RGB Monitor output, Slave display monitor input/output, External buzzer, CCD camera input
AIS Interface Option	Up to 100 targets
ATA Option	Auto/Manual, up to 50 targets
Input Data Format	BEC, BWC, BWR, DPT, DBT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWD, MWV, RMA, RMB, RMC, VHW, VTG, XTE
Output Data Format	TTM, TLL
Power Requirements	10.8 - 31.2 Volt DC
Power Consumption	55 Watt
Water Protection	Display: IPX5; Antenna: CFR 46 IPX

What's Included

• Display Unit MRD-103 with hardcover
• Connecting Cable 242J158055A - 10m with 2 connectors
• DC Power Cable CW265-2M (2m)
• CCD Camera Cable CW-405-0.3M
• Operation Manual and Quick Reference Guide
• 8A Fuse

Additional Specifications

Feature	Specification
Array Size	25"
Power Output	4kW
Maximum Range	36 NM
Box Dimensions	9" H x 11" W x 14" L
Weight	46.25 lbs
