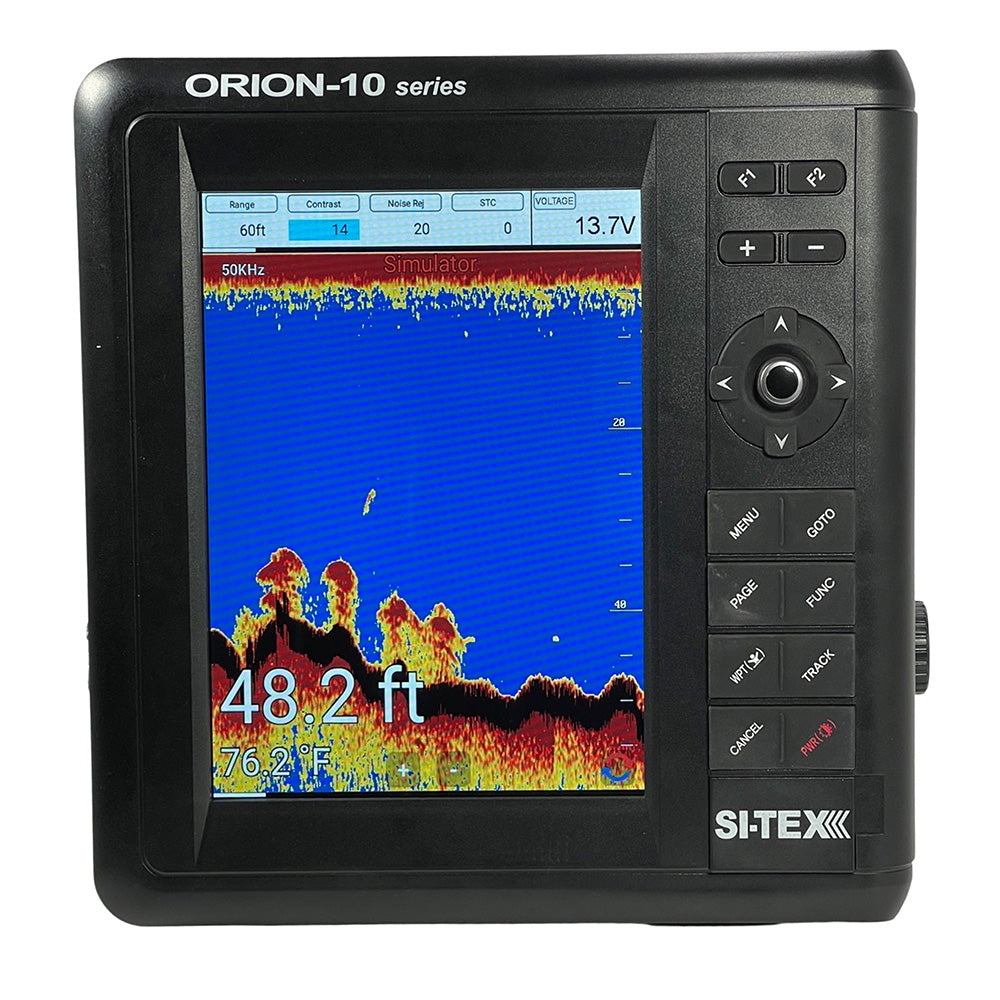

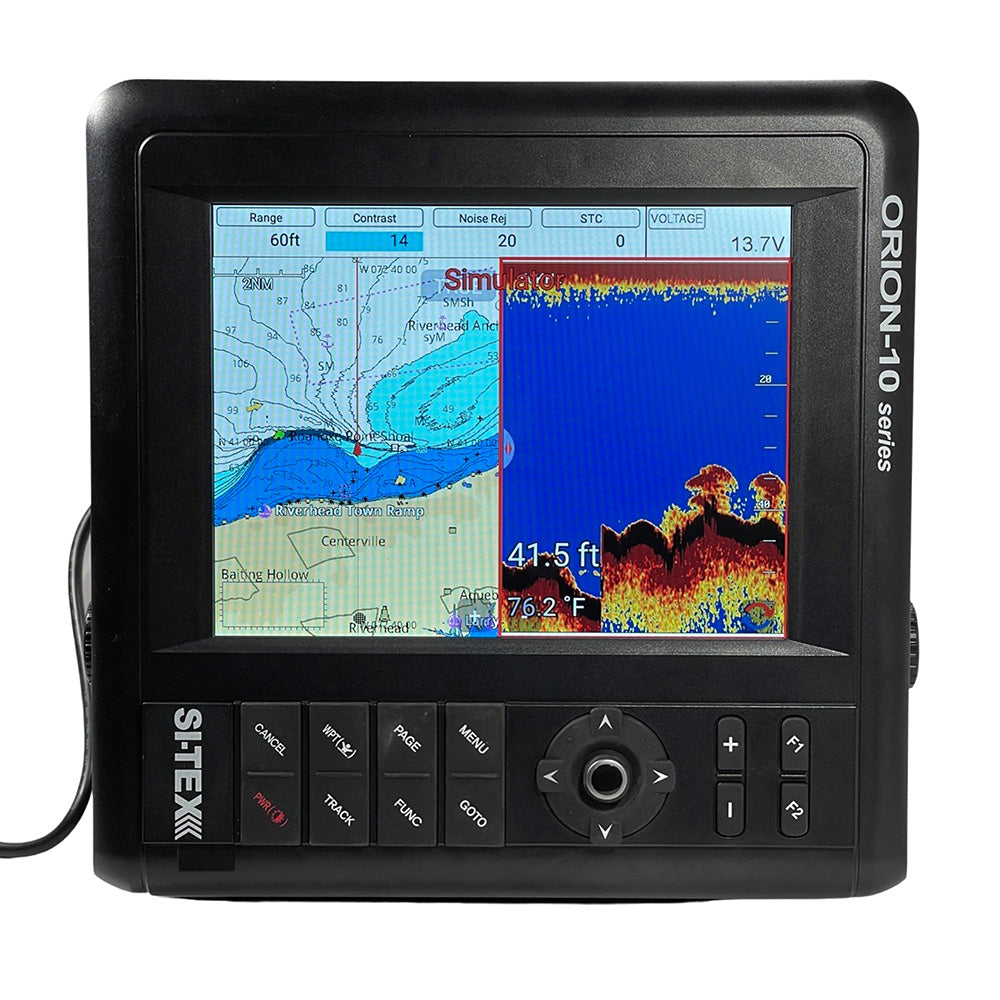

SI-TEX 10" Chartplotter System w/Internal GPS C-MAP 4D Card
SI-TEX 10" Chartplotter System w/Internal GPS C-MAP 4D Card is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Enhance your boating adventures with our advanced 10.4" Chartplotter System, featuring an internal GPS and a C-MAP 4D Cartography card. Designed for marine enthusiasts, this versatile chartplotter offers seamless navigation, customizable display options, and robust connectivity to ensure a reliable and user-friendly experience on the water.
Features
- 100,000 Waypoints: Organize your routes with up to 100,000 waypoints, each customizable with 16 colors, 16 icons, and name tags (up to 8 alphanumeric characters).
- 50,000 Track Points: Record detailed track information with support for two types of track points.
- 100 Routes: Manage up to 100 routes, each accommodating 20 waypoints with individual name tags.
- C-MAP 4D Cartography: Utilize high-quality C-MAP 4D charts for precise and reliable marine mapping.
- Flexible Antenna Options: Features an internal GPS antenna with the option to add a simple passive GPS antenna for enhanced signal reception.
- 52 Channel GPS Receiver: Compatible with U.S. GNSS, Russian GLONASS, and European GALILEO GPS networks for superior positioning accuracy.
- Network Data Connections: Integrates seamlessly with NMEA-2000 and NMEA-0183 networks for expanded connectivity and data sharing.
- Dual Control Interface: Operate the chartplotter using either the responsive 10.4” touch screen or the durable heavy-duty silicone keypad, offering flexibility based on operator preference.
- Customizable Display Orientation: Easily switch between Portrait and Landscape layouts with dual mounting attachment points and a simple menu command to rotate the screen 90° as desired.
- Day/Night Mode: Program the unit to automatically transition between Day Time and Night Time screens at user-selected intervals, ensuring optimal visibility in varying lighting conditions.
- Flush-Mounted Design: Achieve a sleek, professional installation with removable trim pieces that allow the unit to be flush-mounted and securely fastened from the front.
Technical Specifications
| Specification | Details |
|---|---|
| Horizontal Positioning Accuracy | Autonomous 2.5m (CEP 50%) |
| Sensitivity | Acquisition (-148 dBm), Tracking (-165 dBm), Reacquisition (-162 dBm) |
| Navigation Update Rate | 1Hz, 5Hz |
| Latitude Limits | 85°N to 85°S |
| Map Scale | 0.05nm to 1500nm |
| Display Screen | 10.4-inch Color LCD with LED backlight |
| Resolution | SVGA (800 x 600 pixels) |
| Power Supply | DC 12V-36V (±10%), 12W |
| Operating Temperature | -15°C to +50°C |
What's in the Box
- Display Unit
- US C-Map 4D Card
- Protector
- Mounting Bracket
- Bracket Knobs
- Fuse & Bolt
- Power Cable
- Owner's Manual
Additional Specifications
| Specification | Details |
|---|---|
| Cartography Brand | C-Map |
| Internal/External Antenna | Internal |
| Screen Size | 10.4" |
| Touchscreen | Yes |
| Box Dimensions | 10"H x 15"W x 15"L |
| Weight | 13 lbs |
| UPC | 010407111919 |
