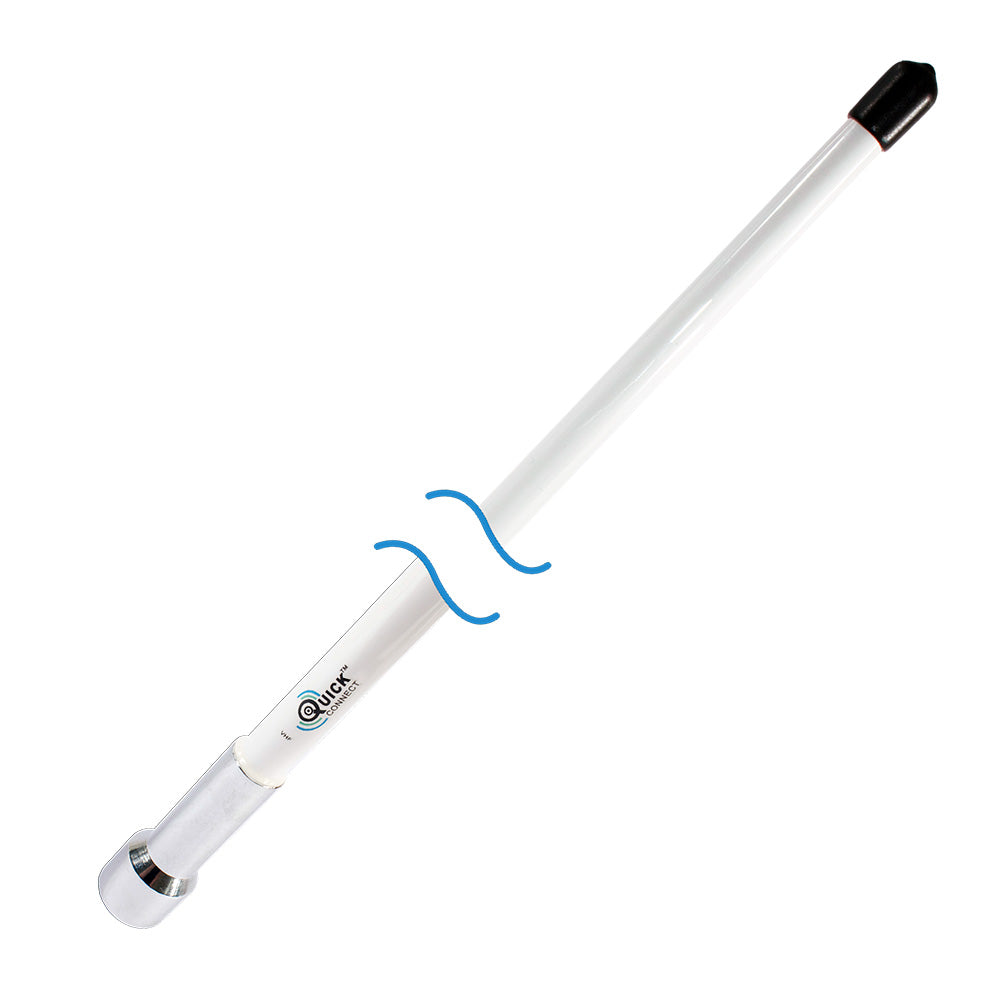

Shakespeare VHF 8 QuickConnect 6dB f/QCM Series Mounts

Enhance your marine communications with the VHF 8' QuickConnect™ 6dB antenna, specifically designed for QCM Series Mounts. This antenna offers a perfect blend of performance and convenience, allowing you to effortlessly connect and disconnect your VHF system whenever needed.

Key Features

• QuickConnect™ System: Easily attach or detach the antenna with a simple screw or unscrew mechanism, providing hassle-free installation and removal.
• Splash Protection Cap: Safeguards the connector on the mount when the antenna is disconnected, ensuring durability and longevity in harsh marine environments.
• Centerpin® PL-259 Connector: Comes with an easy crimp-on connector for reliable signal transmission.
• Included Base Connector: Designed for use with QuickConnect™ mounts, making setup straightforward and efficient.
• High Performance: Single section antenna with a VSWR of <1.5:1 at 156.8 MHz ensures optimal signal clarity and range.
• Power Handling: Supports a maximum input power of 50W, suitable for most marine VHF radios.
• Wide Bandwidth: Offers a bandwidth of 5 MHz within a VSWR of 2.0:1, enhancing communication reliability.
• Non-DC Ground: This antenna does not include a built-in DC ground connection, allowing for customizable grounding solutions.

Technical Specifications

Parameter	Details
Antenna Band	VHF
Color	White
Construction	Fiberglass
Length	8 feet (96")
Box Dimensions	3" H x 3" W x 95" L
Weight	3.75 lbs
UPC	719441173111

Why Choose the VHF QuickConnect™ Antenna?

The QuickConnect™ antenna offers unparalleled convenience for boaters who need flexible antenna setups. Whether you're docking at shore or cruising offshore, the ability to quickly connect or disconnect your VHF antenna ensures that you can adapt to different conditions with ease. Combined with robust construction and high-performance specifications, this antenna is a reliable choice for enhancing your marine communication system.

Installation Instructions

Installing the VHF 8' QuickConnect™ Antenna is straightforward. Follow these steps:

1. Mount the base connector to your QCM Series mount using the provided hardware.
2. Attach the antenna to the base connector by screwing it clockwise until securely fastened.
3. If needed, unscrew the antenna by turning it counterclockwise to disconnect and protect with the splash protection cap.
4. Ensure all connections are tight and weatherproofed for optimal performance.
