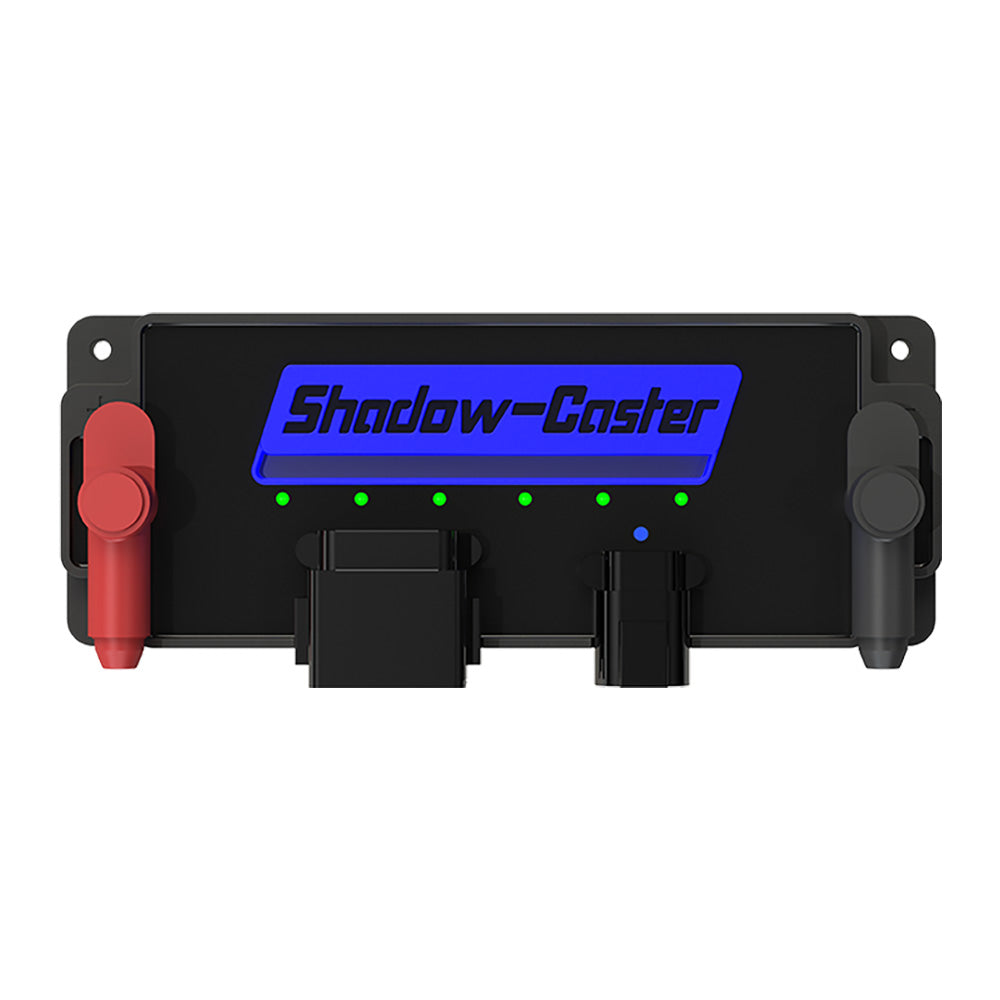

Shadow-Caster 6-Channel Digital Switch Module Shadow-NET Control f/Single Color 3rd Party Lighting

Optimize your marine lighting system with the 6-Channel Digital Switch Module, engineered specifically for the demands of boating environments. This robust module effortlessly integrates standard and third-party lighting fixtures with the reliable Shadow-NET™ interface, providing seamless control through the Shadow-Caster™ MFD interface and an intuitive smartphone app. Whether navigating calm waters or enduring harsh marine conditions, this switch module ensures your boat's lighting operates smoothly and efficiently.

Advanced Features for Marine Applications

• Six independent digital switches offer flexible control over multiple lighting circuits
• Compatible with a wide range of marine light brands via the Shadow-Caster™ MFD interface and mobile application
• Digital overcurrent fault protection safeguards your electrical system against potential faults
• Manual switch override provides immediate control in case of interface failure
• Green and red LEDs display real-time status for each channel, enhancing monitoring capabilities
• Full integration with Shadow-NET™ ensures unified control across all connected devices
• Blue backlight clearly indicates the power state, simplifying on-deck inspections during low visibility

Technical Specifications

Operating Voltage	12V / 24V DC
Current Rating	10 Amps per channel
Power Lugs	5/16” size for secure connections
Connector Type	IP67 rated Deutsch connectors for maximum water and dust resistance
Protection	Includes power lug protection boots to prevent corrosion and ensure longevity

Package Contents

• 1 x 6-channel digital power switch module
• Mounting hardware (4 #8 PH screws, 0.5” length)
• Pre-wired mating connectors for straightforward installation
• Comprehensive 3-year standard warranty for reliable performance

For detailed installation instructions and user guidance, please refer to our Quick Guide (PDF).
