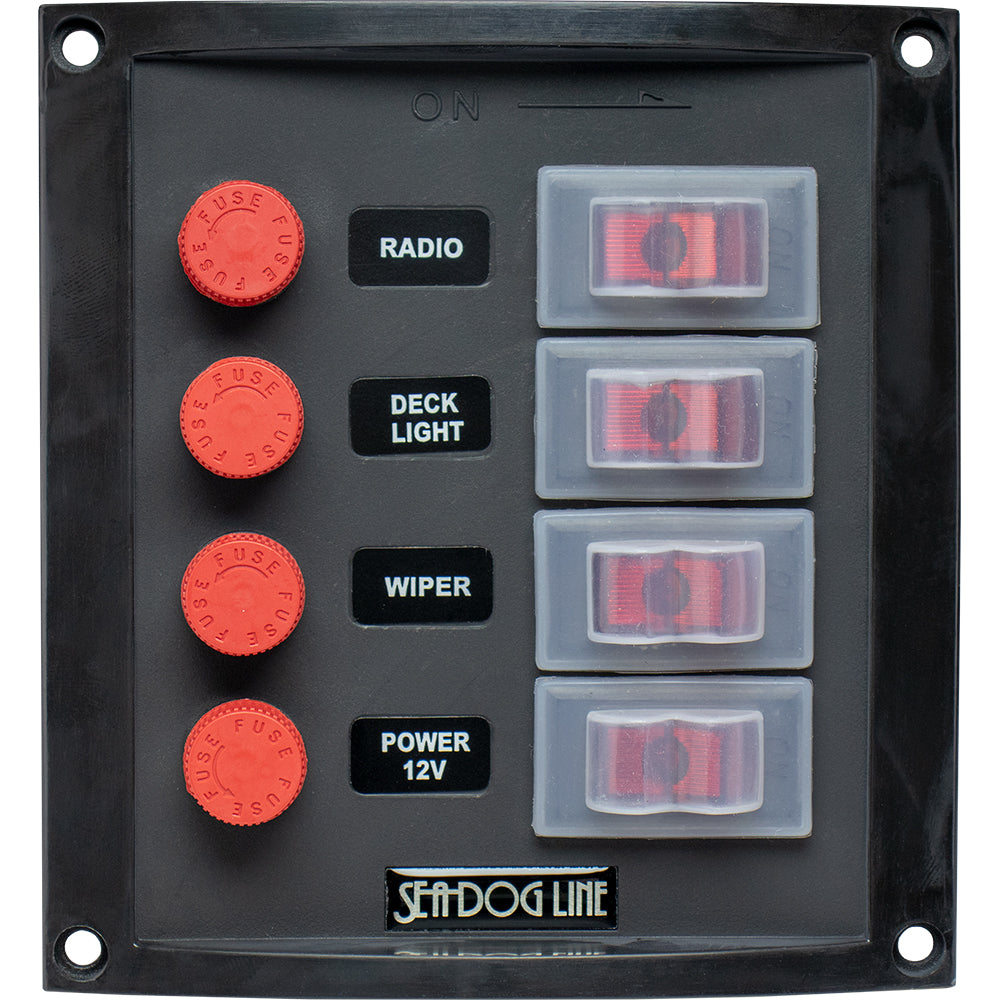

Sea-Dog Splash Guard Switch Panel Vertical - 4 Switch

Upgrade your marine electrical system with the Splash Guard Switch Panel Vertical - 4 Switch, engineered to deliver reliable control and protection in your boat’s engine room and other critical areas. Designed specifically for the demands of the marine environment, this switch panel ensures durability and ease of use even in challenging conditions.

Features

• Four Illuminated Rocker Switches: Equipped with four 15A 12VDC SPST On/Off rocker switches, providing clear visibility and easy operation in low-light conditions.
• Integrated Fuse Holders: Includes four fuse holders compatible with standard AGC 1/4” x 1-1/4” glass fuses, ensuring each circuit is protected with individual 10A max and a total of 37A.
• Splash Guard Covers: Features splash guard switch covers to protect against light spray and water, making it ideal for areas exposed to moisture (note: not designed for total immersion).
• Fire Resistant Construction: Made from injection-molded nylon, the panel offers fire resistance, enhancing safety in engine room compartments.
• Customizable Design: Comes with a sheet of 20 preprinted decals, allowing you to personalize each switch for your specific application.

Specifications

Parameter	Details
Voltage	12VDC
Current Rating	Individual Circuit: 10A max Total: 37A
Switch Type	4-Gang Rocker Switches
Fuse Type	AGC 1/4” x 1-1/4” Glass Fuses
Material	Injection Molded Nylon
Compliance	CE Compliant
Mounting	Includes mounting gasket; installs with four #6 RH fasteners (not included)

Installation

Installing the Splash Guard Switch Panel Vertical - 4 Switch is straightforward. Follow these steps to ensure a secure and functional setup:

1. Choose the desired location, preferably in the engine room or another protected compartment.
2. Align the mounting gasket with the panel’s mounting points.
3. Secure the panel using four #6 RH fasteners (not included).
4. Connect the rocker switches to your electrical system, ensuring each fuse holder is fitted with the appropriate AGC fuse.
5. Customize the switches using the provided preprinted decals for easy identification.

Durability and Protection

The Splash Guard Switch Panel is built to withstand the harsh marine environment. Its splash guard covers protect the switches from light spray and water, while the fire-resistant nylon construction adds an extra layer of safety in critical areas like the engine room. This panel is not designed for total immersion, so it’s ideal for areas with minimal exposure to moisture.

Customization

Personalize your switch panel with the included 20 preprinted decals. Easily label each switch to correspond with specific functions on your vessel, enhancing usability and reducing the risk of operational errors.

Safety and Compliance

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

The Splash Guard Switch Panel Vertical - 4 Switch is CE compliant, ensuring it meets European safety and environmental standards for marine equipment.
