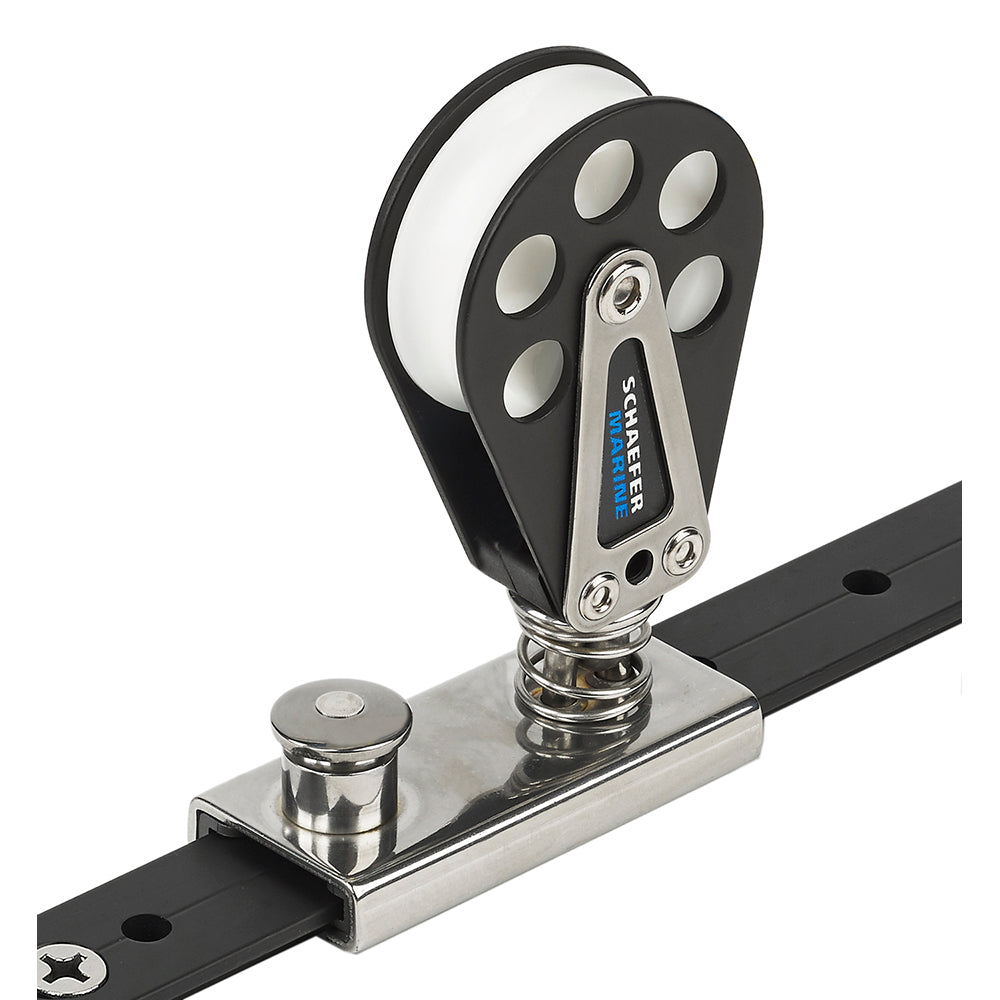

Schaefer Spring Loaded/Lined Slide/Aluminum f/1" T-Track

The Spring Loaded Lined Slide/Aluminum for 1" T-Track is engineered for superior performance in marine applications. Designed to withstand the demanding conditions of boating environments, this high-quality slide ensures smooth operation and dependable load handling, making it an essential component for your boat's T-track system.

Key Features

• Durable Construction: Anodized aluminum cheeks combined with a stainless steel slider offer exceptional reliability and longevity, even in harsh marine conditions.
• Smooth Operation: The Delrin™ sheave facilitates effortless movement while maintaining a high safe working load, ensuring your equipment operates seamlessly.
• Easy Adjustment: Equipped with a polyethylene liner and pin stop for quick and straightforward adjustments, enhancing overall usability and efficiency.
• Optimal Compatibility: Specifically designed for 1" T-Track systems, accommodating a variety of boating setups and configurations.

Specifications

Specification	Details
Track Size	1" x 1/8" (25 mm x 3 mm)
Maximum Boat Length	27' (8 m)
Maximum Boat Weight	5000 lbs. (2270 kg)
Sail Area	315 sq. ft (29 m²)
Sheave Diameter	2" (51 mm)
Maximum Line	7/16" (11 mm)
Length	3" (76 mm)
Width	1-1/4" (31 mm)
Height	4-5/32" (105 mm)
Bearing Height	2-7/32" (56 mm)
Safe Working Load (SWL)	1750 lbs. (795 kg)
Weight	7.0 oz. (198 g)
