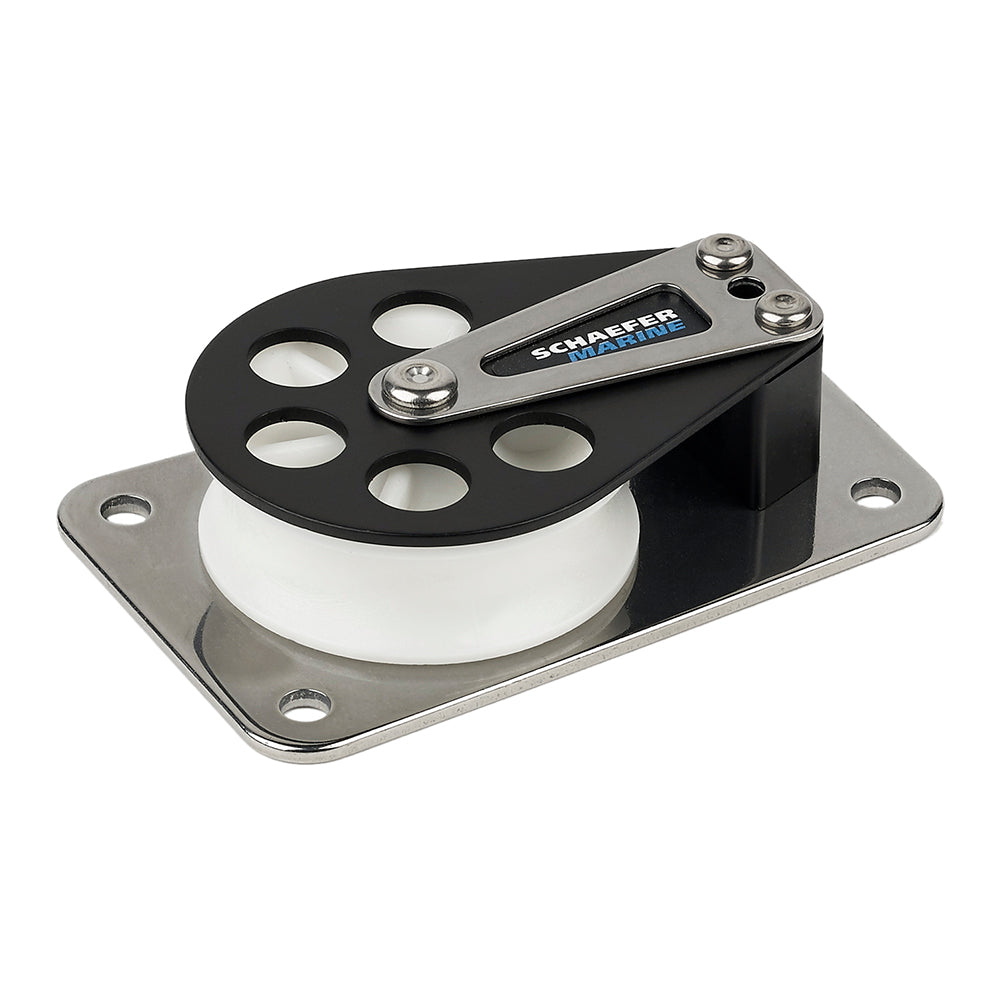

Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave

Ensure smooth and reliable operation on your vessel with our Series 7 Flat Base Sheave, featuring an aluminum cheek and high-quality Delrin™ sheave. Designed specifically for marine applications, this sheave offers exceptional strength and durability, making it an ideal choice for boating enthusiasts and professionals alike.

Key Features

• Delrin™ Sheave: Provides smooth operation and a high safe working load, ensuring reliability even under demanding marine conditions.
• Stainless Steel Base: Distributes loads across a large surface area, reducing stress and prolonging the life of your rigging.
• Aluminum Construction: Lightweight yet robust, the aluminum cheek enhances performance without adding unnecessary weight.

Specifications

Specification	Measurement
Sheave Diameter	2-3/8" (60 mm)
Maximum Line Size	1/2" (13 mm)
Length	4-3/8" (111 mm)
Width	2-3/4" (70 mm)
Height	1" (25 mm)
Fasteners	4 x 1/4" RH (6 mm)
Center to Center (C/C)	3-5/8" (92 mm)
Wide End C/C	2" (51 mm)
Narrow End C/C	1-9/16"
Safe Working Load (SWL)	2250 lbs. (1020 kg)
Weight (Aluminum)	9.6 oz. (272 g)
