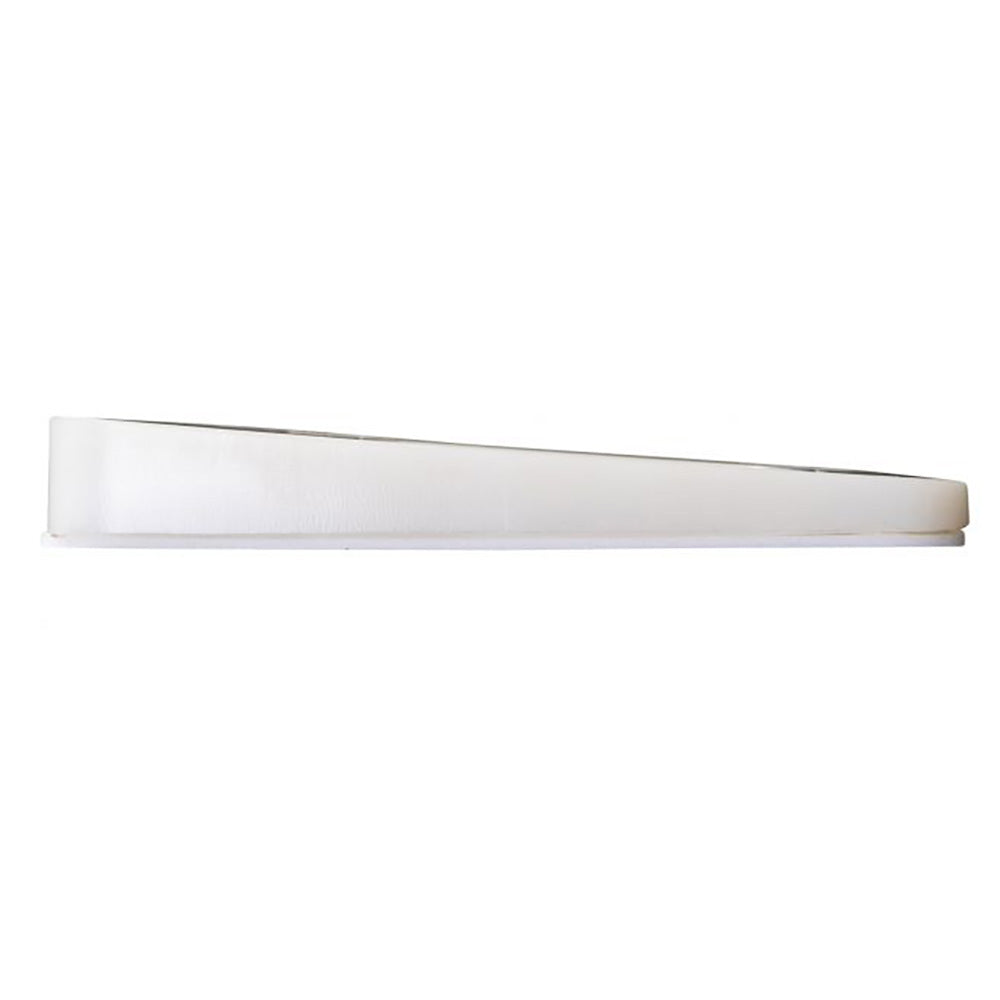

Scanstrut WD-OPNARY-01 Top Plate f/PowerTower Open Array Mounts - 4

Optimize your radar’s performance with the WD-OPNARY-01 Top Plate, specifically designed for PowerTower® Open Array Mounts. This marine-grade, UV-stable wedge ensures your radar maintains a precise 4° downward angle, providing a level horizon even when your vessel is in motion.

Product Features

• Improves radar accuracy by angling the radar 4° below horizontal
• Constructed from durable, marine-grade polymer for long-lasting performance
• UV-stable materials resist harsh marine environments
• Universal compatibility with most radar manufacturers’ radomes
• Easy installation between PowerTower® mount and radar base

Compatibility

The WD-OPNARY-01 Top Plate is compatible with a wide range of radar models from leading manufacturers, including:

• Furuno: Models 1762, 1932, 1934, 1942, 1944, 1954, 851, DRS12A (6'), DRS12A (4'), DRS25A (4'), DRS25A (6'), DRS4A, DRS6A / DRS6A X CLASS, DRS6A-NXT
• Garmin: GMR Fantom 254, 256, 54, 4, 6, GMR™ 1224 xHD2, 1226 xHD2, 2524 xHD2, 2526 xHD2, GMR™ 404, 406, GMR™ 424 xHD2, GMR™ 624 xHDS2, GMR™ 626 xHD2
• Navman: 8000 Series (8084/8120) 4' radars
• Nobeltec: 4kW / 6kW radars
• Raymarine: 5S / 9S / RA1048HD / RA1048SHD, 7S / 11S / RA1072HD / RA1072SHD, Cyclone 3', 4', 6', Magnum 4ft 4kW/12kW, Magnum 6ft 4kW/12kW

Technical Specifications

Material	Marine Grade Polymer
Dimensions (L x W)	9.69" x 9.69"
Angle	4°
Construction	Polymer
Type	Wedges
Box Dimensions	2"H x 10"W x 10"L
Weight	2 lbs
UPC	5060114795952

What's in the Box

• WD-OPNARY-01 Top Plate Wedge
• Base Seal
• Instruction Manual

Sold individually

Additional Resources

For detailed installation instructions, please refer to the Quick Guide (PDF).
