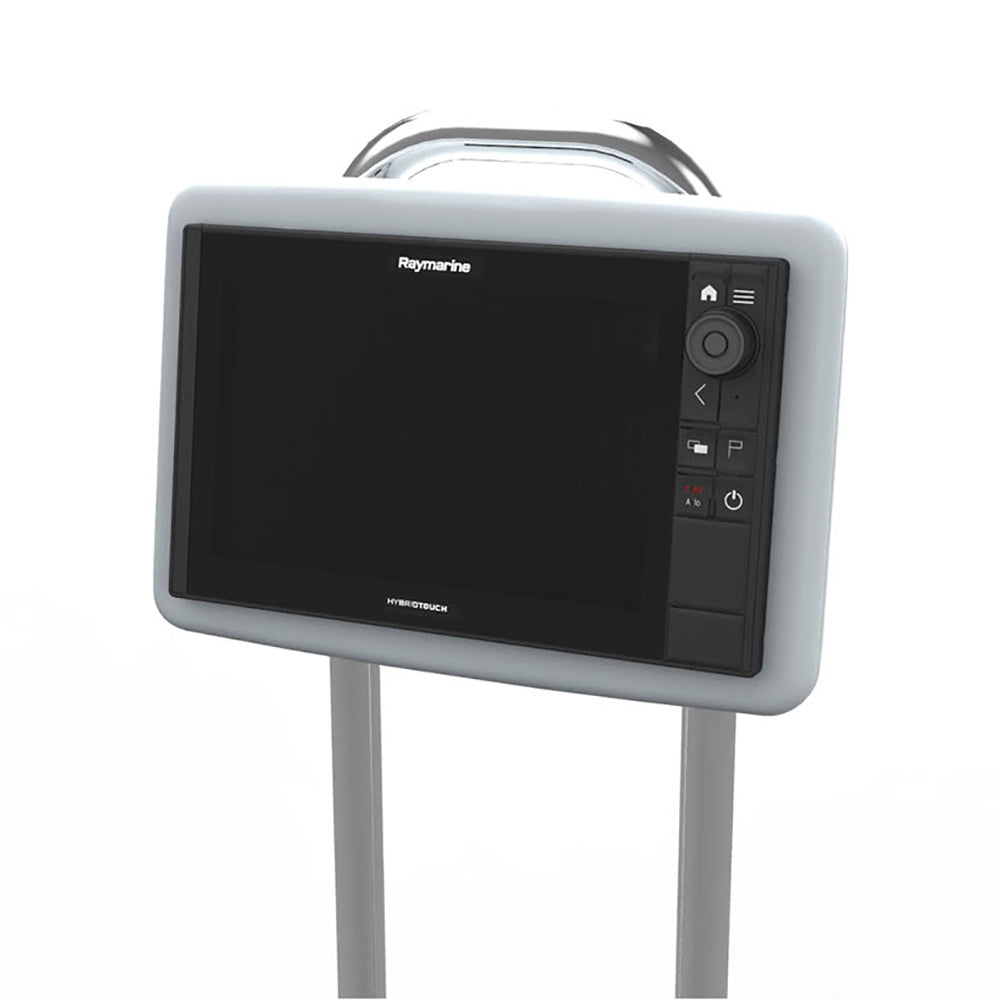

Scanstrut Scanpod Helm Pod Uncut f/10" to 12" Displays

The Scanpod Helm Pod Uncut is the ultimate mounting solution for 10" to 12" marine displays, designed to enhance any boat's cockpit configuration. Whether you're integrating radar systems, chartplotters, or standard navigation instruments, the Scanpod offers versatile and customizable options to meet your specific boating needs.

Key Features

Universal Helm Fixing

The Scanpod Helm Pod accommodates pedestal rails with diameters ranging from 25mm to 33.7mm (0.98″ – 1.33″). Its innovative clamping system allows the pod to fit rail widths starting from 178mm (7”) and upwards, providing a secure and adaptable mounting solution for various marine cockpit setups.

Secure & Watertight Installation

Engineered with a saddle system that supports stainless tubing, the Scanpod ensures a secure and rigid fit onto any pedestal. This design also guarantees a watertight seal at the cable entry point, protecting your electronic instruments from harsh marine environments.

No Drill Fixing Kit

Installation is made easy with customized U-bolts that wrap around the rail and pass through the saddles into the back of the pod. This eliminates the need for time-consuming and potentially damaging drilling of the stainless rail, ensuring a hassle-free setup.

Hassle-Free Install & Service

The Scanpod features fixings that insert from back to front, seamlessly cutting their threads into injection-molded ABS inserts integrated into the pod front. This thoughtful design allows for quick and safe installation, as well as easy maintenance or servicing when needed.

Increased Protection

Manufactured with a high tear strength silicone seal, the Scanpod Helm Pod offers superior protection against the elements. Its exceptional resistance to heat and UV exposure ensures long-lasting performance without deterioration over time, making it ideal for marine applications.

Supplied Uncut

The Scanpod Helm Pod is supplied uncut by default, providing you with the flexibility to customize the pod to your specific requirements. For larger orders, a factory cutting service is available to efficiently meet your volume needs.

Specifications

Usable Face	14.7"W x 9.7"H
Mounting Style	Pedestal
Cut/Uncut	Uncut
Box Dimensions	8"H x 11"W x 17"L
Weight	6.4 lbs
UPC	5060114797260
