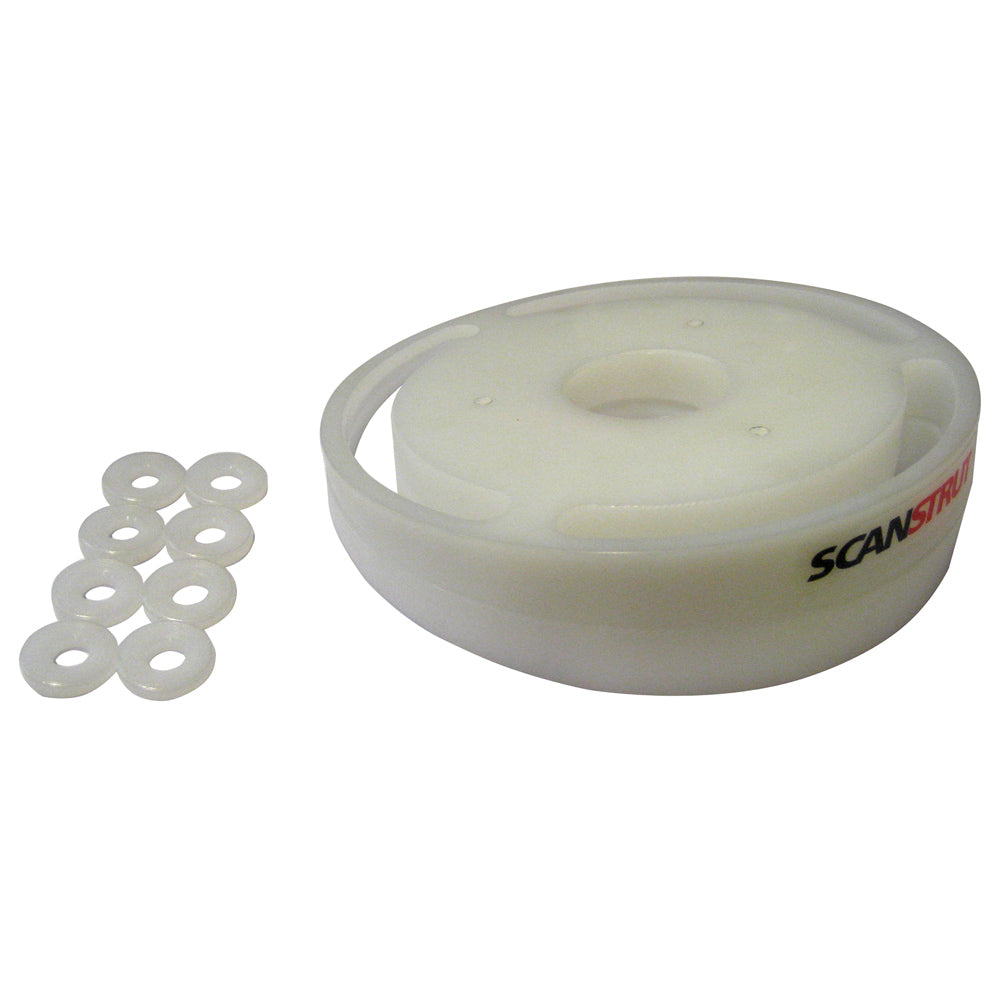

Scanstrut SC50 Adjustable Wedge f/Satcom Mounts

The SC50 Adjustable Wedge for Satcom Mounts is the perfect solution for boat owners seeking a reliable and versatile way to achieve a level mounting surface for their Satcom antennas. Engineered to work seamlessly with Scanstrut satcom mounts, this adjustable wedge ensures optimal antenna performance, even on boats with varying deck angles.

Compatibility

The SC50 Adjustable Wedge is specifically designed to be compatible with the following Scanstrut satcom mounts:

• SC35 Satcom Mount
• SC45 Satcom Mount
• SC45R Satcom Mount
• SC65 Satcom Mount

Key Features

• Adjustable Angles: Easily counter-rotate the angled discs to achieve a horizontal mounting surface, accommodating slopes from 0° to 12°.
• Flexible Mounting: A channel system inside the discs allows unrestricted positioning of antenna mounting bolts for precise installation.
• Stable Fastening: Comes with 4 pairs of 6° angled washers that provide a level and secure fastening surface for antenna mounting bolts.
• Durable Construction: Made from marine-grade polymer, ensuring long-lasting performance in harsh marine environments.
• Watertight Design: Fitted with watertight base seals to protect against water ingress and corrosion.

Technical Specifications

Material	Marine Grade Polymer
Type	Adjustable Wedges
Adjustable Range	0° to 12°
Box Dimensions	2"H x 8"W x 9"L
Weight	1.45 lbs
UPC	5060114790506

What's Included

• 2 Counter-rotating angled discs (0° to 12°)
• 4 Pairs of 6° Angled Washers
• Mount Seal
• Instruction Manual

Sold as an individual unit.

Additional Specifications

• Construction: Polymer
• Height: Not Applicable
• Box Dimensions: 2"H x 8"W x 9"L
• Weight: 1.45 lbs
• UPC: 5060114790506

Download the Quick Guide (PDF)
