Scanstrut  |  SKU: LOS-38055  |  Barcode: 5060114792814

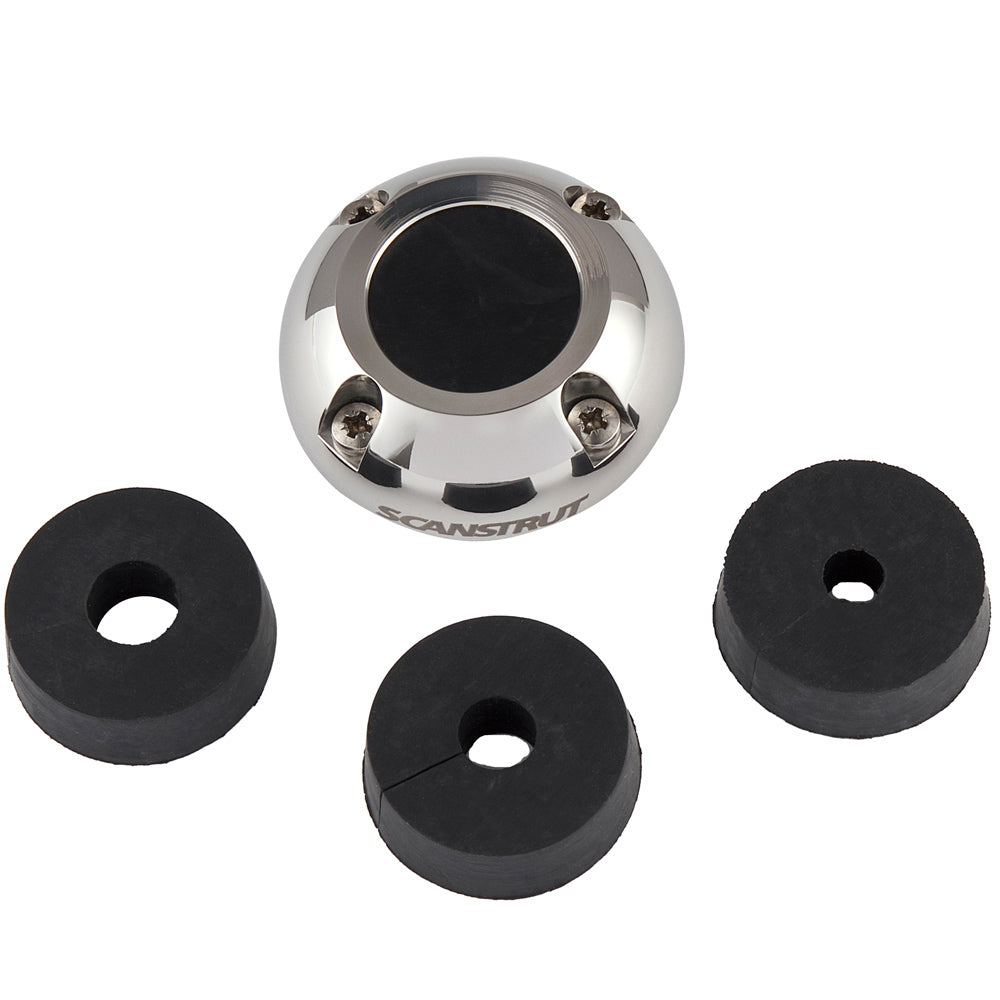

Scanstrut DS30-S Vertical Cable Seal - Stainless Steel

$58.99 USD $86.99

Product Description

Ensure your marine electrical installations are secure and watertight with the DS30-S Vertical Cable Seal. Crafted from durable stainless steel, this premium seal is specifically designed for marine and boating applications, providing reliable protection against the harshest marine environments.

Features

  • 100% Waterproof Installation: Achieves an IP68 rating, ensuring complete protection against water ingress.
  • Effortless Installation: Comes with both pre-drilled and blank inner seals, simplifying the installation process and reducing downtime.
  • No Connector Removal Required: The split-seal design allows installation without the need to remove cable connectors, saving time and preserving connector integrity.
  • Impact-Resistant Dome Shape: The multi-functional dome design not only enhances aesthetics but also provides additional protection against impacts and water intrusion.

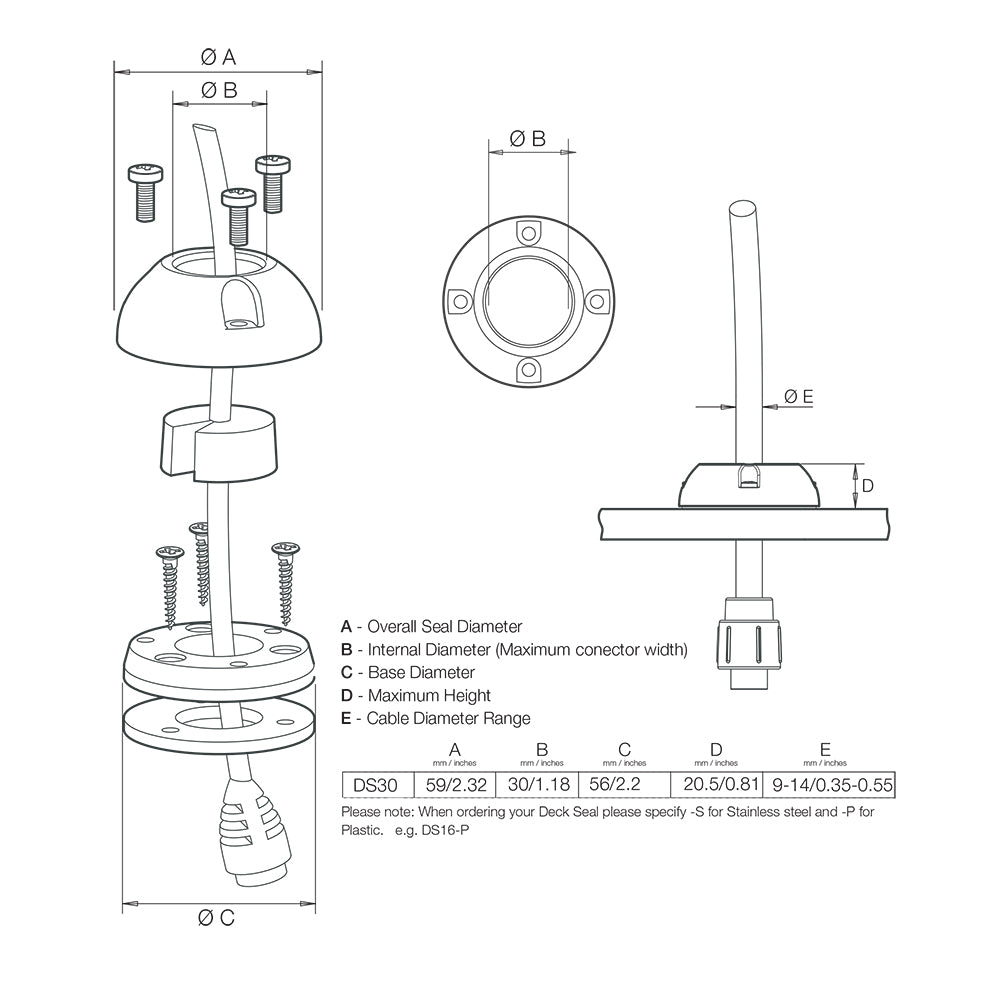

Technical Specifications

Parameter Specification
Compatible Cable Diameter 0.35" to 0.55" (9 - 14 mm)
Maximum Connector Diameter 1.18" (30 mm)
Height 0.81" (20.5 mm)
Color Stainless Steel
Orientation Vertical
Material Stainless Steel

What's Included

  • DS30-S Cable Seal
  • Mounting Hardware
  • Installation Manual

Note: Sold as an individual unit.

Additional Specifications

  • Type: Deck Seal
  • Box Dimensions: 1" H x 4" W x 6" L
  • Weight: 1 lb
  • UPC: 5060114792814

Resources

Installation Video
