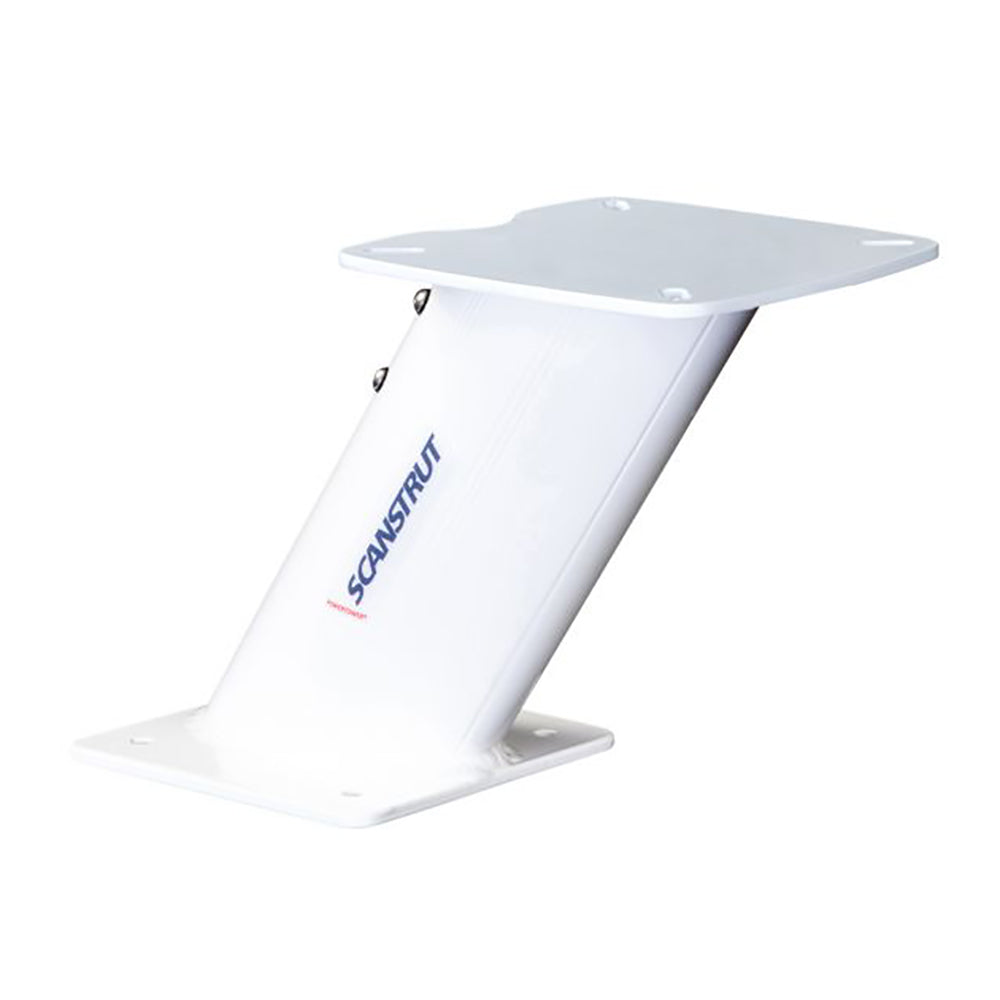

Scanstrut APT-F-150-02 Aluminum PowerTower Radar Mount - 6" Forward Leaning

The APT-F-150-02 Aluminum PowerTower® Radar Mount offers unparalleled strength and durability for marine radar installations. Crafted from premium marine-grade aluminum, this forward-leaning mount ensures your radar system is elevated for optimal performance, providing clear horizon views and enhanced reliability in all boating conditions.

Product Overview

The Scanstrut Aluminum PowerTower® is meticulously engineered as a single 'monocoque' structure, eliminating joints to deliver exceptional strength and a flawless surface finish. Designed specifically for powerboats, this radar mount seamlessly installs on roofs, T-tops, flybridges, or radar arches, ensuring your radar remains unobstructed and fully functional.

Compatibility

The PowerTower® Radar Mount is versatile and compatible with a wide range of modern radar systems. Below is a comprehensive list of supported brands and models:

• Furuno: 1621, 1622, 1623, 1715, 1724, 1734, 1824, 1832, 1834, 1835, DRS2D, DRS2D-NXT, DRS42DL, DRS42DL+, DRS4D, DRS4D-NXT, DRS4W, 18" and 24" NavNet radars
• Humminbird: AS 21RD4KW radar
• Intellian: i1 radar
• Interphase: Mini RE-1, RE-8 radars
• JRC: 1000, 1000mk2, 1066, 1500, 1500mk2, 1800, 2000, JMA 2343 / 5104 (Radome: NKE-2042) radars
• Koden: 2kW 12" radar
• KVH: TracVision M1 and TV1 radars
• Lowrance: 3G/4G, LRA-1800 / RB714A / DX42, LRA-2400 HD radars
• Majestic: SATMAR32 radar
• Navman: 18" and 24" Series 8000 radars
• Nobletec: 2kW (20") radars
• Northstar: 18" and 24" M Series/8000i radars
• Raymarine: 33STV radar
• Seiwa: SWR-1, 8, and 9 radars
• Simrad: 3G/4G, GB40 / NX40/45 / NSE8/12 / RB712A / DX42S, GB40 / NX40/45 / NSE8/12 DX64S radars
• Sitex: MDS-1, 8, 12, NKE-1066 radars
• Techmarine: T-72.01, 72.02, 72.04 radars

Key Features

• Optimized for the latest radar models, ensuring broad compatibility
• Pre-drilled mounting holes for straightforward and secure installation
• No need to modify radar connectors, simplifying the setup process
• Constructed from top-tier marine-grade aluminum for maximum durability
• Supports additional accessories such as light bars on the rear of the mount

Technical Specifications

Specification	Details
Radar Type	Dome
Material	Aluminum
Height	5.91" (150mm)
Mounting Type	Forward leaning - 33°
Type	Forward Leaning Mount
Box Dimensions	8"H x 10"W x 12"L
Weight	4.05 lbs
UPC	5060114797741

What's Included

• PowerTower® Mount
• Mounting Hardware (excludes screws/bolts)
• Comprehensive Installation Manual

*Sold individually

Additional Resources

For detailed installation instructions, refer to our Quick Guide (PDF).
