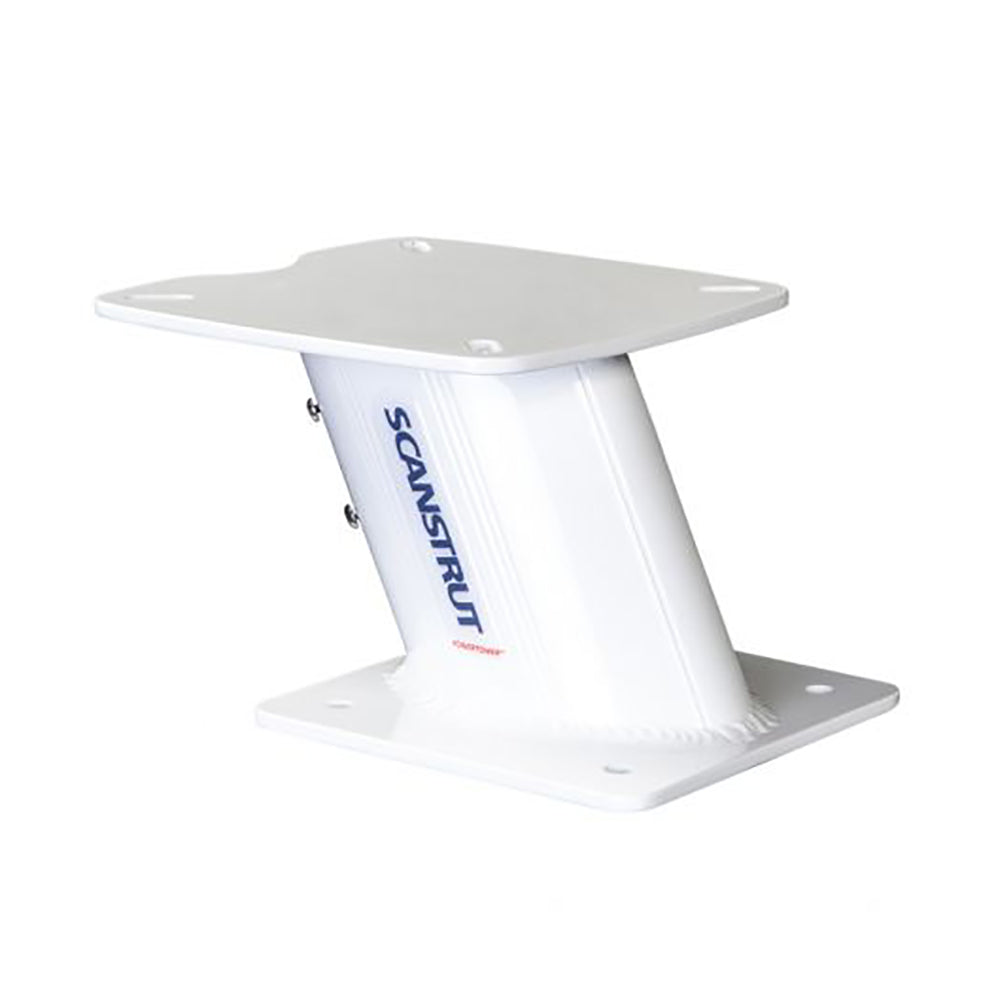

Scanstrut APT-150-02 - Aluminum PowerTower Radar Mount - 6" Aft Leaning

The Aluminum PowerTower® Radar Mount - 6" Aft Leaning (APT-150-02) is the ultimate solution for marine enthusiasts seeking enhanced radar performance and durability. Crafted from premium marine-grade aluminum, this robust mount ensures your radar remains elevated and unobstructed, providing a clear and comprehensive view of the horizon for optimal navigation and safety on the water.

Superior Construction and Design

The Scanstrut Aluminum PowerTower® is engineered as a single 'monocoque' structure with no joints, offering unmatched strength and longevity. Its sleek surface finish not only enhances aesthetic appeal but also withstands the harsh marine environment, ensuring reliable performance season after season.

Optimized Radar Performance

Designed to install seamlessly on your powerboat's roof, T-top, flybridge, or radar arch, the PowerTower® elevates your antenna above all obstructions. This strategic placement maximizes radar efficiency, delivering the clearest possible view and improving detection capabilities in all weather conditions.

Wide Compatibility

The PowerTower® is compatible with a vast array of modern radar systems, making it a versatile choice for any marine setup. Below is a comprehensive list of supported radar models:

• Furuno: 1621, 1622, 1623, 1715, 1724, 1734, 1815, 1824, 1832, 1834, 1835, DRS2D, DRS2D-NXT, DRS42DL, DRS42DL+, DRS4D/DRSD4D-NXT, DRS4W, NavNet (18" and 24") radars
• Humminbird: AS 21 RD4KW radar
• Intellian: i1 radars
• Interphase: Mini RE-1, RE-8 radars
• JRC: 1000, 1000mk2, 1066, 1500, 1500mk2, 1800, 2000, JMA 2343 / 5104 (Radome: NKE-2042) radars
• Koden: 2kW 12" radar
• KVH: TracVision M1 and TV1 radars
• Lowrance: 3G/4G, LRA-1800, RB714A, DX42, LRA-2400 HD radars
• Majestic: SATMAR32 radar
• Navman: 8000 Series (8084 and 8120) 18" radars
• Nobletec: 2kW - 20" radars
• Northstar: M Series 18" and 24" 8000i radars
• Raymarine: 33STV radars
• Seiwa: SWR-1, 8, 9 radars
• Simrad: 3G/4G, GB40, NX40/45, NSE8/12, RB712A, DX42S, DX64S radars
• Sitex: MDS-1, 8, 12, NKE-1066 radars
• Techmarine: T-72.01, 72.02, 72.04 Radars

Key Features

• Designed to accommodate the latest radar models for future-proof installation
• Pre-drilled mounting holes ensure a straight and secure fastening of the radar
• No modification required for radar connectors, simplifying the installation process
• Constructed from top-quality marine-grade aluminum for enhanced durability
• Compatible with a range of accessory light bars, which can be conveniently bolted to the back of the PowerTower®

Technical Specifications

Radar Type	Dome
Material	Aluminum
Height	5.91" (150mm)
Mounting Type	Aft leaning - 25°

What's Included

• Aluminum PowerTower® Mount
• Mounting hardware (excluding screws/bolts)
• Comprehensive installation manual

Note: Sold as an individual unit.

Additional Specifications

Construction	Aluminum
Height	5.91"
Type	Aft Leaning Mount
Box Dimensions	7"H x 10"W x 11"L
Weight	3.9 lbs
UPC	5060114797710

Download the Quick Guide (PDF)
