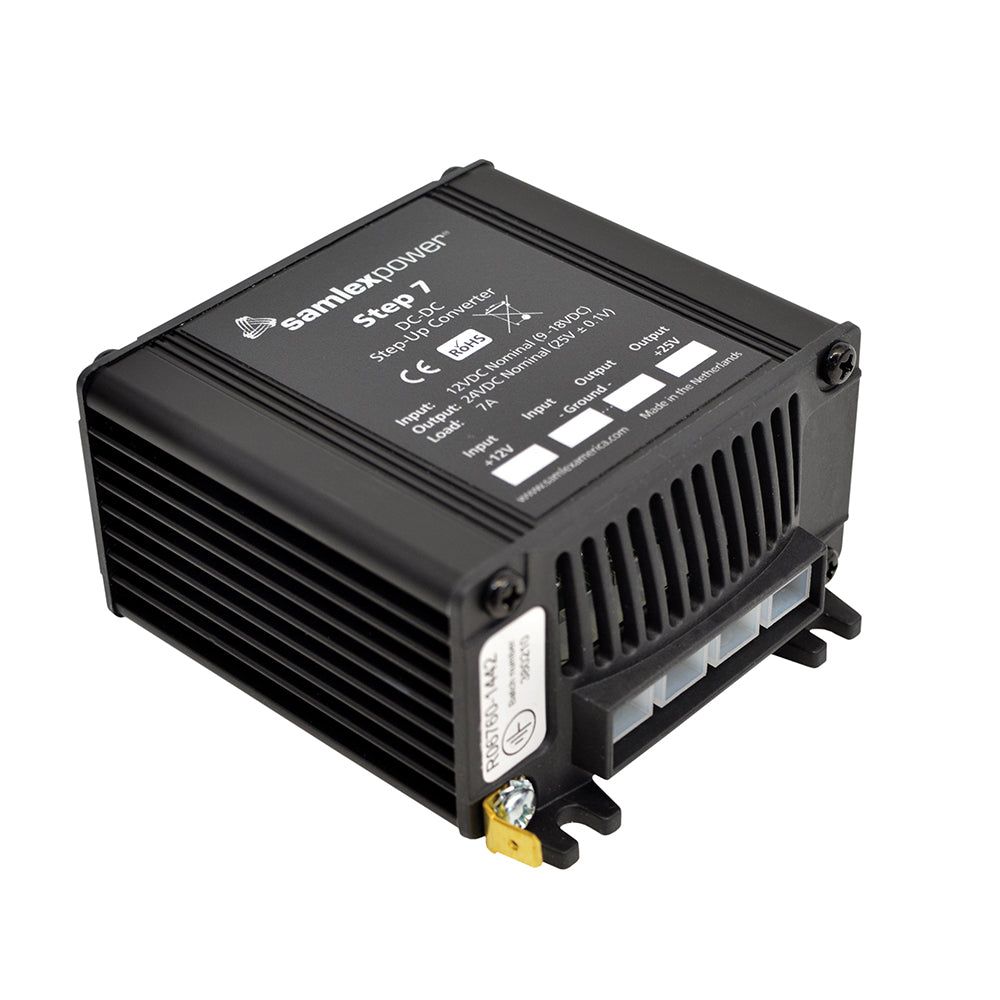

Samlex Step-Up DC-DC Converter - 7A - 9-18V Input - 24V Output

Upgrade your marine power system with our high-performance Step-Up DC-DC Converter. Engineered for boating and marine applications, this reliable device ensures your electrical equipment receives a stable 24V output from a versatile 9-18V input, delivering up to 7 Amps of power.

Key Features

• Boosts 12V DC to 24V DC efficiently at 7 Amps, ideal for marine electronics
• Switch Mode design for compact size and high efficiency
• CE approved for compliance with European safety standards
• High efficiency minimizes power loss, essential for marine battery systems
• Over-current protection safeguards your devices against excessive current
• Comprehensive protection including over-voltage and reverse polarity
• Easy installation with 6.3 mm push-on flat pin connectors

Technical Specifications

Input Voltage	9-18 VDC
Output Voltage	24 VDC
Current Capacity	7 Amps
Weight	0.8 lbs (0.36 kg)
Dimensions	5 x 3.5 x 2 in (12.7 x 8.9 x 5.1 cm)
Safety Certification	CE
Warranty	2 Year Limited

Ideal Applications

• Marine and boating electrical systems
• Industrial marine equipment
• Commercial vessels
• OEM installations for boats and yachts
• Recreational boats and watercraft

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
