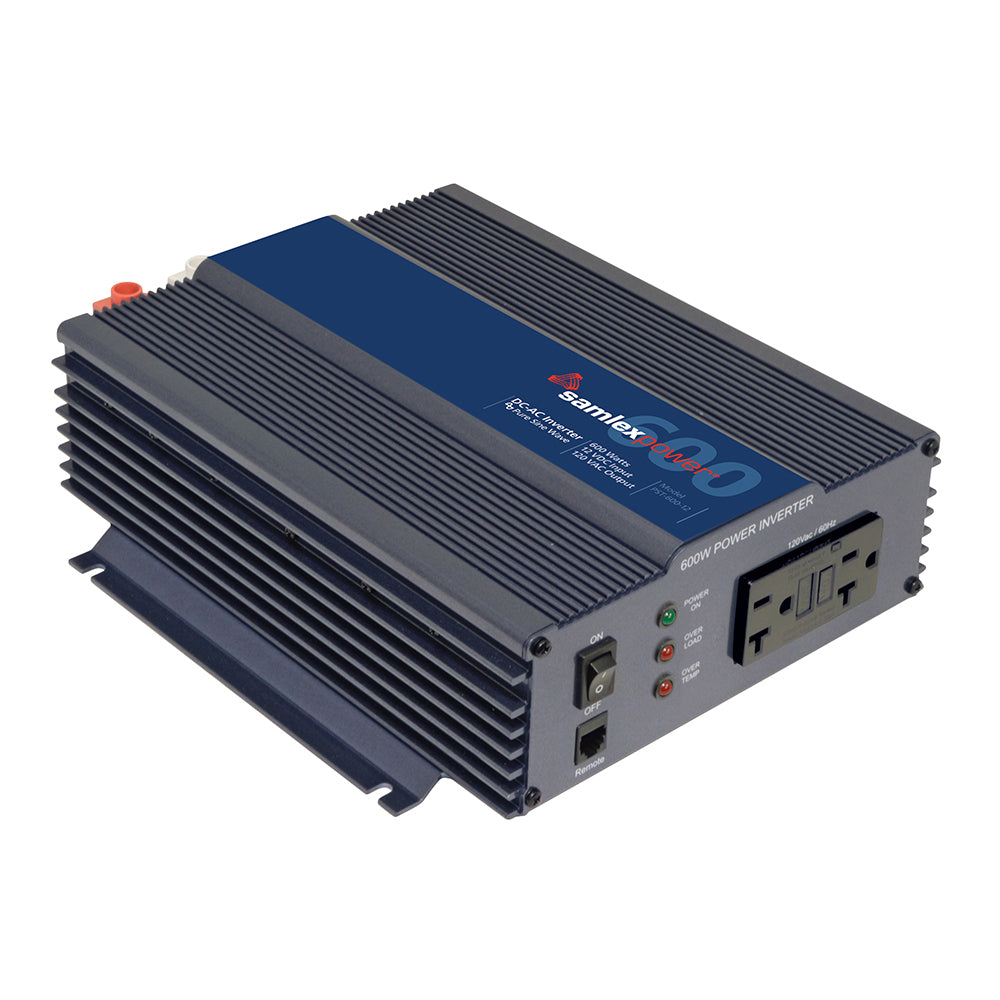

Samlex 600W Pure Sine Wave Inverter - 12V

The 600W Pure Sine Wave Inverter - 12V PST Series is engineered to provide reliable and efficient AC power tailored for marine and boating applications. Transforming 12V DC to 600 Watts of pure sine-wave 120V AC power at 60 Hz, this inverter ensures your onboard electronics operate smoothly and safely, whether you’re cruising the open seas or anchored at a marina.

Key Features

• High Efficiency: Maximizes power conversion to ensure minimal energy loss, keeping your systems running longer.
• Temperature Controlled Cooling Fan: Adjusts automatically to reduce energy consumption and maintain optimal operating temperatures.
• Wide Operating DC Input Range: Compatible with 10.7 - 16.5 VDC, accommodating various marine battery setups.
• Commercial Grade Design: Built to handle heavy-duty loads and extended periods of continuous operation, perfect for emergency backup power.
• Universal Protection Circuit (UPC): Protects against low voltage, over voltage, over temperature, overload, and short circuits, ensuring the safety of your equipment.
• Low Idle Power Draw: Consumes less than 0.5 Amps when idle, preserving your battery life for longer voyages.
• Dual GFCI Protected AC Outlets: Two NEMA-20R GFCI duplex outlets on the front panel provide safe and convenient access to AC power.
• Optional Remote Control: (Sold separately, Model RC-15A) Allows you to control the inverter from a distance, adding convenience aboard your vessel.
• Pin-Type Battery Cable Lugs: Ensures secure and reliable connections to your boat’s battery system.
• Safety Certified: Compliant with UL standards and FCC regulations, offering peace of mind on the water.

Technical Specifications

Parameter	Details
Input Voltage	12 VDC
Output Voltage	120 VAC
Continuous Power	600 Watts
Surge Power	1000 Watts
Waveform	Pure Sine Wave
Operating DC Input Range	10.7 - 16.5 VDC
Idle Power Draw	Less than 0.5 Amps
AC Outlets	2 Duplex GFCI Protected
Dimensions	9.37 x 10.87 x 3.23 inches (238 x 276.2 x 82 mm)
Weight	5.9 lbs (2.7 kg)
UPC	622988072154
Certification	ETL to UL Standard, FCC Compliant
Warranty	2 Year Limited

Ideal For Marine Applications

• Service Vehicles
• Mobile Offices on Boats
• Recreational Vehicles and Camping
• Boating Electronics: TV, VCR, Video Games
• Computers and Printers on Board
• Telecommunication Equipment
• Field Work and Construction Sites at Sea
• Solar Power Systems for Boats
• Emergency Backup Power for Marine Systems

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
