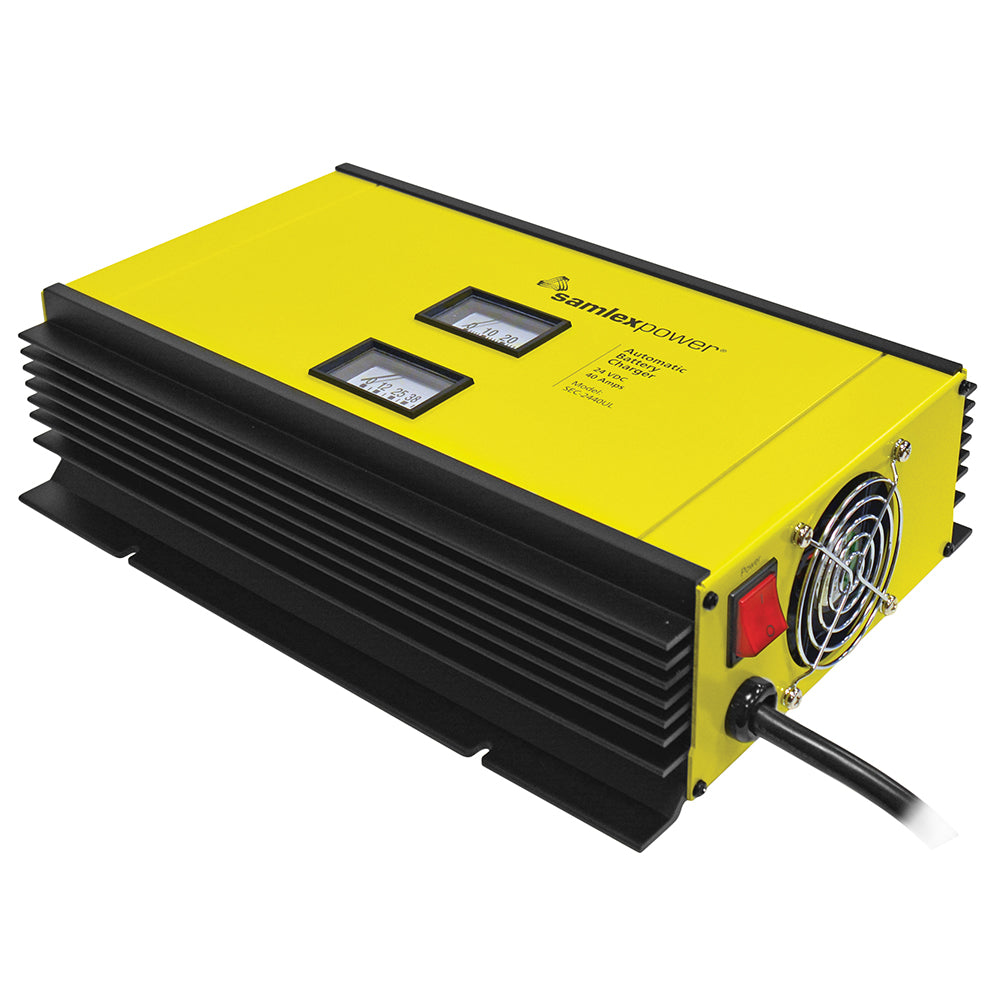

Samlex 40A Battery Charger - 24V - 2-Bank - 3-Stage w/Dip Switch Lugs - Includes Temp Sensor

This robust 24V, 40A Battery Charger is meticulously designed for marine and boating enthusiasts, ensuring reliable and efficient charging for your vessel's lead-acid battery systems. With advanced three-stage charging and customizable settings, it caters to a variety of battery types, providing optimal performance even in demanding marine environments.

Key Features

• 🎯 High Efficiency: Utilizes switch mode technology for lightweight, quiet, and energy-efficient operation, ideal for the confined spaces of marine vessels.
• 🔋 Universal Compatibility: Automatically adapts to all lead-acid battery types, including Flooded, Absorbed Glass Mat (AGM), and Gel Cell batteries, ensuring versatile use across different marine applications.
• ⚡ Dual Bank Charging: Simultaneously charges two separate battery banks without the need for an isolator, perfect for managing multiple battery systems on your boat.
• 🔌 Multi-Functional Power Supply: Can be used as a DC power supply or in conjunction with a battery to function as a DC UPS, providing flexibility in power management onboard.
• 🌍 Configurable AC Input: Easily switch between 120V or 230V AC input with selectable 50/60 Hz to accommodate different power sources while at port or cruising internationally.
• 🔄 Adjustable Charging Stages: Select between 2 or 3-stage charging via DIP switch for rapid and safe charging, whether your batteries are standalone or under load.
• 🔽 Half Power Mode: Reduces the maximum charging current to half its rated capacity, allowing for safe charging of lower capacity batteries commonly used in smaller marine setups.
• 📊 Real-Time Monitoring: Equipped with a voltmeter and ammeter for precise monitoring of battery status and charging progress.
• 🌬️ Intelligent Cooling: Features fan cooling that adjusts based on output current, ensuring optimal temperature management in various operating conditions.
• 🛡️ Comprehensive Protections: Includes safeguards against short circuits, overloads, reverse battery connections, and over-temperature scenarios, enhancing safety on board.
• 🌡️ Temperature Sensor Included: Prevents undercharging or overcharging by adapting to temperature variations, crucial for maintaining battery health in fluctuating marine climates.

Technical Specifications

Parameter	Details
Input Voltage	120 VAC or 230 VAC
Output Voltage	24 VDC
Charging Current	40 Amps
Charging Banks	2
Remote Control	900-RC
Weight	9 lbs (4.1 kg)
Dimensions	15 x 9.61 x 3.82 inches (381 x 244 x 97 mm)
Safety Certifications	UL-1564, FCC Part 15(B) Class B
Warranty	2 Year Limited
UPC	622988083075

Ideal Applications

• 🚤 Automotive: Perfect for boats, yachts, and other marine vehicles requiring reliable battery charging solutions.
• 🏕️ Recreational Vehicles: Ensures your RV's battery systems remain charged during extended trips and off-grid adventures.
• ⚓ Marine: Tailored for marine environments, providing consistent power to onboard electrical systems.
• 📡 Communications Sites: Maintains power supply for communication equipment in remote or maritime locations.
• 🔋 Battery Back-Up Systems: Enhances the reliability of backup power systems, crucial for safety and operational continuity.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit P65Warnings.ca.gov.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
