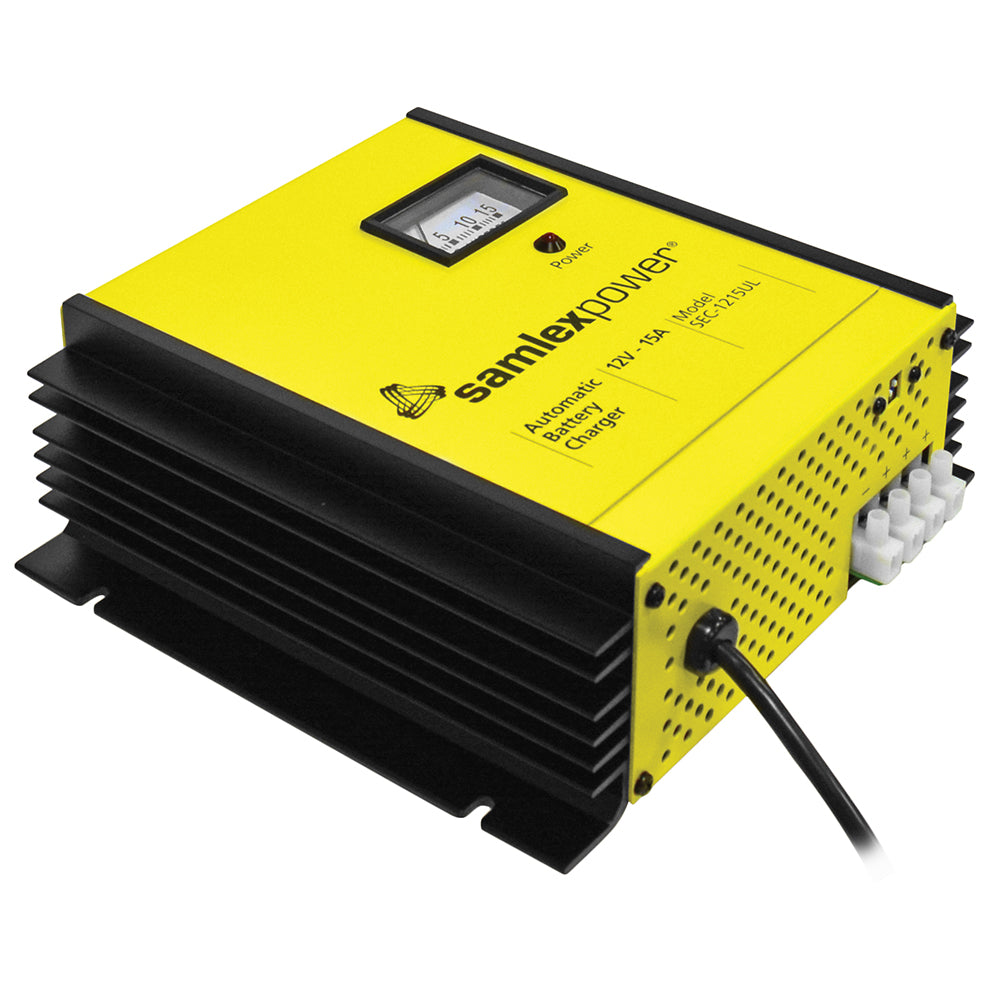

Samlex 15A Battery Charger - 12V - 3-Bank - 3-Stage w/Dip Switch Lugs

Ensure your marine adventures are powered reliably with our 15A Battery Charger. Designed specifically for the demanding environments of boating and marine applications, this robust charger delivers efficient and safe charging for all types of 12V lead-acid batteries, including Flooded, AGM, and Gel Cell varieties.

Key Features

• High Efficiency for optimal power usage
• Commercial Grade durability built to withstand marine conditions
• Lightweight and compact design for easy installation
• Quiet Operation to maintain a peaceful onboard environment
• Proven Industry Design with thousands of units successfully deployed
• Selectable 2 or 3 Stage Charging to match your battery needs
• Dual Input Voltage: 120 VAC/60 Hz or 230 VAC/50 Hz
• Integrated Voltage Meter Display with Ammeter and LED Power Status
• Universal Protection Circuit (UPC) guarding against short circuits, overloads, and reverse polarity
• Charge up to 3 Separate Battery Banks Simultaneously without the need for an isolator
• Convertible to a DC Power Supply or DC UPS for versatile power management

Technical Specifications

Parameter	Details
Input Voltage	120 VAC 60 Hz or 230 VAC 50 Hz
Output Voltage	12 VDC
Charging Current	15 Amps
Charging Banks	3
Weight	4.4 lbs (1.96 kg)
Dimensions	8.5" x 8.5" x 3" (21.6 cm x 21.6 cm x 7.6 cm)
Safety Certifications	UL-1564, FCC Part 15(B) Class B
Warranty	2 Year Limited
UPC	622988083013

Applications

• Automotive Systems
• Recreational Vehicles (RVs)
• Marine and Boating Power Systems
• Communications Sites
• Battery Backup Systems

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
