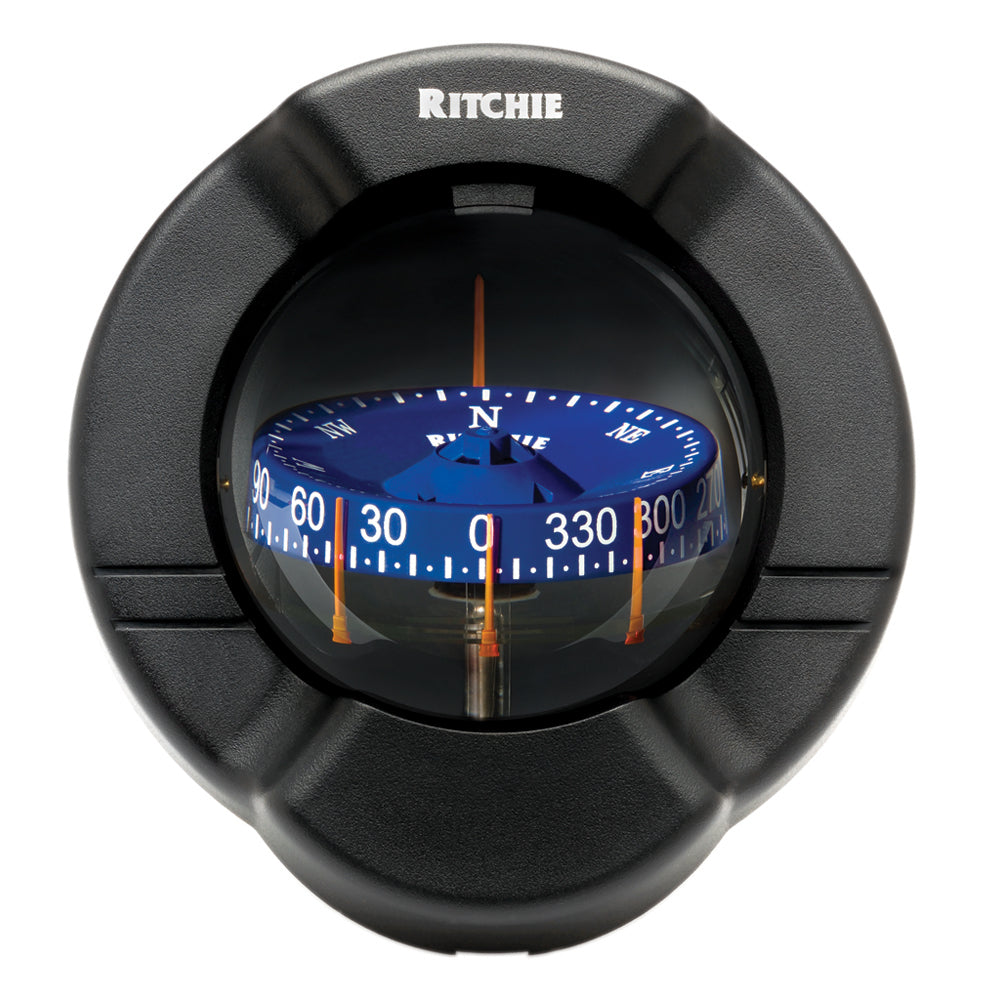

Ritchie SS-PR2 SuperSport Compass - Dash Mount - Black

The SuperSport SS-PR2 Compass is a high-precision navigational instrument engineered specifically for power boats ranging from 16 feet (4.88 meters) to 35 feet (10.66 meters) in length. Designed for reliability and accuracy, this compass ensures optimal navigation performance, whether you're cruising on calm waters or navigating through challenging marine environments.

Key Features

• 3-3/4" (9.35 cm) CombiDial for clear and easy readability
• Compensation Module Included (SR-CM2) to maintain accurate readings despite magnetic interference

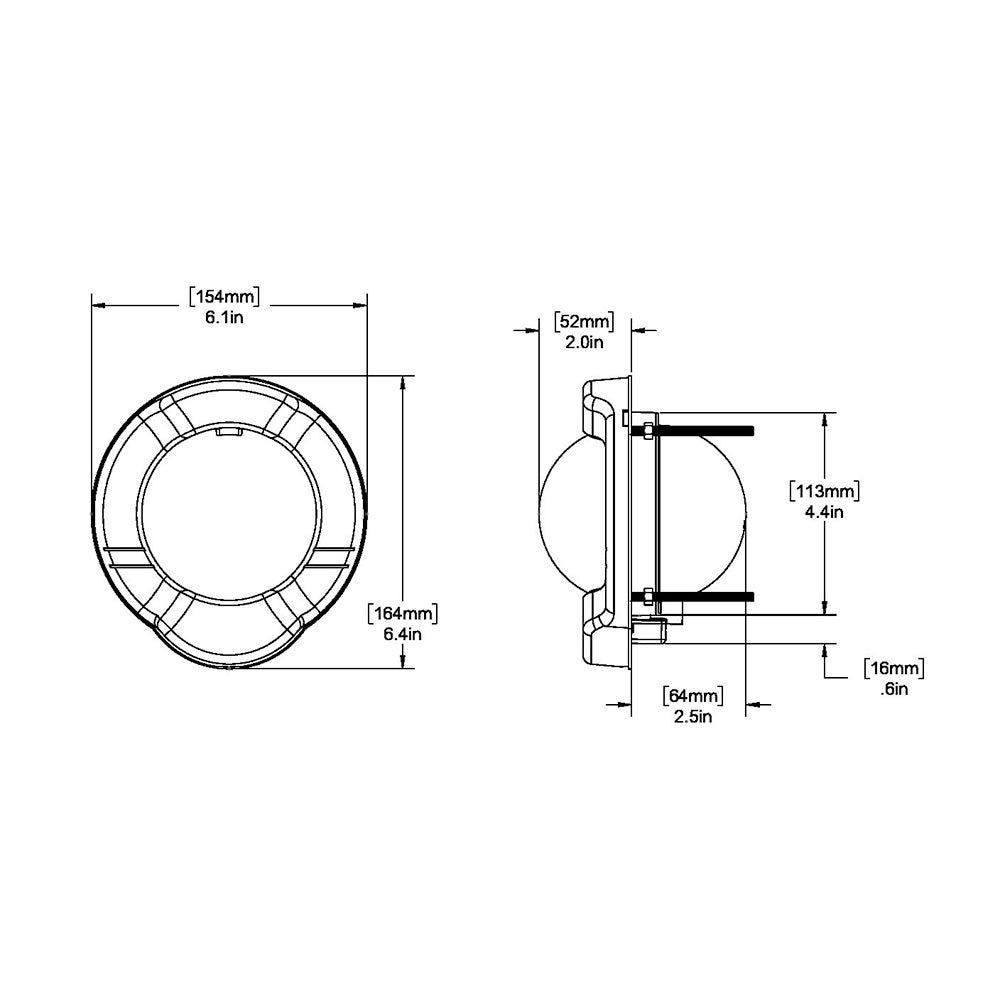

• Versatile Mounting Options: Compatible with 4 5/8″ (118 mm) to 4 13/16″ (122 mm) mounting holes
• Adjustable Vertical Mounting Angle: Allows up to 40 degrees for optimal placement
• Blue LED Night Lighting: Enhances visibility in low-light conditions
• Adapter Plate Available: Easily retrofit existing HV-76 and HV-77 installations
  • Adapter Plate: BK-0034-AP
• Protective Front Cover Included: (BK-19-C) to safeguard the compass from environmental elements
• Exclusive 5-Year Ritchie Warranty: Ensures long-term reliability and support

Specifications

Shipping Information

Approx. Shipping Weight: 2 lb. (907g)

Additional Notes

Standard lighting supports 12/24 Volt systems, with a 32 Volt option available upon request.

Warranty

The SuperSport SS-PR2 Compass comes with an exclusive 5-Year Ritchie Warranty, providing assurance of its durability and performance.

Accessories

• Adapter Plate: BK-0034-AP – for retrofitting HV-76 and HV-77 installations
• Protective Front Cover: BK-19-C – safeguards the compass display

Product Manuals

• Quick Guide (PDF)
• Owner's Manual (PDF)
