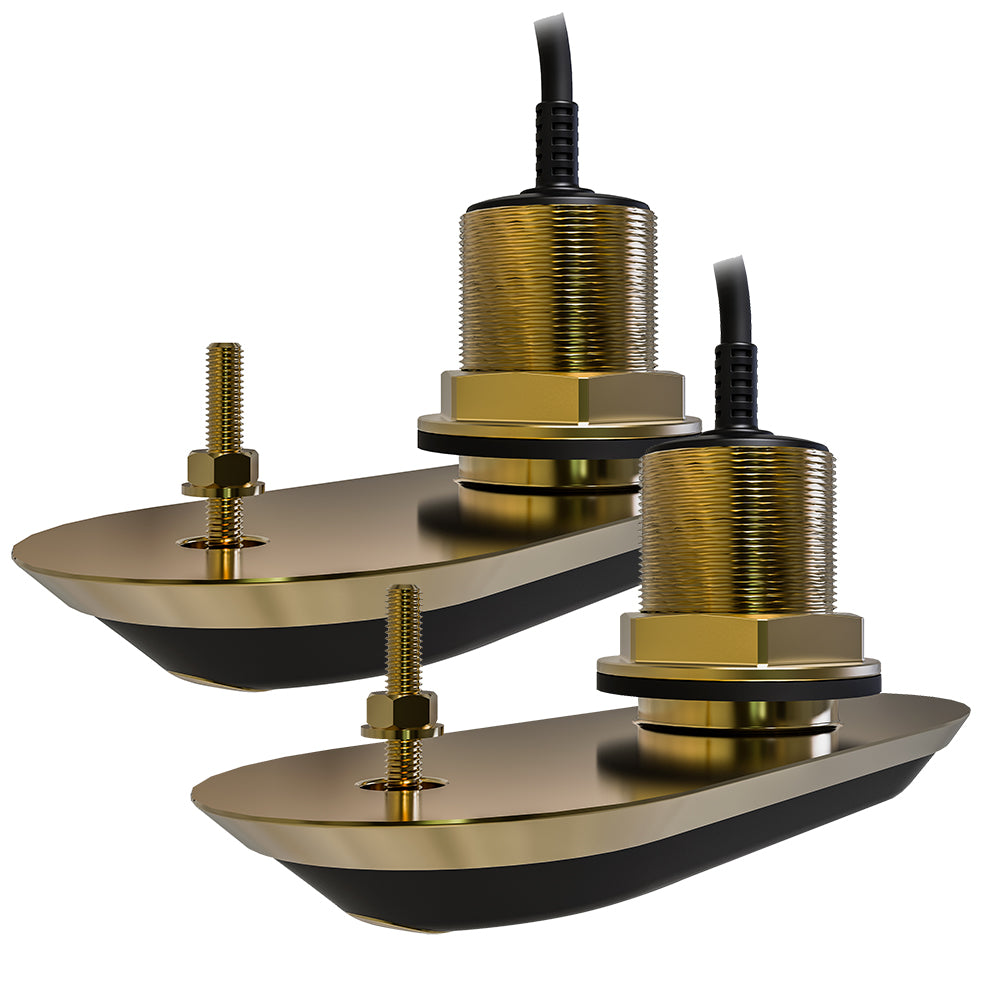

Raymarine RV-212 RealVision 3D Bronze Thru-Hull Transducer Pair Pack - 12 - 8M Cable Y-Cable

The RealVision 3D™ Bronze Thru-Hull Transducer Pair Pack is the ultimate solution for boaters seeking unparalleled underwater clarity and precision. Engineered for both inboard and outboard vessels, this advanced transducer system enhances your sonar experience, allowing you to effortlessly detect structures and locate fish with exceptional detail.

Unmatched Sonar Technology

The RV-212 Bronze Through Hull Transducer System boasts a 4-channel Wide Spectrum CHIRP technology, integrating DownVision™, SideVision™, high-frequency CHIRP fish targeting, and RealVision 3D™ sonar capabilities. This combination delivers lifelike sonar imagery, providing you with a comprehensive view of your underwater environment.

Stabilized and Reliable Performance

Equipped with a built-in Attitude and Heading Reference System (AHRS), the RV-212 system ensures stable sonar images by automatically compensating for vessel movement. Whether navigating through waves, swells, or maneuvering in tight spots, enjoy crystal-clear sonar performance under all conditions. Additionally, the system includes a fast-response water temperature sensor for accurate and quick readings.

Durable and Efficient Design

Raymarine’s RV-212 Bronze Transducer system features rugged cast-bronze thru-hull bodies, ideal for both fiberglass and wooden hulls. The pair pack includes RealVision 3D transducers with internal offsets suitable for hull deadrise angles ranging from 1° to 12°, eliminating the need for fairing blocks. Its low-profile design minimizes drag and cavitation, ensuring smooth operation even on trailered boats.

Comprehensive Underwater Coverage

Each transducer is strategically designed to maximize underwater coverage. The port transducer handles port and downward sonar, while the starboard transducer manages starboard and downward sonar, providing a full 180° view beneath your vessel. This ensures thorough detection of underwater features, even on boats with deep keels or other protrusions.

Included Components

• RV-212P Bronze Port Transducer with 2M Cable
• RV-212S Bronze Starboard Transducer with 2M Cable
• RealVision 3D Transducer Y-Cable
• RealVision 3D 8M (26') Transducer Extension Cable
• Anti-Rotation Bolt Kit
• Installation Instructions

Technical Specifications

Feature	Details
Mounting Style	Thru-Hull
Imaging Modes	Standard, Down, Side
CHIRP Frequency	High
Temperature Sensor	Included
Speed Sensor	Not Included
Cable Length	33' (10M)
Connector Pins	25
Box Dimensions	15" H x 17" W x 28" L
Weight	22.2 lbs
UPC	723193817032

Easy Installation

The RV-212 Bronze Transducer Pair Pack is designed for straightforward installation on a variety of hull types. The included anti-rotation bolt kit and detailed installation instructions ensure that you can set up your transducers quickly and securely, allowing you to get back on the water with minimal downtime.

Why Choose RealVision 3D™?

RealVision 3D™ sonar technology offers a three-dimensional view of your underwater surroundings, providing more information than traditional sonar systems. This enhanced visibility helps you make informed decisions while fishing or navigating, making the RV-212 system an essential tool for serious boaters and anglers alike.
