Raymarine Evolution EV-150 Hydraulic Autopilot System Pack

The Evolution EV-150 Hydraulic Autopilot System Pack offers a complete autopilot solution tailored for a wide range of fishing and cruising powerboats equipped with hydraulic steering. This all-in-one kit ensures effortless installation and dependable performance, allowing you to navigate confidently under various sea conditions.

Key Features

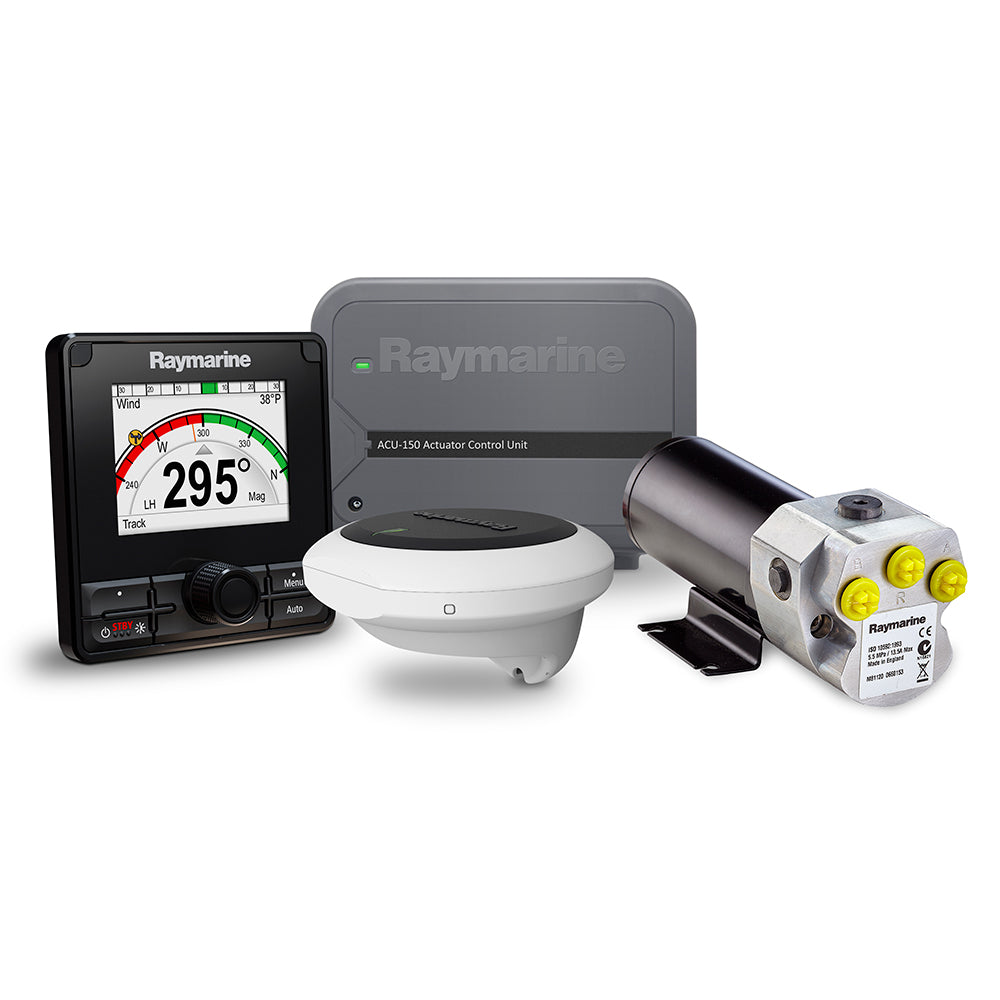

• Comprehensive Autopilot Kit: Includes the p70Rs control head, EV1 sensor core, ACU150 actuator control unit, Type 1 hydraulic pump, and an extensive cabling kit.
• Effortless Setup: Designed for simplicity, eliminating the need for complex installation and calibration processes.
• Adaptive Steering: Features a 9-axis EV sensor core that automatically adjusts to your vessel’s steering characteristics for precise course keeping.
• Hydro-Balance Technology: Compensates for hydraulic system elasticity, steering asymmetry, and torque steer, ensuring consistent on-course performance across all speeds.
• Built-In Trolling Patterns: Perfect for anglers, allowing the autopilot to maintain course while you prepare bait, set lines, and adjust your spread.
• TrackIQ Algorithms: Delivers tighter track-keeping, faster track acquisition, and stabilized GPS navigation data by incorporating vessel pitch, roll, yaw, and heave.

Advanced Technologies

Hydro-Balance Technology: Raymarine’s patented Hydro-Balance system ensures superior autopilot performance by automatically balancing hydraulic systems. This technology is ideal for hydraulically steered boats, especially those with outboard motors and rudder-reference-less systems.

TrackIQ Algorithms: Evolution TrackIQ enhances tracking precision and stability by utilizing real-time vessel movement data. This results in optimized waypoint and route navigation, providing the best possible tracking performance.

Easy Installation

The Evolution EV-150 is engineered for straightforward installation on small to medium-sized hydraulically steered vessels. Compatible with steering ram capacities ranging from 4.9 cu. in. (80cc) to 14.0 cu. in. (230cc), this system operates exclusively on 12-volt DC electrical systems, ensuring seamless integration with your boat’s existing setup.

Included Components

• E70329 p70Rs Control Head
• E70096 EV-1 Sensor Core
• R70160 Evolution Cable Kit
• E70430 ACU-150 Actuator Control Unit
• M81120 Type 1 12V Hydraulic Pump

Specifications

Steering Type	Hydraulic
Box Dimensions	8" H x 17" W x 20" L
Weight	15.45 lbs
UPC	723193817629
