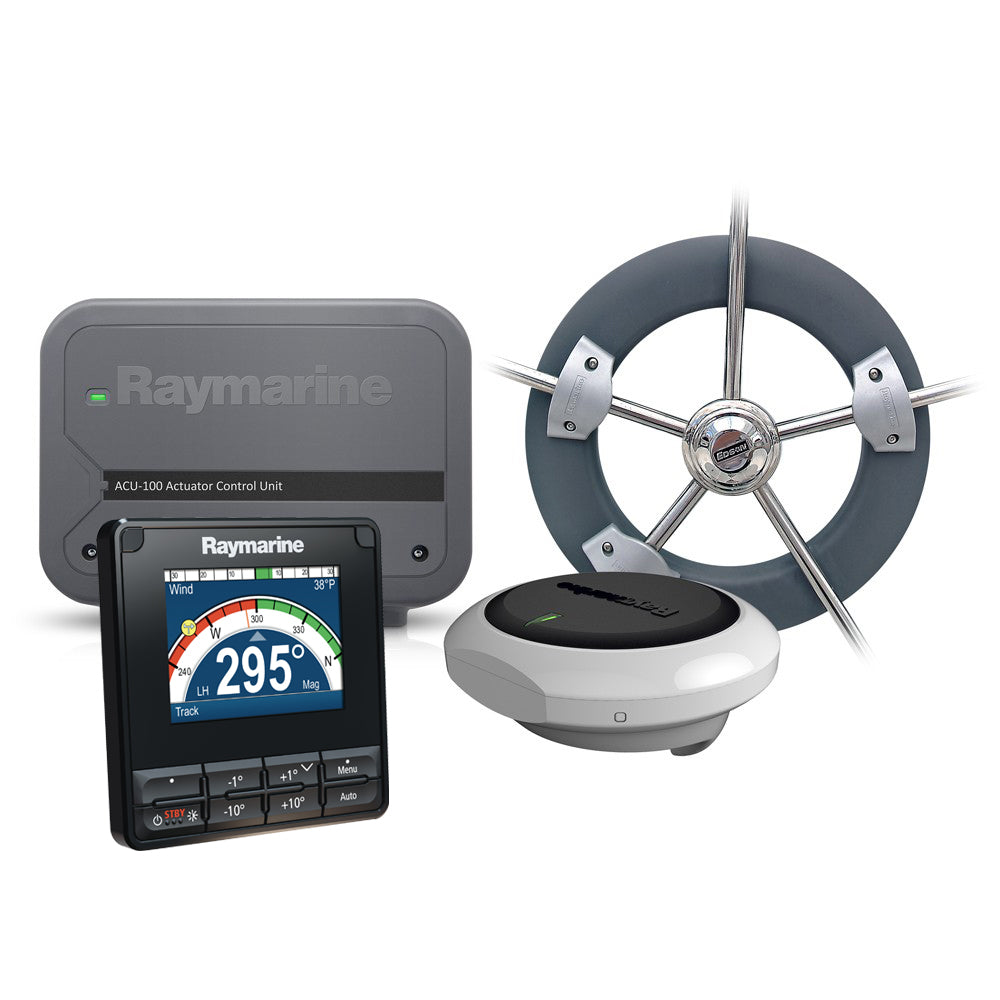

Raymarine EV-100 Wheel Evolution Autopilot

The EV-100 Wheel Evolution Autopilot is a state-of-the-art navigation system designed to enhance your sailing experience. Engineered for reliability and precision, this autopilot system ensures smooth and accurate steering, allowing you to focus on enjoying your time on the water.

Key Features

• Comprehensive autopilot solution packaged in a single unit
• Powered by Evolution Ai for unmatched performance
• No calibration necessary, ensuring hassle-free setup
• Effortless installation process
• Compatible with a wide range of sailboat wheel types
• Durable and simple clutch engagement mechanism
• Capable of handling vessels up to 16,500 lbs (7,500 kg)
• Designed for 12V DC power systems
• Includes the advanced p70s Autopilot Controller

Package Includes

• EV-1 Sensor Core
• p70s Autopilot Control Head
• ACU-100 Actuator Control Unit
• Wheel Drive Assembly
• Evolution Cabling Kit
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket

EV Sensor Core

At the heart of the Evolution system lies the intelligent EV Sensor Core, a 9-axis sensor that meticulously monitors vessel movement across all three dimensions. This cutting-edge sensor integrates advanced solid-state technology with the Evolution autopilot processor within a single, easy-to-install housing.

Designed for both above and below deck installation, the robust enclosure meets IPX6 and IPX7 waterproofing standards, ensuring durability and reliability even in harsh marine environments.

The EV-1 is compatible with Evolution's mechanical and hydraulic autopilot systems. Utilizing SeaTalk^ng networking, it allows a streamlined single-cable connection for both power and data to the Evolution ACU (Actuator Control Unit), supporting extended SeaTalk^ng and NMEA2000 networks.

Sensor Core Highlights:

• Accurate monitoring of heading, pitch, roll, and yaw for dynamic autopilot adjustments
• Flexible mounting options suitable for various deck configurations
• Seamless SeaTalk^ng connectivity with control head and ACU
• Solid-state sensors provide precision within 2 degrees under all conditions
• Reliable heading data integration with MARPA, radar overlays, and Raymarine displays

p70s Autopilot Control Head

The p70s Autopilot Control Head offers intuitive push-button operation tailored primarily for sailboats, providing sailors with easy and efficient control over their autopilot system.

Control Head Features:

• User-friendly LightHouse interface for quick and simple operation
• Wide 160° viewing angle for enhanced visibility
• Startup wizard for swift and easy pilot configuration
• Anti-reflective coating ensures clear visibility even in bright sunlight
• Energy-efficient design consuming only 132mA/1.6W, which is 27% less than the ST70 at x4 brightness
• Supports multiple autopilot modes including Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer
• Simple system and group dimming/illumination controls
• Compatible with multiple data sources for enhanced functionality
• Integrated SeaTalk^ng/NMEA2000 and SeaTalk1 connectivity without the need for bridging

ACU-100 Autopilot Control Unit

The ACU-100 Autopilot Control Unit is a rugged and reliable component that delivers consistent autopilot drive power. It also supplies power to the SeaTalk^ng bus, ensuring seamless communication across your navigation system. Select the ACU model that best fits your steering system type for optimal performance.

Evolution Cabling Kit

The Evolution Cabling Kit includes all necessary cables and connectors to ensure a smooth installation process:

• 1 x SeaTalk^ng Power Cable (0.4m)
• 1 x SeaTalk^ng Backbone Cable (5m)
• 1 x SeaTalk^ng Spur Cable (0.4m)
• 1 x SeaTalk^ng 5-way Connector Block
• 2 x SeaTalk^ng T-piece Connectors
• 2 x SeaTalk^ng Terminators

Specifications

Feature	Details
Steering Type	Wheel Pilot
Box Dimensions	15"H x 16"W x 27"L
Weight	15 lbs
UPC	723193854211

Additional Resources

Download Quick Guide (PDF)

Download Brochure (PDF)
