Raymarine EV-100 Power Evolution Autopilot

The EV-100 Power Evolution Autopilot is a comprehensive solution designed for small, hydraulically steered powerboats. It offers superior performance with Evolution AI technology, ensuring smooth and reliable navigation without the need for calibration. Ideal for 12V DC power systems, the EV-100 includes everything you need to enhance your boating experience with built-in trolling patterns and advanced monitoring capabilities.

Key Features

• Complete autopilot-in-a-box system for easy installation
• Includes a Type 0.5 Hydraulic Pump for efficient steering
• Powered by Evolution AI for enhanced performance
• No calibration required, saving you time and effort
• Optimized for small, hydraulically steered powerboats
• Built-in trolling patterns for versatile navigation
• Compatible with 12V DC power systems
• Comes with the p70Rs Autopilot Controller for seamless control

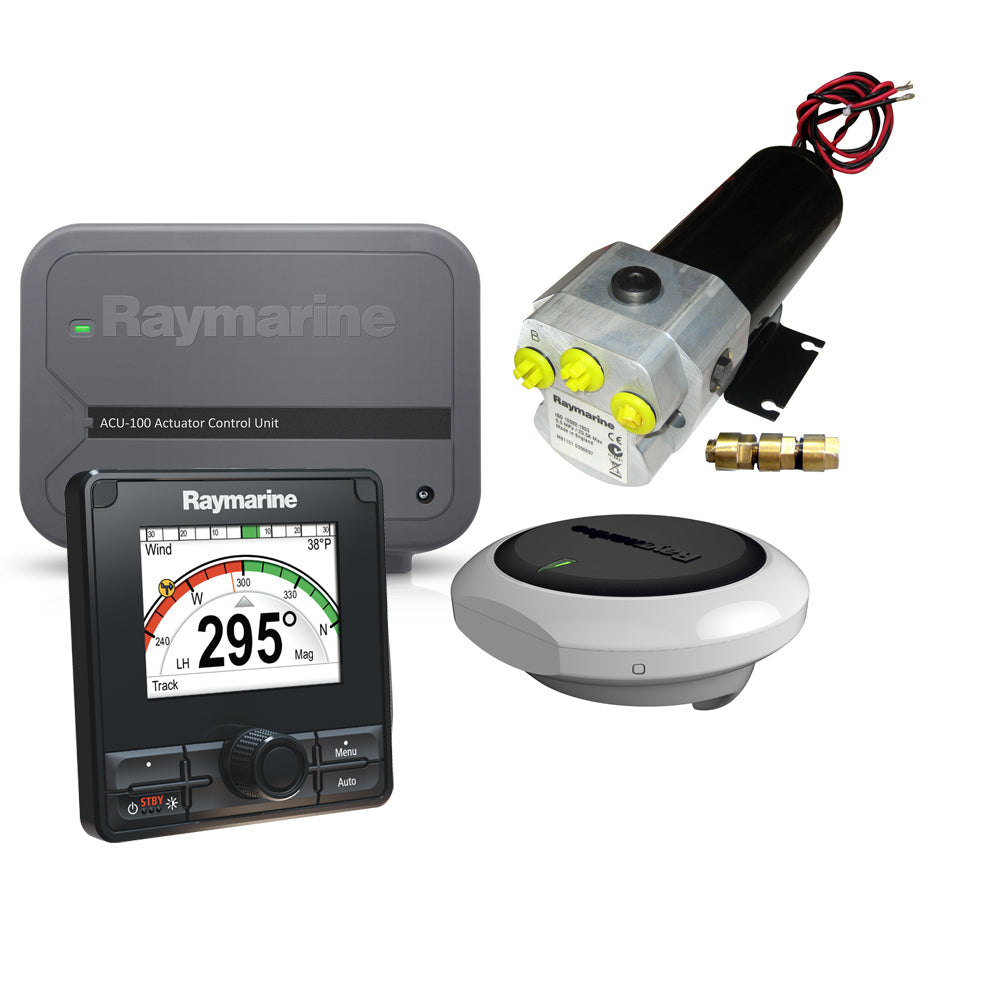

What's Included

• EV-1 Sensor Core
• p70Rs Autopilot Control Head
• ACU-100 Actuator Control Unit
• Type 0.5 Hydraulic Pump (12V)
• Evolution Cabling Kit
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket

EV Sensor Core

The heart of the Evolution system, the EV Sensor Core, features a 9-axis sensor that meticulously monitors vessel motion across all three dimensions. This intelligent sensor combines advanced solid-state technology with the Evolution autopilot processor in a single, easy-to-install housing. Whether mounted above or below decks, the rugged enclosure meets IPX6 and IPX7 waterproofing and submersion standards, ensuring durability in harsh marine environments.

Designed for Evolution mechanical and hydraulic autopilot systems, the EV-1 utilizes SeaTalk^ng networking for a single cable connection that handles both power and data to the Evolution ACU (Actuator Control Unit). It also supports extended SeaTalk^ng and NMEA2000 networks.

EV Sensor Core Features

• Precision monitoring of heading, pitch, roll, and yaw for instant autopilot adjustments based on sea conditions and vessel dynamics
• Flexible installation options, allowing mounting above or below deck
• Seamless SeaTalk^ng connectivity to the control head and ACU
• Solid-state sensor technology with dynamic accuracy within 2 degrees in all conditions
• Provides fast and reliable heading data compatible with MARPA, radar overlay, and heading modes on Raymarine multifunction displays

P70Rs Autopilot Control Head

The p70Rs Autopilot Control Head features a user-friendly rotary control knob and supports multiple autopilot modes, including Auto, Standby, trolling patterns, and track mode via GPS or chartplotter integration.

P70Rs Autopilot Control Head Features

• Intuitive LightHouse user interface for quick and easy operation
• Wide 160° viewing angles for enhanced visibility
• Startup wizard simplifies pilot configuration
• Anti-reflective coating improves visibility in bright sunlight
• Low power consumption—typically 132mA/1.6W, which is 27% less than the ST70 at x4 measured brightness
• Supports multiple autopilot modes: Auto, Standby, Pattern, Track, Wind Vane, Power Steer, and Jog Steer
• Simple system and group dimming/illumination options
• Compatibility with multiple data sources
• Connectivity options include SeaTalk^ng/NMEA2000 and SeaTalk1 without the need for bridging

ACU-100 Autopilot Control Unit

The ACU-100 Actuator Control Unit is a rugged component that delivers reliable autopilot drive power while also powering the SeaTalk^ng bus. It is compatible with various steering system types, ensuring flexibility and reliability in diverse marine settings.

Supported Drive Units

• Type 0.5 Hydraulic Pump included
• Compatible with 3.1" to 6.7" cubic inch rams

Evolution Cabling Kit

The Evolution Cabling Kit provides all necessary connections for seamless integration of your autopilot system:

• 1 x SeaTalk^ng Power Cable (0.4m)
• 1 x SeaTalk^ng Backbone Cable (5m)
• 1 x SeaTalk^ng Spur Cable (0.4m)
• 1 x SeaTalk^ng 5-way Connector Block
• 2 x SeaTalk^ng T-piece Connectors
• 2 x SeaTalk^ng Terminators

Specifications

Steering Type	Hydraulic
Box Dimensions	15" H x 17" W x 20" L
Weight	16.2 lbs
UPC	723193854198
